 Alpha-i Series Amplifier (Power Supply, Spindle , Servo) Cooling Fans

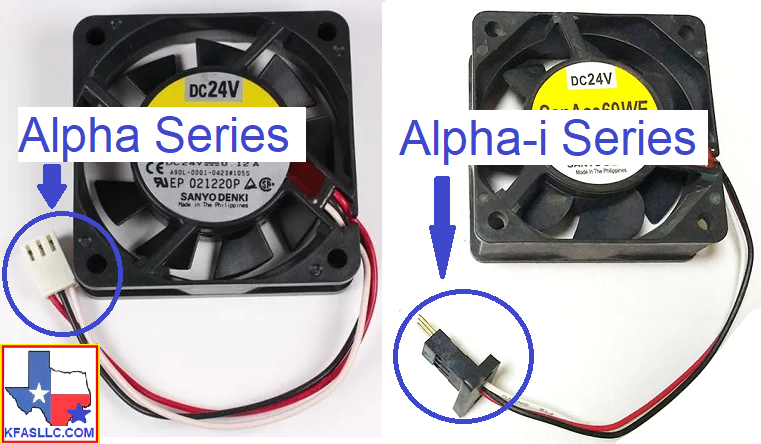

The following information is to help you identify the fan you need depending on the type of Alpha-i amplifier. While cooling fan sizes are similar between Alpha series (1990+ era) and Alpha-i series(2000+ era) units, the biggest difference is the type of connectors used. They can be easily distinguished as show below.

Please verify the information before placing order. Contact Fanuc America at 18883268287 to inquire.

About Cooling Fan Alarms

Power Supply Module (6115, 6110, 6140)

SV0443 SP9059 Alarm AL-02

A06B-6115-H003

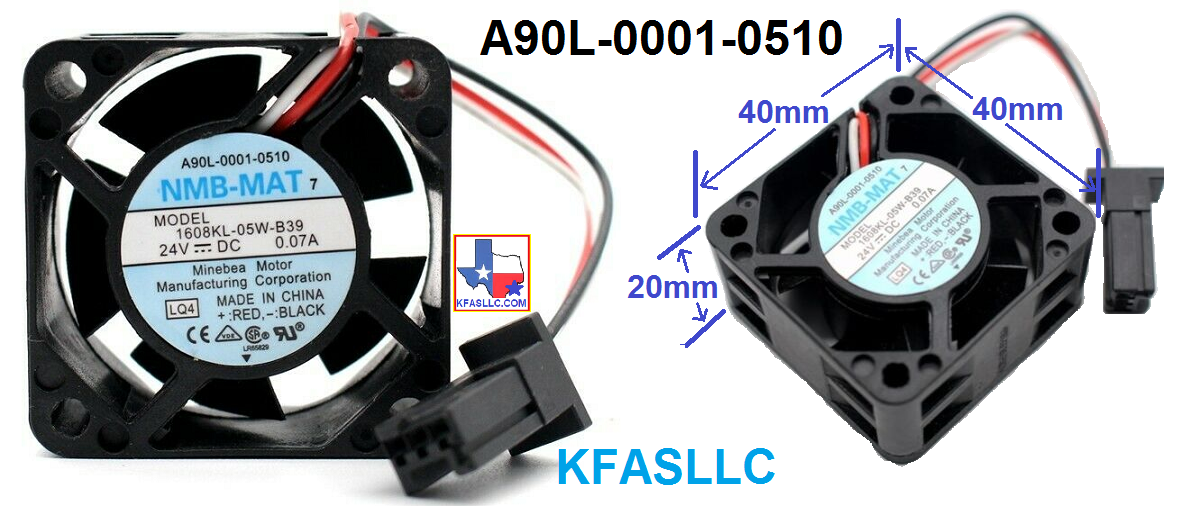

Internal: A90L-0001-0510
External: None

A06B-6115-H006
Internal: A90L-0001-0510
External: None

A06B-6110-H006

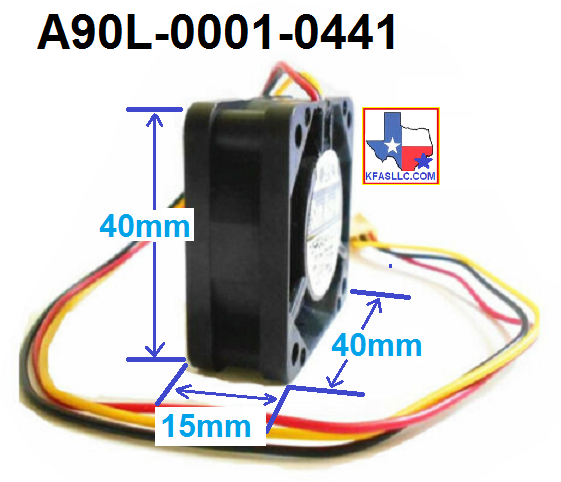

Internal: A90L-0001-0441
External: None

A06B-6110-H011
A06B-6140-H011
Internal: A90L-0001-0441

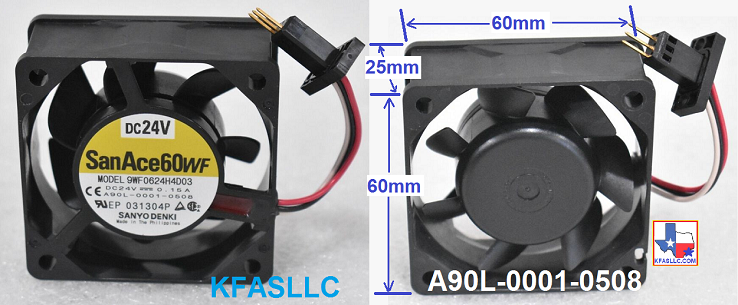

External: A90L-0001-0508

A06B-6110-H015
A06B-6140-H015
Internal: A90L-0001-0441
External: A90L-0001-0508

A06B-6110-H026
A06B-6140-H026
Internal: A90L-0001-0441

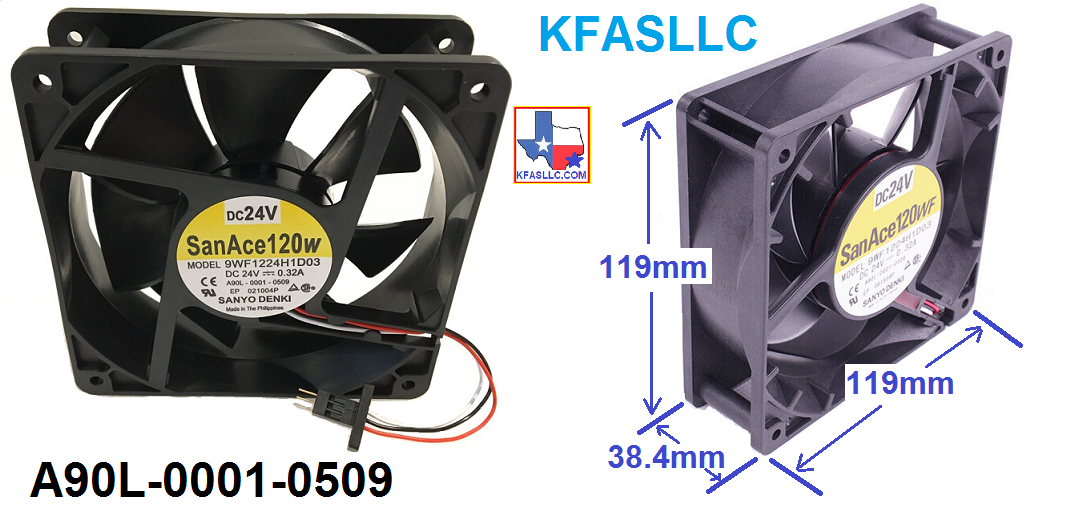

External: A90L-0001-0509

A06B-6110-H030
A06B-6140-H030
Internal: A90L-0001-0441
External: A90L-0001-0509

A06B-6110-H037
A06B-6140-H037
Internal: A90L-0001-0441
External: A90L-0001-0509

A06B-6110-H055
A06B-6140-H055

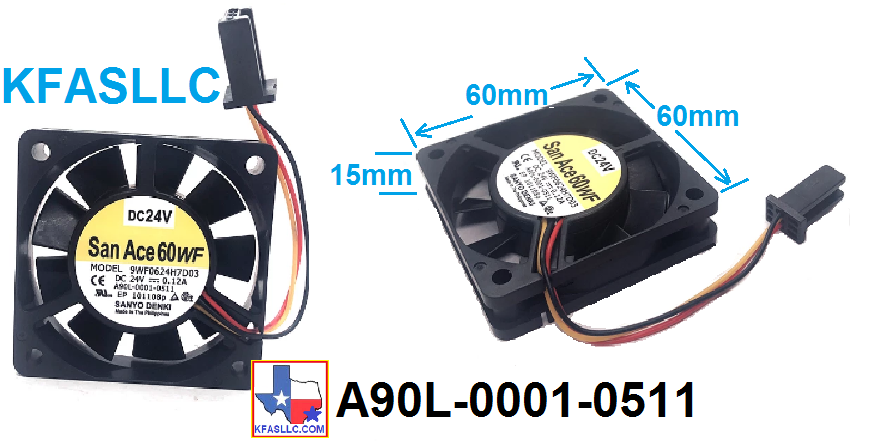

Internal: A90L-0001-0441 and A90L-0001-0511 (Qty 2)
External: A90L-0001-0509 (Qty 2)

Servo Amplifier Module (6114, 6117)

A06B-6114-H103
Internal: A90L-0001-0510
External: None

A06B-6114-H104
Internal: A90L-0001-0510
External: None

A06B-6114-H105
Internal: A90L-0001-0510
External: None

A06B-6114-H106
Internal: A90L-0001-0510

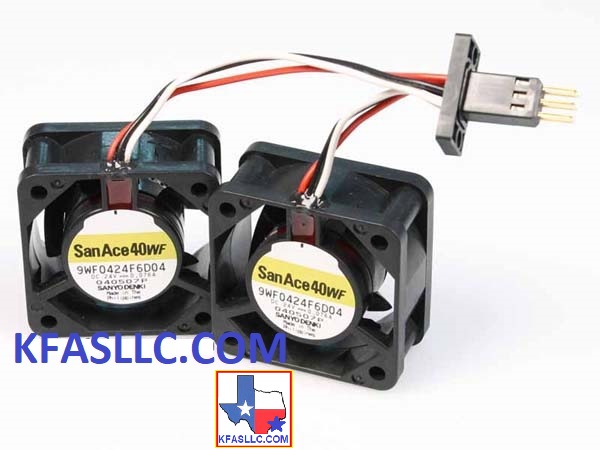

External: A90L-0001-0507#B

A06B-6114-H109
Internal: A90L-0001-0511
External: A90L-0001-0509

A06B-6114-H201
Internal: A90L-0001-0510
External: None

A06B-6114-H202
Internal: A90L-0001-0510
External: None

A06B-6114-H205
Internal:A90L-0001-0510
External: None

A06B-6114-H206
Internal: A90L-0001-0510
External: None

A06B-6114-H207
Internal: A90L-0001-0510

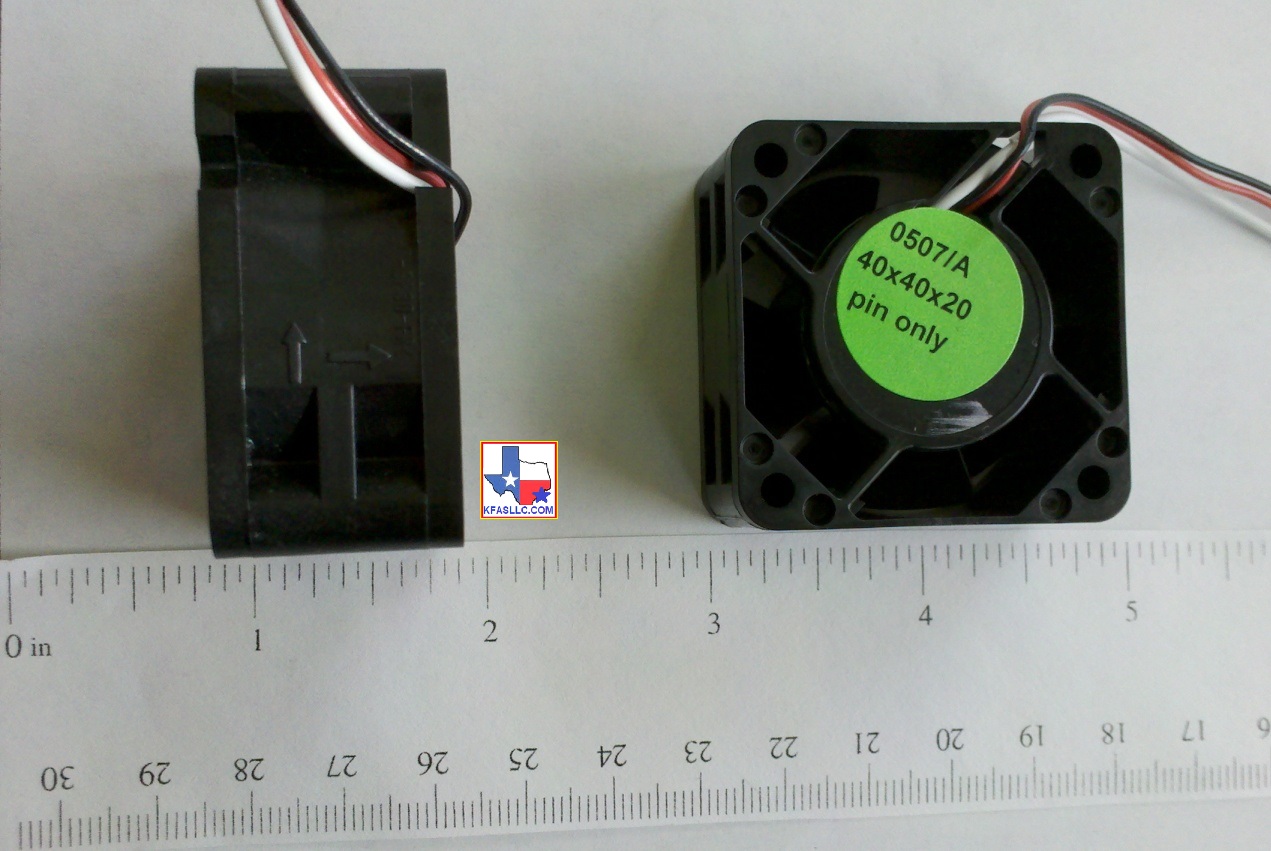

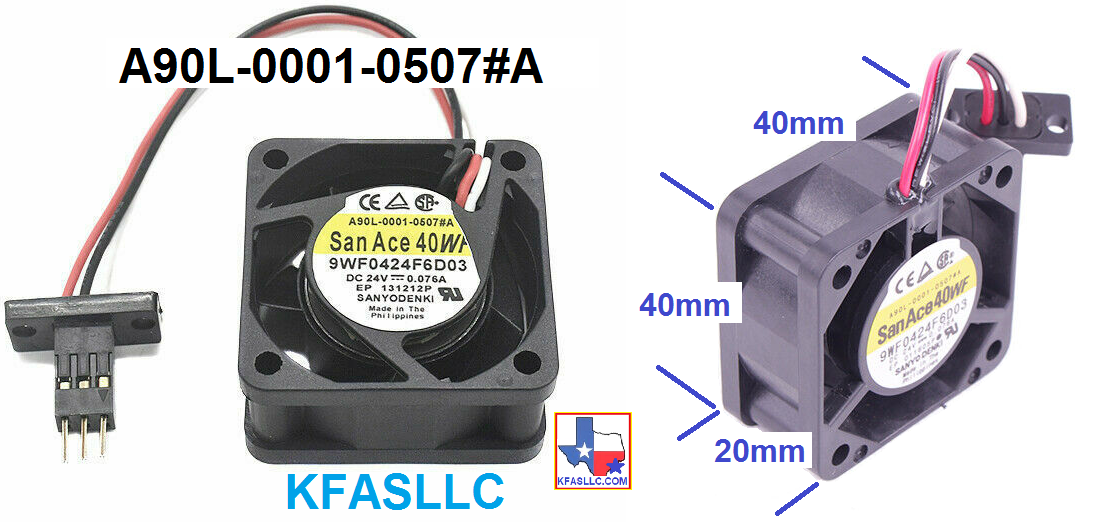

External: A90L-0001-0507#A

A06B-6114-H208
Internal: A90L-0001-0510
External: A90L-0001-0507#A

A06B-6114-H209
Internal: A90L-0001-0510
External: A90L-0001-0507#A

A06B-6114-H210
Internal: A90L-0001-0510
External: A90L-0001-0508

A06B-6114-H211
Internal: A90L-0001-0510
External: A90L-0001-0508

A06B-6114-H301
Internal: A90L-0001-0510
External: None

A06B-6114-H303
Internal: A90L-0001-0510
External: None

A06B-6114-H304
Internal: A90L-0001-0510
External: None

Spindle Amplifier Module (6111, 6112)

A06B-6111-H002#H550    A06B-6111-H002#H570
Internal: A90L-0001-0510
External: None

A06B-6111-H006#H550    A06B-6111-H006#H570
Internal: A90L-0001-0510
External: A90L-0001-0507#A

A06B-6111-H011#H550    A06B-6111-H011#H570
Internal: A90L-0001-0510
External: A90L-0001-0508

A06B-6111-H015#H550    A06B-6111-H015#H570
Internal: A90L-0001-0510
External: A90L-0001-0508

A06B-6111-H022#H550    A06B-6111-H022#H570
Internal: A90L-0001-0511
External: A90L-0001-0509

A06B-6111-H026#H550    A06B-6111-H026#H570
Internal: A90L-0001-0511
External: A90L-0001-0509

A06B-6111-H030#H550    A06B-6111-H030#H570
Internal: A90L-0001-0511
External: A90L-0001-0509

A06B-6111-H045#H550    A06B-6111-H045#H570
Internal: A90L-0001-0511 (Qty 2)
External: A90L-0001-0509 (Qty 2)

A06B-6111-H055#H550    A06B-6111-H055#H570
Internal: A90L-0001-0511 (Qty 2)
External: A90L-0001-0509 (Qty 2)
