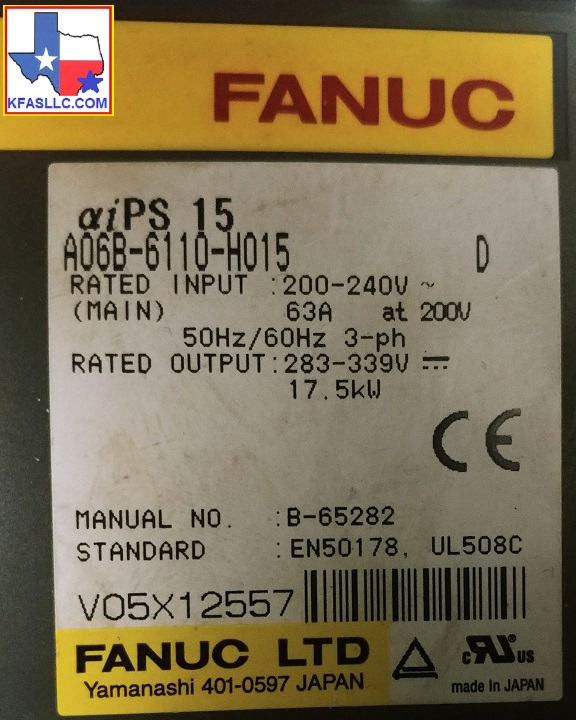

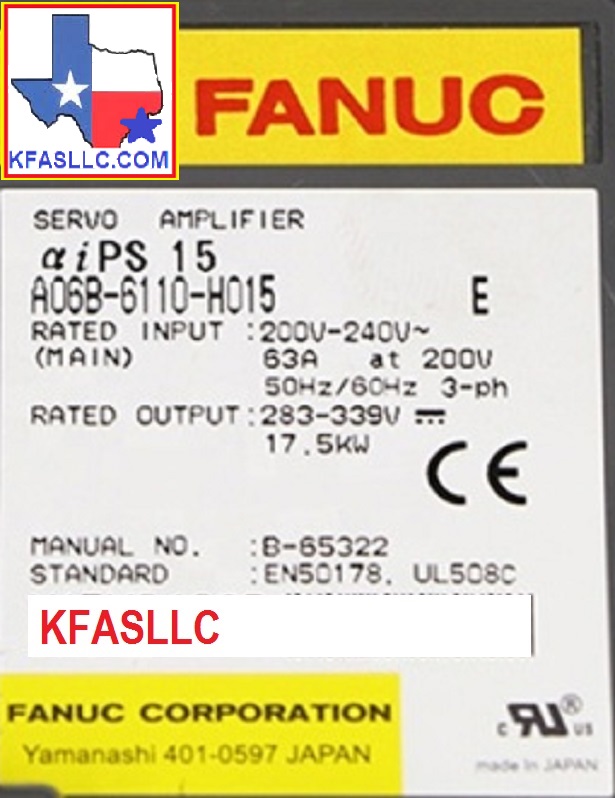

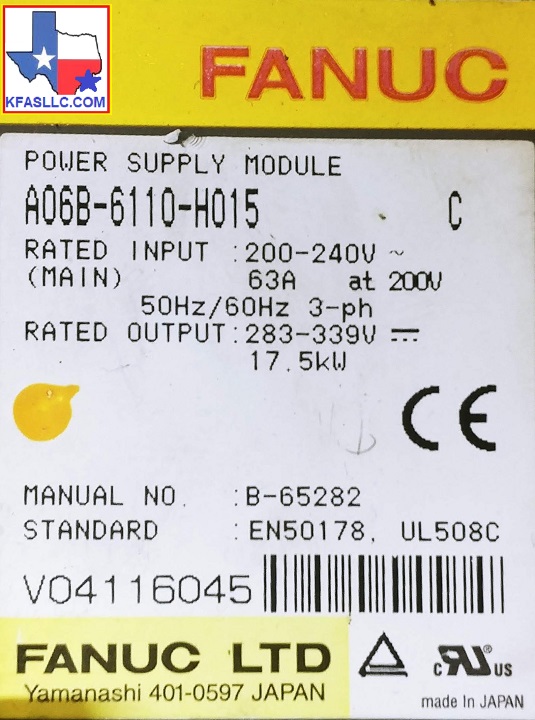

Rated INPUT: 200-230VAC 63A@200V 50Hz/60Hz 3-phase
Rated OUTPUT: 283-325VDC 17.5kW

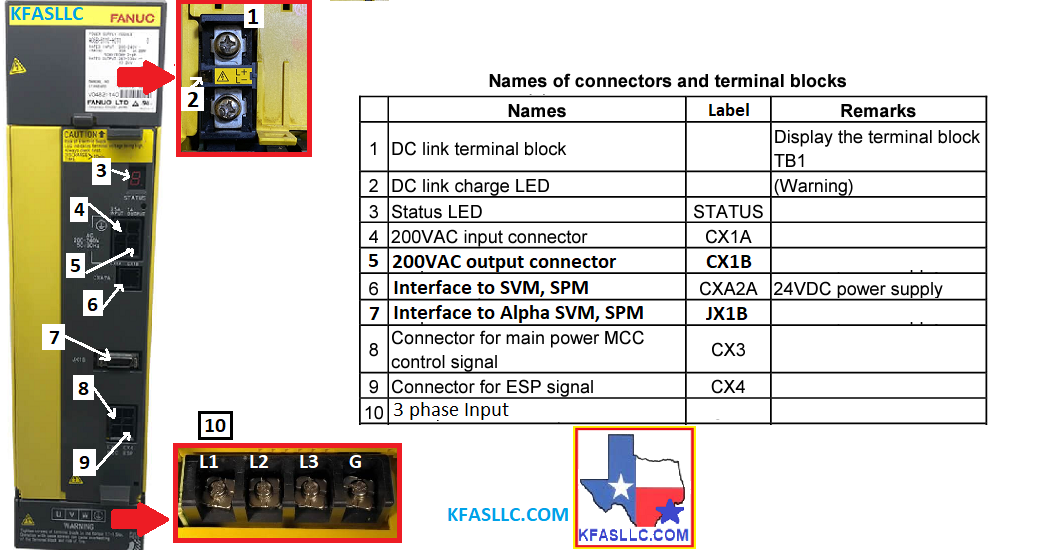

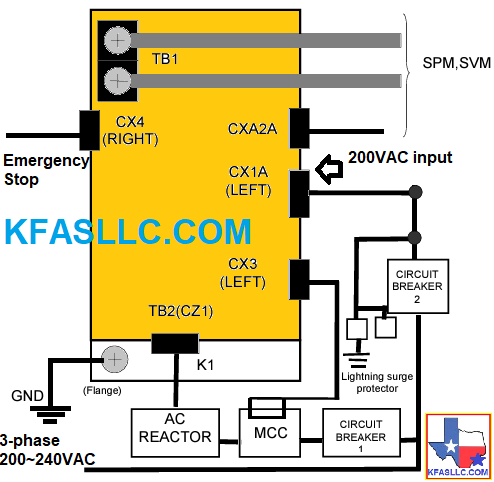

Related technical information Connection Info

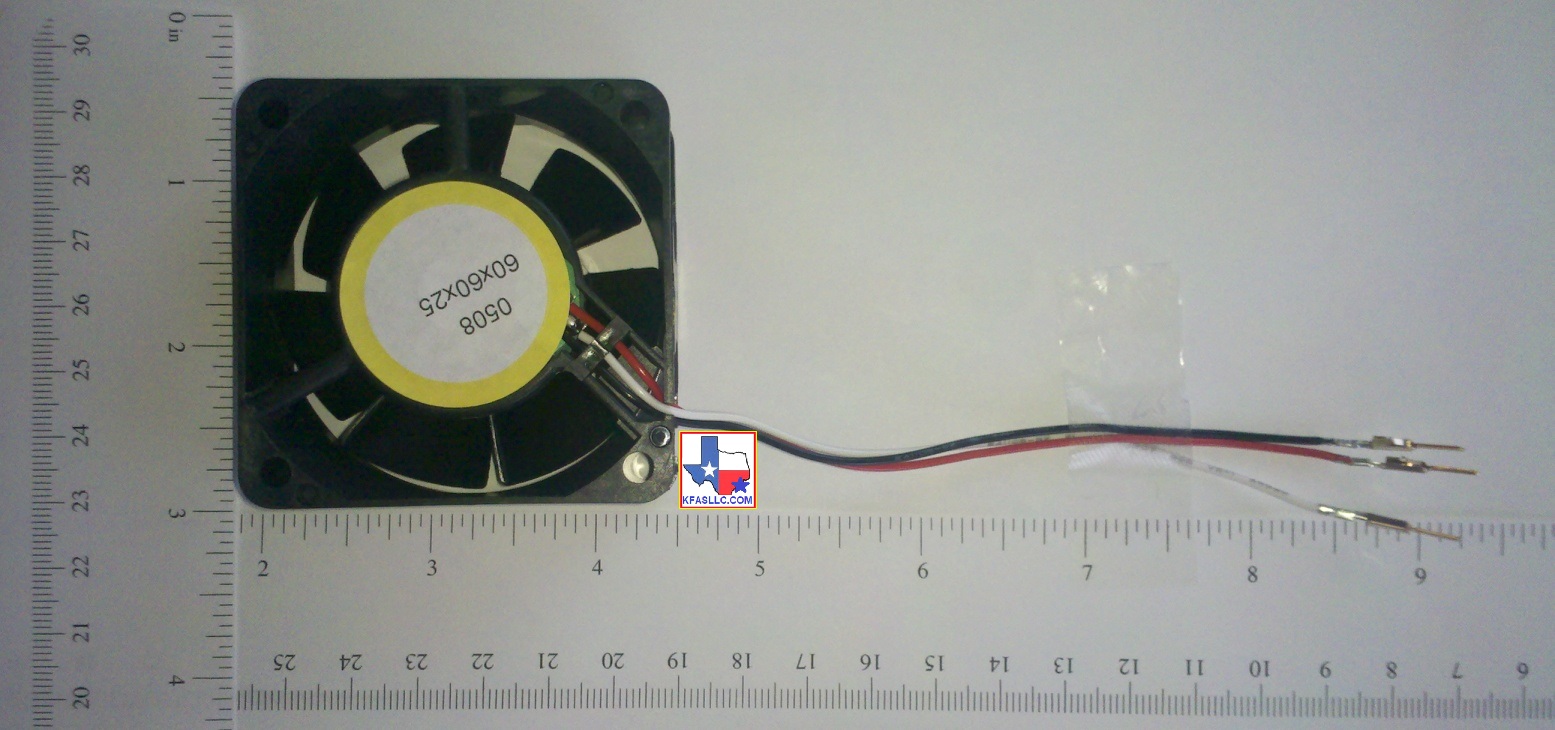

A06B-6110-H015 Alpha-i Power Supply Module uses internal cooling fan A90L-0001-0441 and external cooling fan A90L-0001-0508
A06B-6110-H015 Alarms Meaning and action to be taken
AL-1 : Overcurrent
in the Main Power Module.
AL-2 : Cooling Fan
Stopped.
AL-3 : The temperature
of the main circuit heat sink has risen abnormally.
AL-4 : The DC Voltage
has dropped.
AL-5 : The main
Capacitor was not recharged within the specified time.
AL-6 : The Input Power
Supply is Abnormal.
AL-7 : In the main
circuit the DC Voltage is abnormally high.
AL-A : External cooling
fan (located on heat sink) has stopped
AL-E : The Input Power
Supply is Abnormal (open phase)
Related Part NumbersKFASLLC kfasllc.com
A20B-2100-0761A06B-6110-H015 is part of Fanuc Alpha-i Series family with advanced features including
・Utilizes Power source regeneration technology to return regeneration energy of the motor to a power source. Compared with the resistor regeneration, power consumption is greatly reduced.
・Compact, reduced Wiring utilizing fiber optics communications and easy maintenance features such as ability to replace cooling fans without disassembling the unit.
