SV0443 and SP9059 alarm on Fanuc 30iB and 0iF control with A06B-6200 series Alpha i-B amplifiers (Fanuc Manual B-65285EN)

Alarm Code 02 AL-02 on PSM i-B (SV0443, SP9059)

An abnormal condition has been detected in the internal cooling fan.
- Check the rotation of the internal cooling fan.
- Check that internal cooling fan is correctly installed.
- The control printed circuit board is not correctly attached.
If the problem continues to persist after the above checks, Replace the Power Supply Module.

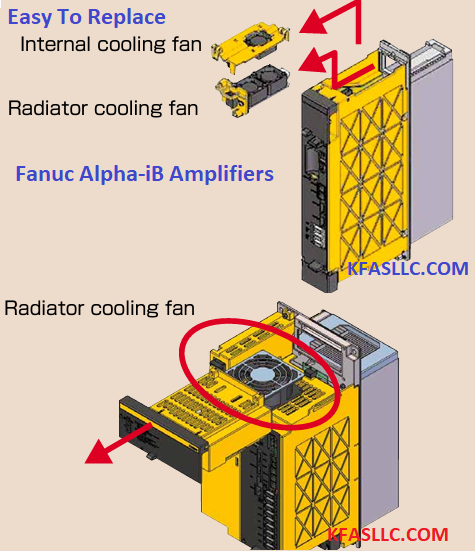

Alpha i-B Power Supply Module INTERNAL cooling fan list

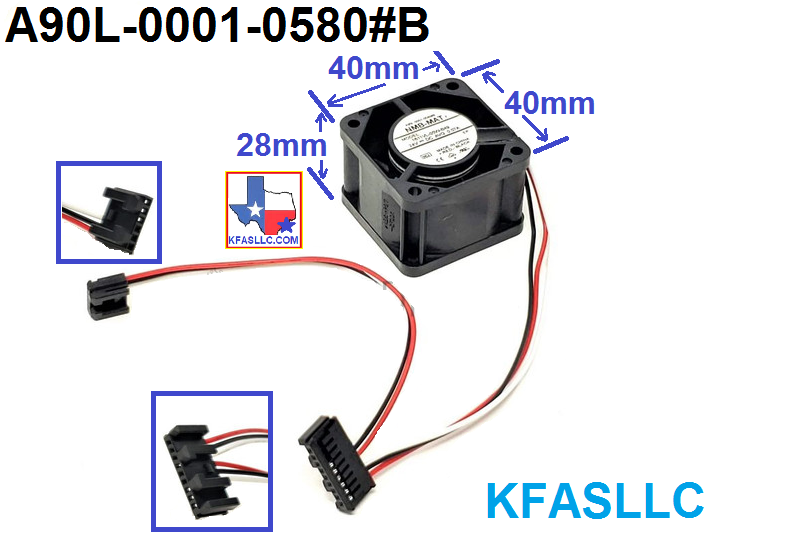

A06B-6200-H011 (αiPS 11-B)  A90L-0001-0580#B

A06B-6200-H015 (αiPS 15-B) A90L-0001-0580#B

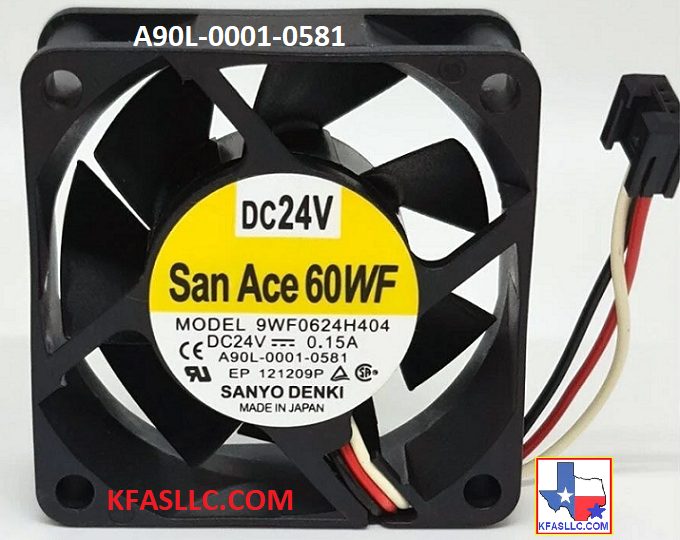

A06B-6200-H026 (αiPS 26-B) A90L-0001-0581

A06B-6200-H030 (αiPS 30-B) A90L-0001-0581

A06B-6200-H037 (αiPS 37-B) A90L-0001-0581

A06B-6200-H055 (αiPS 55-B) A90L-0001-0581 Qty 2
