A06B-6114-H103 SVM-i 1-20i

a06b6114h103

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

$1,100 ($300 Exchange Credit Available)

Select Shipping Option
Your UPS Account#

Repair/ Return Option Available At $700.

Rated Input: 283-325VDC 2.5 kW

Rated Output Current: L axis    6.5 A

A06B6114H103 B65282E Description Manual

A06B6114H103 B65285E Maintenance Manual

Related technical information

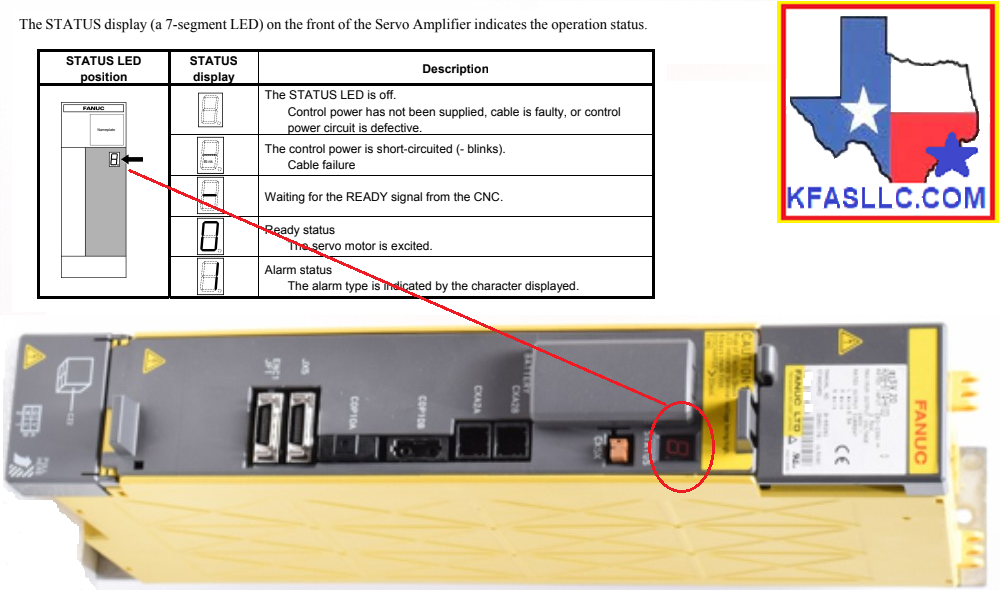

Understanding Cooling Fan Alarms

A06B-6114-H103 Alarms Meaning and action to be taken

Alarm     Meaning
1              Internal Fan Stopped (FAL)
2              Low control power voltage (LV5V)
5              Low DC link voltage (LVDC)
6              Inverter Overheat          Alarm "6" or "b"
F              External Cooling Fan Stop
P              Communication Error
8              L-axis over-current (HCL)
9              M-axis over-current (HCM)
A              N-axis over-current (HCN)
b             L & M-axis over-current     Alarm "6" or "b"
C             M & N-axis over-current
d             L & N-axis over-current
E              L, M, N -axis over-current
8.             L-axis IPM alarm (IPML)
9.             M-axis IPM alarm (IPMM)
A.             N-axis IPM alarm (IPMN)
b.            L & M-axis IPM alarm
C.            M & N-axis IPM alarm
d.            L & N-axis IPM alarm
E.             L, M, N-axis IPM alarm
L            FSSB Disconnect COP10A
U            FSSB Disconnect COP10B

a06b-6114-h103

Related Part NumbersKFASLLC kfasllc.com
A16B-2203-0691
A20B-2100-0740
A20B-2101-0040
A90L-0001-0510

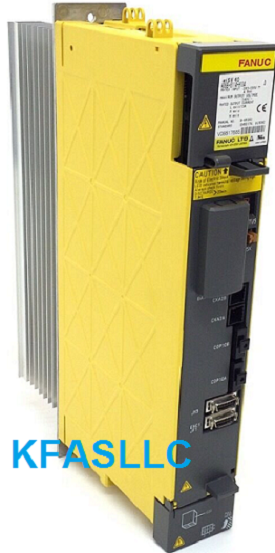

The FANUC A06B-6114-H103 Servo Amplifier Drive is an Alpha i Servo Module Model SVM1-20i and is used with Fanuc αiF 1/5000, αiF 2/5000, αiS 2/5000, αiS 2/6000, αiS 4/5000 .
As part of the A06B-6114 series of AC Servo Drives, the FANUC A06B-6114-H103 drive powers with a rated input of 283-339V (2.5kW), a maximum output voltage of 240V, and a rated output current of 6.5A.
Purchasing options for the FANUC A06B-6114-H103 Servo Amplifier Drive can be viewed in the details above. KFASLLC offers a wide selection of FANUC parts in new and refurbished condition.
If your FANUC A06B6114H103 drive needs to be repaired, we also offer 2 business days turnaround. Be sure to also check out our core credit exchange program for this and other products.
KFASLLC offers a huge variety of other FANUC CNC Drives and other FANUC parts in our online store.
Fanuc Alpha Servo A06B-6114-H103 features
high power and high acceleration due to optimum winding design and effective cooling structure.
Increased torque at low speed range
Super High precision and high resolution Alpha-iA pulse coder feedback(16,000,000 pulses/rev)
Available with both 200V input and 400V input
Compact size with latest intelligent Power Module (IPM) technology.
Utilize power source regeneration technology to return regeneration energy of the motor to a power source.
Compared with the resistor regeneration, power consumption is largely reduced.

A06B-6114-H103 is used with αiS 2/5000, αiS 2/6000, αiS 4/5000, αiF 1/5000, αiF 2/5000 βiS 0.4/5000, βiS 0.5/6000, βiS 1/6000, βiS 2/4000, βiS 4/4000, βiS 8/3000, βiS 12/2000
