KFAS: Fanuc Parts & Repair



A06B-6140-H026  PSM-26i

a06b6140h026

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

$2,850 ($650 Exchange Credit Available)

Select Desire Shipping Option
Your UPS Account# TO COLLECT
Repair/ Return Option Available At $1850

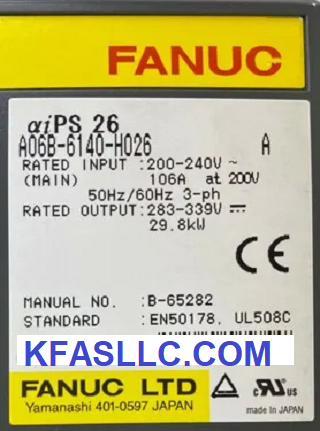

Rated INPUT: 200-230VAC  106A@200V  50Hz/60Hz  3-phase

 Rated OUTPUT: 283-325VDC  29.8kW

A06B6140H026 B65282E Manual

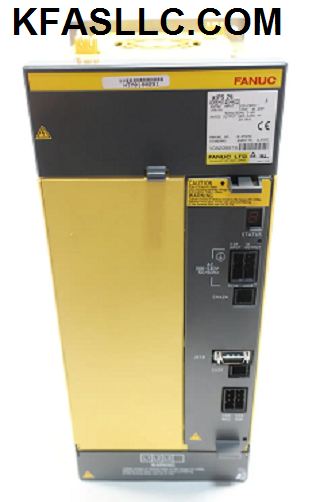

Related technical information  View Picture

 A06B-6140-H026 Alpha-i Power Supply Module uses internal cooling fan A90L-0001-0441#39 and external cooling fan A50L-0001-0509

A06B-6140-H026 Alarms Meaning and action to be taken
AL-1 : Overcurrent in the Main Power Module.
AL-2 : Cooling Fan Stopped.
AL-3 : The temperature of the main circuit heat sink has risen abnormally.
AL-4 : The DC Voltage has dropped.
AL-5 : The main Capacitor was not recharged within the specified time.
AL-6 : The Input Power Supply is Abnormal.
AL-7 : In the main circuit the DC Voltage is abnormally high.
AL-A : External cooling fan (located on heat sink) has stopped
AL-E : The Input Power Supply is Abnormal (open phase)

a06b-6140-h026

Related Part NumbersKFASLLC kfasllc.com

A20B-2101-0392

A50L-0001-0342

A16B-2203-0630

A50L-5000-0063

The Fanuc A06B-6140-H026 Power Supply Module from the Alpha i PSM-26 series is designed to deliver dependable, high-capacity power for CNC systems in demanding manufacturing environments. With a 26kW output rating and robust construction, this module ensures reliable operation of Fanuc spindle and servo drives, reducing downtime and improving overall machine efficiency.

Engineered for compatibility with Fanuc’s advanced CNC control systems, the A06B-6140-H026 is ideal for a wide range of industrial automation applications, including CNC lathes, milling machines, and high-speed machining centers.

Key Features:

All units are thoroughly tested for quality and performance. Fast shipping and technical support available to help with installation and compatibility.

Note: Please verify system requirements before ordering. Contact our technical support team for personalized assistance.
