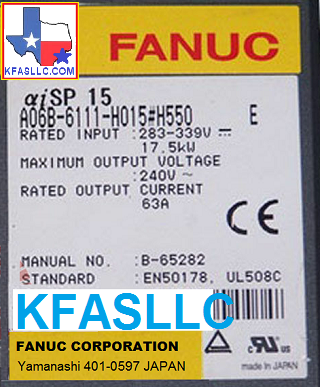

A06B-6111-H015#H550 SPM-15i
$2,450 ($650
Exchange Credit Available)
Repair/ Return Option Available At $1200.

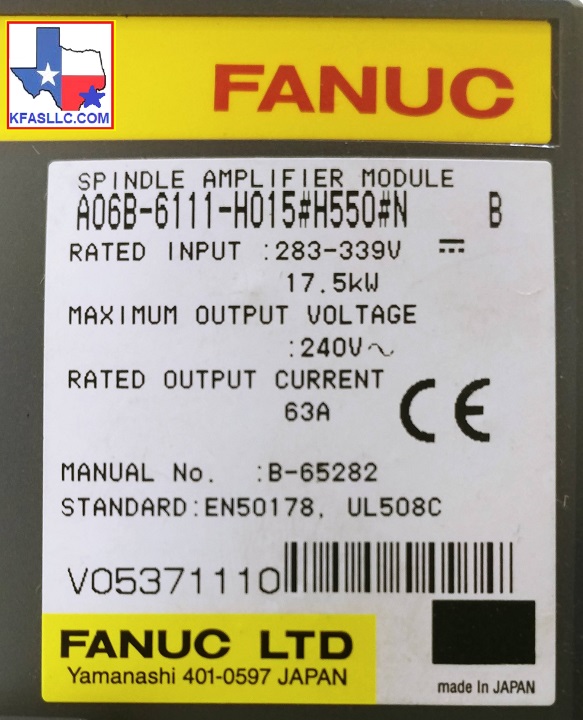

Rated INPUT: 283-325VDC 17.5kW
Rated OUTPUT: 230VAC 63A
Related technical information View Picture

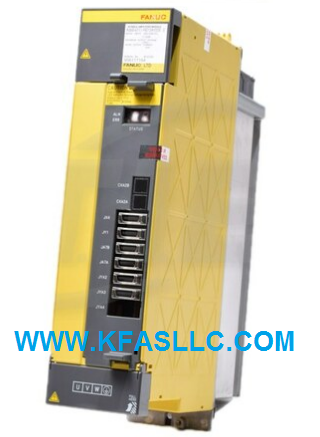

A06B-6111-H015 Alpha-i Spindle Amplifier Module uses internal cooling fan A90L-0001-0510 and external cooling fan A90L-0001-0508
A06B-6111-H015 Alarms Meaning
Alarm
Description
0, 00 Amplifier
is ready (normal operating state)
1, 01 Spindle
motor over temp
2, 02 Actual
motor speed is deviated from the commanded speed.
3, 03
DC link fuse has blown
4, 04 Open
phase detected in the 3-phase input to the the PSM.
6, 06 Temperature
sensor disconnected
7, 07 Excessive
speed
9, 09 The
heat sink of the SPM overheat.
11 PSM
detected that the DC link overvoltage
12 DC
link overcurrent
15 Spindle
switching operation sequence error.
18 EPROM
checksum error.
19 U
phase current detection error.
20
V phase current detection error.
21 Position
sensor polarity setting incorrect
24 Serial
transfer data error (or The power to the CNC is turned off).
27 Position
coder signal disconnect.
29 An
excessive load
30 Overcurrent
in the PSM.
31 Motor
lock alarm.
32 Serial
communication LSI memory error.
33 The
PSM/DC Link charge error.
34 Parameter
data outof range.
36 Error
counter overflowed.
37 Speed
detector parameter error
41 Position
coder one-rotation signal detection error.
42 Position
coder one-rotation signal not detected.
46 Position
coder one-rotation signal detection error during thread cutting.
47 Position
coder signal error.
50 Excessive
speed command in spindle synchronization.
51 PSM
DC link undervoltage.
52 The
synchronization signal (ITP) error.
53 The
synchronization signal (ITP) error.
54 Current
overload alarm
55 Abnormal
spindle switching control.
56 Internal
cooling fan error.
58
PSM internal temperature high.
59 PSM
internal cooling fan stopped.
66 Communication
alarm between spindle and SPM.
73 Motor
sensor is disconnected.
74 SPM
CPU alarm
75 SPM
CPU alarm
79 Abnormal
initial start up alarm
81
Motor sensor one-rotation signal detection error.
82 Motor
sensor one-rotation signal not detected
83 Motor
sensor signal error
84 Speed
sensor disconnected.
85 Spindle
sensor one-rotation signal detection error.
86 Spindle
sensor one-rotation signal not detected.
87 Spindle
sensor signal error
88 SPM
External cooling error.
A, A1, A2 SPM
Program ROM error
b0 Communication
error between amplifier modules
C0, C1, C2 Communication
data error between the CNC and SPM.
Related Part NumbersKFASLLC kfasllc.com
A16B-2203-0653A06B-6111-H015 is part of Fanuc Alpha-i Series family with advanced features including
・High mechanical precision and low vibration making it possible to directly connect to the spindle achieving high mechanical precision and low
vibration (V3).
・Utilizes Power source regeneration technology to return regeneration energy of the motor to a power source. Compared with the resistor regeneration, power consumption is greatly reduced.
・Compact, reduced Wiring utilizing fiber optics communications and easy maintenance features such as ability to replace cooling fans without disassembling the unit.
・Center-through-coolant is available by direct connection with the spindle of a machining center. Air cooled αiIT series and oil cooled αiIL series are available.
