Are you located in Houston area?
A06B-6220-H002#H600 αiSP 2.2-B
A06B-6220-H006#H600 αiSP 5.5-B
A06B-6220-H011#H600 αiSP 11-B
A06B-6220-H015#H600 αiSP 15-B
A06B-6220-H022#H600 αiSP 22-B
A06B-6220-H026#H600 αiSP 26-B
A06B-6220-H030#H600 αiSP 30-B
A06B-6220-H037#H600 αiSP 37-B
A06B-6220-H045#H600 αiSP 45-B
A06B-6220-H055#H600 αiSP 55-B
A06B-6222-H002#H610 αiSP 2.2-B
A06B-6222-H006#H610 αiSP 5.5-B
A06B-6222-H011#H610 αiSP 11-B
A06B-6222-H015#H610 αiSP 15-B
A06B-6222-H022#H610 αiSP 22-B
A06B-6222-H026#H610 αiSP 26-B
A06B-6222-H030#H610 αiSP 30-B
A06B-6222-H037#H610 αiSP 37-B
A06B-6222-H045#H610 αiSP 45-B
A06B-6222-H055#H610 αiSP 55-B
The A06B-6220 αi-B series amplifiers employs a modular structure, and
is thinner, conserves more space, outputs less heat, and saves more energy.
Compact size
(1) A latest low-loss power device and a newly developed highly-efficient radiator are used to provide
compact amplifiers.
(2) The shape of the cable connector is improved to reduce the length of cable projection into the
cabinet.
Energy saving
(1) All models from small- to large-capacity ones use power regeneration as standard to save energy.
(2) A latest low-loss power device is used to output less heat.
Improved maintainability
(1) A radiator cooling fan motor can now be replaced without removing the unit from the power
magnetic cabinet.
(2) The smart trouble shooting function allows you to check diagnostic information useful for locating
the cause of a servo or spindle alarm on the CNC screen.
(3) The input voltage of the Power Supply can now be monitored, which makes it easier to locate the
cause of an alarm issued due to an abnormality in the input power supply.
(4) Connectors are attached to the input power lines and motor power lines, which makes it easier to
replace a servo amplifier with another one.
(5) The need to perform reference position return operation after servo amplifier replacement is
eliminated.

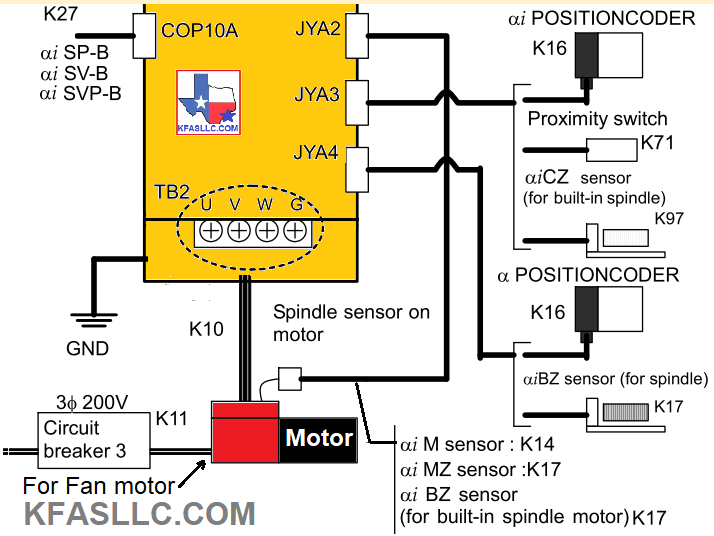

(6) A variety of feedback devices available to suit any
configuration of the machine tool.
