Fanuc parameter backup procedures
CL-25A
CL-25B
CL-25B with Fanuc 21TB control
X axis motor: A06B-0128-B075
Y axis motor: A06B-0147-B075
X & Z axis
servo: A06B-6079-H208
Spindle motor: A06B-0831-B901
Spindle Amp:
A06B-6088-H330
Power Supply Module: A06B-6087-H115
21TB control
A20B-2901-0761
A16B-2203-0045
A16B-3200-0045
A20B-1005-0421
A20B-1006-0260
A20B-2901-0660
CL-25A with Fanuc 18TB control
X axis motor: A06B-0128-B075
Y axis motor: A06B-0147-B075
X & Z axis
servo: A06B-6079-H208
Spindle motor: A06B-0831-B901
Spindle Amp:
A06B-6088-H330
Power Supply Module:
A06B-6087-H130
18TB control
A20B-2002-0020
A16B-1212-0901
A16B-2202-0726
A16B-2202-0860
A20B-2902-0271
A20B-2901-0961
A20B-2902-0341
A20B-2901-0941
A20B-2902-0070
A20B-2002-0020 Backplane PCB
A16B-1212-0901 POWER SUPPLY AI
A16B-2202-0726 F16 DI/DO:104/72 W/O SKIP
A16B-2202-0860 F18B MAIN CPU
A20B-2901-0981 F16B SPINDLE MODULE SERIAL
A20B-2902-0271 F16/18B 9" CRT CONTROL
A20B-2901-0961 PMC PMP2A
A20B-2902-0341 F18B FROM MODULE 4MB
A20B-2901-0941 DRAM 4MB
A20B-2902-0070 F16B/C SERVO MODULE
A02B-0120-C111 CRT UNIT 9INCH MONO SEPARATE
A02B-0120-C122/TA MDI UNIT FULLKEY A02B-0120-C122/TAR
A860-0202-T001 M.P.G. W/O FLANGE A860-0203-T001
A860-0392-T013 BUILT-IN SENSOR W/RING O.DIA/I.DIA 206MM/160MM
A06B-0128-B075 X-AXIS AC MOTOR A6/3000 A64 PULSE
A06B-0147-B075 Z-AXIS AC MOTOR A22/2000 A64 PULSE
A06B-6079-H208 SERVO AMP MODULE ALPHA-80/80 2AXES
A06B-0831-B901 AC SPINDLE MOTOR AP40 FOOT MOUNT A06B-0831-B901/0C40
A06B-6088-H330 SPINDLE AMP MODULE SPM-30 C-AXIS CONTROL ALPHA SP AP60
A06B-6087-H130 POWER SUPPLY MODULE PSM-30

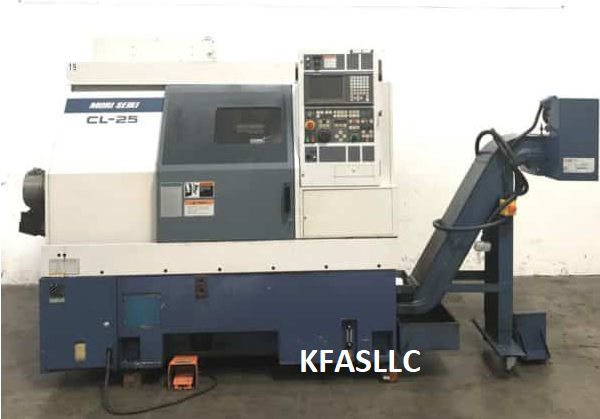

Mori Seiki CL-25 Specifications
Turning length 450 mm
Turning Ø 370 mm
Ø above the bed 520 mm
Ø above transversing slide 410 mm
Length between centers 480 mm
X-axis 260 mm
Z-axis 500 mm
Spindle taper ASA 8
Spindle bore 80 mm
Number of tools on turret 10
Turning speed 3000 rpm
Spindle motor power 15 kW
Available options: Tailstock, Bar feeder
-------------------
Length x width x height 2000.0 × 1736.0 × 1955.0
