Fanuc A16B-1212-0901 A16B12120901
The FANUC A16B-1212-0901 Power Supply is commonly used in Fanuc controls
such as 16MB, 16TB, 18MB, 18TB, 18MC, 18TC, and some Fanuc robot controllers.
IMPORTANT: DO NOT REMOVE this PSU from the control unit for more than 30 minutes at a time from the back plane or control unit. The memory backup battery is mounted inside this PSU. HOWEVER, the battery supplies power to the SRAM module located on the Main CPU board. If ordering a replacement, please keep your original/ defective one installed in the control unit until the replacement has arrived and you are ready to install it.
SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME
$1,050
UPS GND SHIPPING INCLUDED

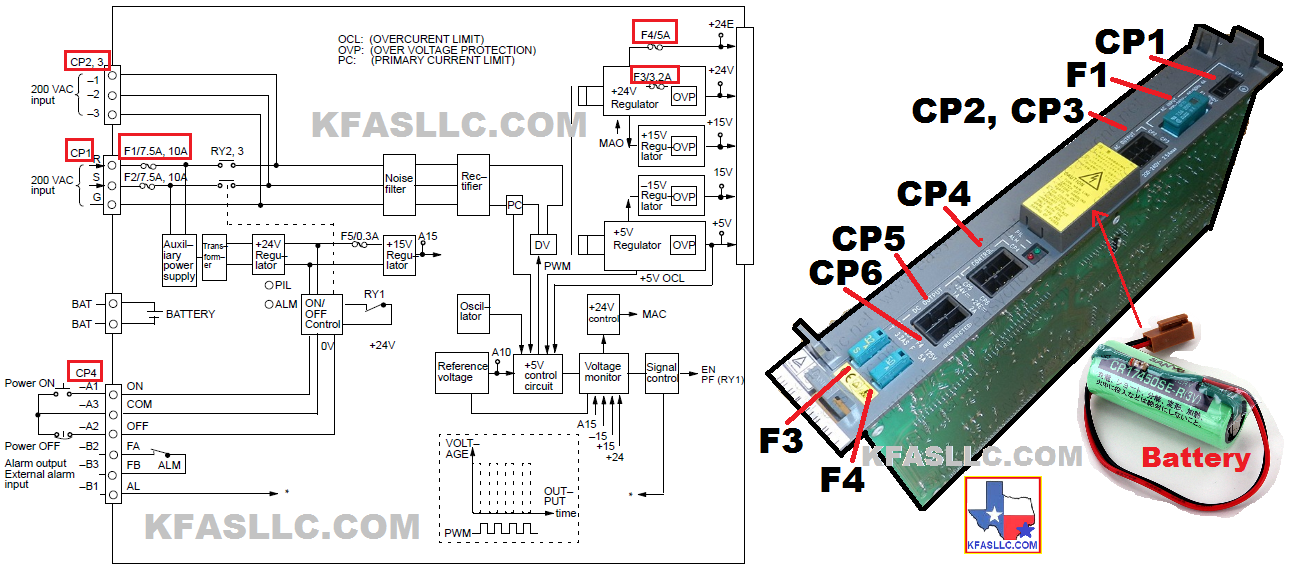

A16B-1212-0901 utilizes following fuses
F1 (200–VAC input) A60L–0001–0245#GP75 (Daito
GP75)
F3 (For 9" CRT/LCD) A60L–0001–0046#3.2 (Daito
MP32)
F4 (I/O unit, etc.) A60L–0001–0046#5.0 (Daito
MP50)
**Requires battery A98L-0031-0012 (Not
included)
FANUC A16B-1212-0901 Power Supply is In Stock at KFASLLC for same day shipping.
RECONDITIONED AND TESTED
