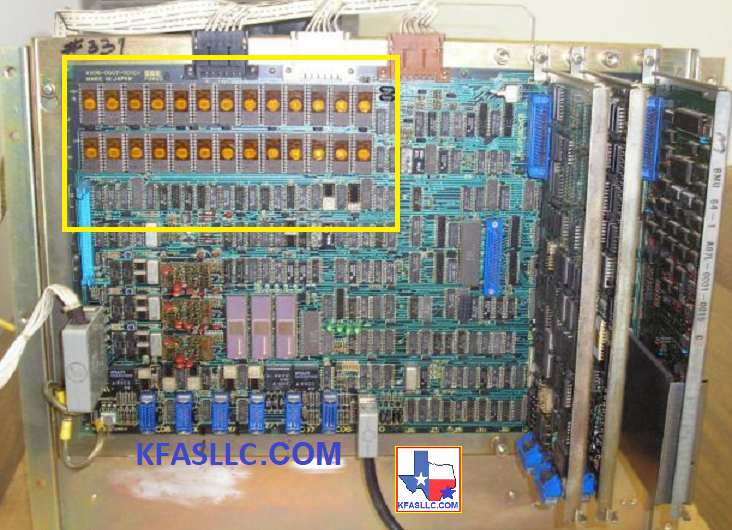

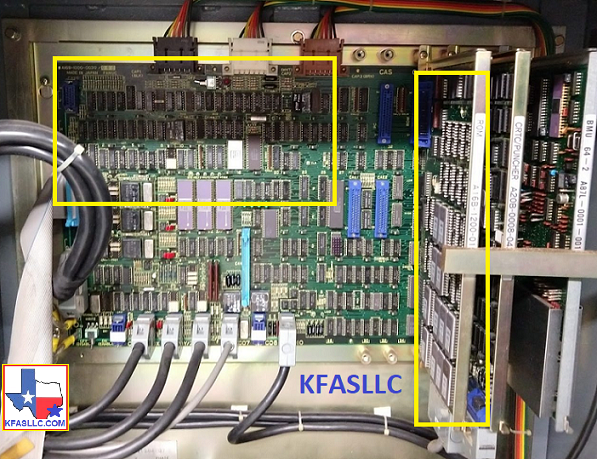

Do you have a 6TA/ 6MA control or 6TB/ 6MB?
Fanuc 6 control RS232 serial communication parameters
Personal Computer Settings
4800 Baudrate
2 stop bits
ISO Code (ASCII)
Even parity
Data length = 7 bits
Control Codes (Xon/ Xoff used)
LF for End Of Block
Fanuc 6-TA and 6-MA controls
Parameter 000 bit 5 = 1
026 bit 7 = 0
002 bit 5 = 1
024 bit 0 = 1 (for 2 stop bits)
024 bit 0 = 0 (for 1 stop bit)
| Set Parameter 025 according to the following table | ||||||||
| Baud Rate | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| 50 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
| 100 | 1 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
| 110 | 1 | 0 | 0 | 0 | 0 | 1 | 0 | 1 |
| 150 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 |
| 200 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 |
| 300 | 1 | 0 | 0 | 0 | 1 | 1 | 0 | 0 |
| 600 | 1 | 1 | 0 | 0 | 1 | 1 | 0 | 0 |
| 1200 | 1 | 1 | 0 | 0 | 1 | 1 | 1 | 0 |
| 2400 | 1 | 1 | 0 | 0 | 1 | 1 | 1 | 1 |
| 4800 | 1 | 1 | 1 | 0 | 1 | 1 | 1 | 1 |
| 9600 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Jumper Pin Settings on the Puncher Interface PCB A20B-0007-0060 / 0061 | |||
| S2 (B4) | FACIT | RS232C | |
| "9-8" | * | ||
| "10-7" | * | ||
| "11-6" | |||
| "12-5" | |||
| "13-4" | * | ||
| "14-3" | * | ||
| "15-2" | |||
| "16-1" | |||
| S3 (B5) | FACIT | RS232C | |
| "9-8" | * | ||
| "10-7" | * | * | |
| "11-6" | * | * | |
| "12-5" | * | ||
| "13-4" | * | ||
| "14-3" | |||
| "15-2" | |||
| "16-1" | * | ||
