Cooling fans (for Fanuc Alpha Power Supply Module, Spindle Amplifier Module, Servo Amplifier Module)

Due to a supply shortage, we no longer sell cooling fans.

It is best to check the actual manufacturer's part number, the dimensions, and the connector type used of the fan you need before placing order.

Please contact Fanuc America at 18883268287 to inquire.

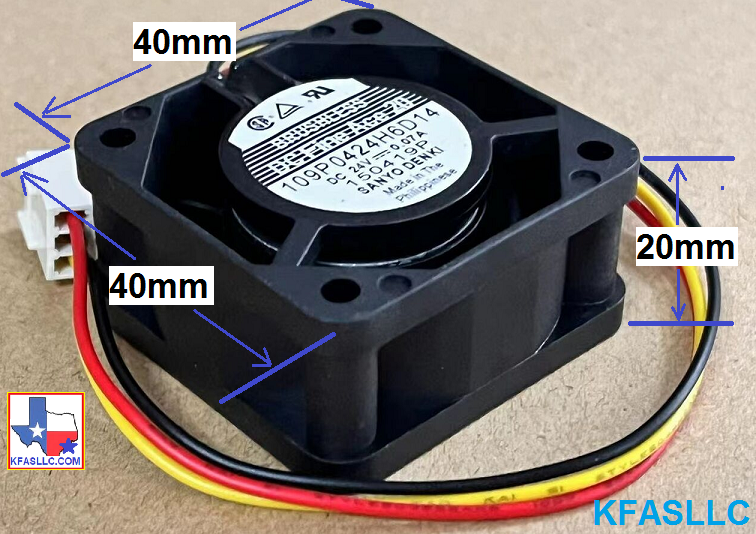

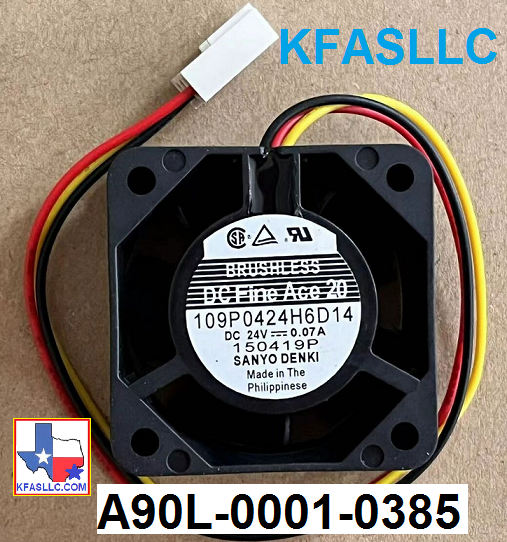

Sanyo Denki DC 24V Fine Ace 20 (Size:40mm x 40mm x 20mm)

109P0424H6D14 109P0424H6D03 109P0424H6D04 109P0424H6D11

A90L-0001-0385

A90L-0001-0385 is commonly used in

A06B-6079-H101, A06B-6096-H101

A06B-6079-H102, A06B-6096-H102

A06B-6079-H103, A06B-6096-H103

A06B-6079-H104, A06B-6096-H104

A06B-6079-H105, A06B-6096-H105

A06B-6079-H106, A06B-6096-H106

A06B-6079-H201, A06B-6096-H201

A06B-6079-H202, A06B-6096-H202

A06B-6079-H203, A06B-6096-H203

A06B-6079-H204, A06B-6096-H204

A06B-6079-H205, A06B-6096-H205

A06B-6079-H206, A06B-6096-H206

A90L-0001-0385/B (40x40x20mm with 10" cable)

Panaflo DC 24V (Size: 80mm x 80mm x 15mm)

FBK06T24H 2406KL-05W-B59 9WF0624H7D04 SanAce60WF

A90L-0001-0422

A90L-0001-0422 is commonly used in

A06B-6088-H215, A06B-6087-H115

A06B-6088-H222, A06B-6087-H126

A06B-6088-H226, A06B-6087-H130

A06B-6088-H230, A06B-6087-H137

A06B-6102-H215, A06B-6102-H222

A06B-6102-H226, A06B-6102-H230

A06B-6079-H107, A06B-6079-H108

A06B-6096-H107, A06B-6096-H108

A06B-6088-H245, A06B-6087-H145

A06B-6088-H255, A06B-6087-H155

A06B-6102-H255, A06B-6102-H245

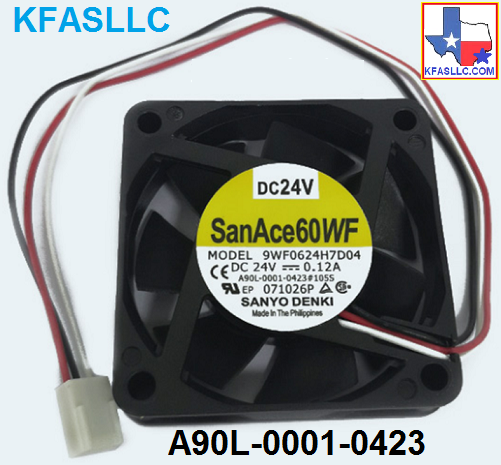

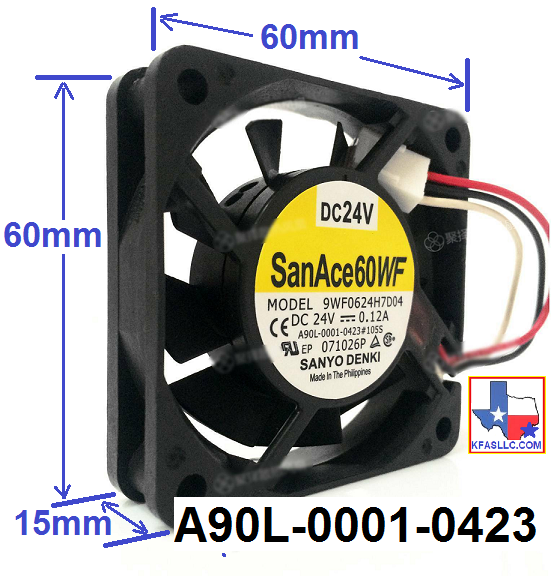

NMB DC 24V (Size: 60mm x 60mm x 15mm)

FBK06T24H 2406KL-05W-B59 9WF0624H7D04 SanAce60WF

A90L-0001-0423

A90L-0001-0423 is commonly used in

A06B-6079-H106, A06B-6096-H106

A06B-6079-H207, A06B-6096-H207

A06B-6079-H208, A06B-6096-H208

A06B-6079-H209, A06B-6096-H209

A06B-6078-H211, A06B-6078-H206

A06B-6077-H111, A06B-6077-H106

Fanuc 18iA, 16iA, 21iA controls

Fanuc 16iB, 18iB, 21iB controls

 A16B-1212-0950 PSU requires A90L-0001-0423#150 (with 150mm cable)

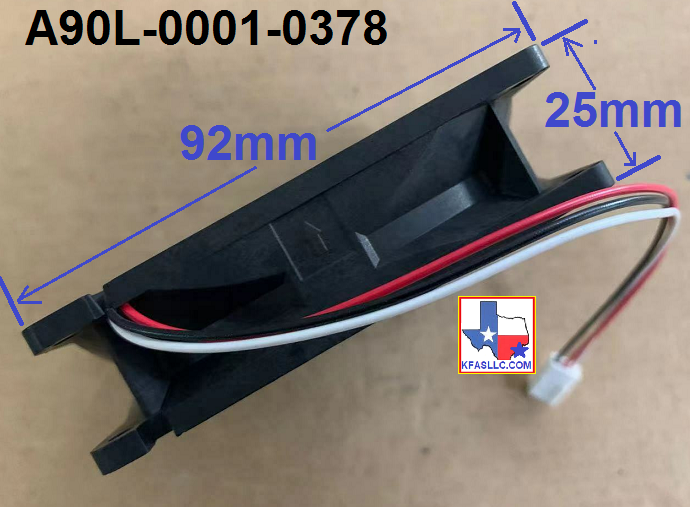

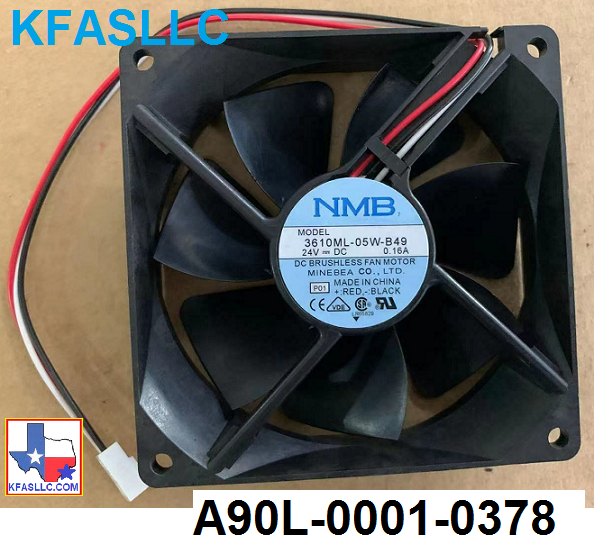

  NMB DC 24V (Size: 92mm x 92mm x 25mm)

3610ML-05W-B49 FBK09A24M

A90L-0001-0378

18-MC A02B-0228-B502, 21MB A02B-0218-B502

18TC A02B-0228-B501, 16TA A02B-0120-B502

16TB A02B-0200-B502, 16TC A02B-0222-B501

16TTA A02B-0120-B503, 18MC A02B-0228-B502

180TC A02B-0228-B523, 16MC A02B-0222-B502

160MC A02B-0222-B504, 180TB A02B-0216-B502

16TB A02B-0200-B502, 21MB A02B-0218-B502

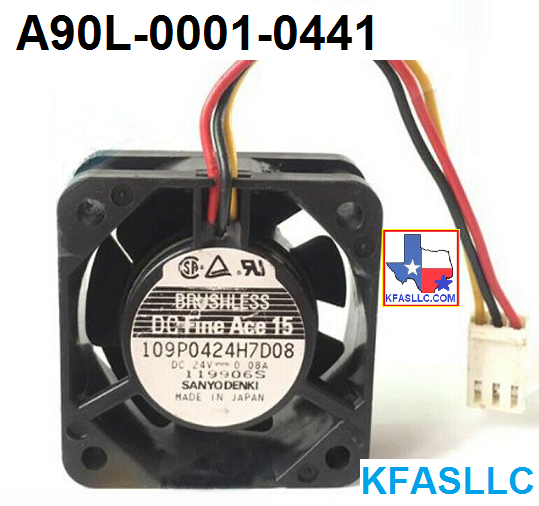

Sanyo Denki DC 24V Fine Ace 15 (Size: 40mm x 40mm x 15mm)

109P0424H7D08 109P0424H7D13 109P0424H7D28  109P0424H7D20

A90L-0001-0441

A90L-0001-0441 is commonly used in

A06B-6079-H101, A06B-6096-H101

A06B-6079-H102, A06B-6096-H102

A06B-6079-H103, A06B-6096-H103

A06B-6079-H104, A06B-6096-H104

A06B-6079-H105, A06B-6096-H105

A06B-6079-H106, A06B-6096-H106

A06B-6079-H201, A06B-6096-H201

A06B-6079-H202, A06B-6096-H202

A06B-6079-H203, A06B-6096-H203

A06B-6079-H204, A06B-6096-H204

A06B-6079-H205, A06B-6096-H205

A06B-6079-H206, A06B-6096-H206

Fanuc 18iA, 16iA, 21iA controls

Fanuc 16iB, 18iB, 21iB controls

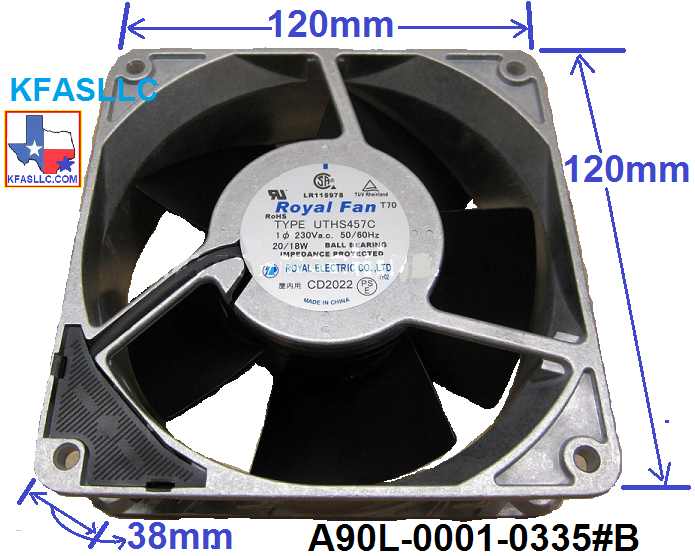

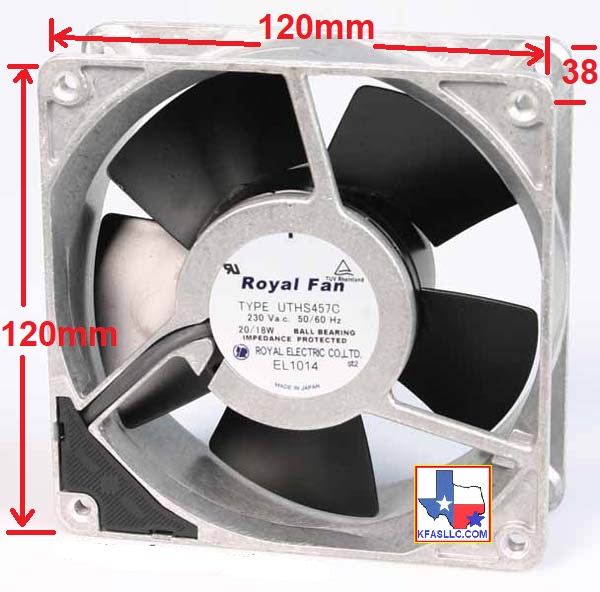

AC 220V (Size:120mm x 120mm x38mm)

US12D23    UTH5457C

A90L-0001-0335/B

A90L-0001-0335/B is commonly used in

A06B-6088-H215, A06B-6087-H115

A06B-6088-H222, A06B-6087-H126

A06B-6088-H226, A06B-6087-H130

A06B-6088-H230, A06B-6087-H137

A06B-6102-H215, A06B-6102-H222

A06B-6102-H226, A06B-6102-H230

A06B-6079-H107, A06B-6079-H108

A06B-6096-H107, A06B-6096-H108
