KFAS: Fanuc CNC Parts, Service, & Repair





A06B-6240 B65412E Manual

A06B-6240-H101 αiSV 4-B

A06B-6240-H103 αiSV 20-B

A06B-6240-H104 αiSV 40-B

A06B-6240-H105 αiSV 80-B

A06B-6240-H106 αiSV 160-B

A06B-6240-H109 αiSV 360-B

A06B-6240-H121 αiSV 4-B

A06B-6240-H123 αiSV 20-B

A06B-6240-H124 αiSV 40-B

A06B-6240-H125 αiSV 80-B

A06B-6240-H126 αiSV 160-B

A06B-6240-H129 αiSV 360-B

A06B-6240-H201 αiSV 4/4-B

A06B-6240-H203 αiSV 4/20-B

A06B-6240-H205 αiSV 20/20-B

A06B-6240-H206 αiSV 20/40-B

A06B-6240-H207 αiSV 40/40-B

A06B-6240-H208 αiSV 40/80-B

A06B-6240-H209 αiSV 80/80-B

A06B-6240-H210 αiSV 80/160-B

A06B-6240-H211 αiSV 160/160-B

A06B-6240-H301 αiSV 4/4/4-B

A06B-6240-H305 αiSV 20/20/20-B

A06B-6240-H306 αiSV 20/20/40-B

A06B-6240-H308 αiSV 40/40/40-B

A06B-6240-H321 αiSV 4/4/4-B

A06B-6240-H325 αiSV 20/20/20-B

A06B-6240-H326 αiSV 20/20/40-B

A06B-6240-H328 αiSV 40/40/40-B

A06B-6240-H331 αiSV 80/80/80-B

The A06B-6240 αi-B series amplifiers employs a modular structure, and
is thinner, conserves more space, outputs less heat, and saves more energy.

Compact size
(1) A latest low-loss power device and a newly developed highly-efficient radiator are used to provide
compact amplifiers.
(2) The shape of the cable connector is improved to reduce the length of cable projection into the
cabinet.

Energy saving
(1) All models from small- to large-capacity ones use power regeneration as standard to save energy.
(2) A latest low-loss power device is used to output less heat.

Improved maintainability
(1) A radiator cooling fan motor can now be replaced without removing the unit from the power
magnetic cabinet.

(2) The smart trouble shooting function allows you to check diagnostic information useful for locating
the cause of a servo or spindle alarm on the CNC screen.
(3) The input voltage of the Power Supply can now be monitored, which makes it easier to locate the
cause of an alarm issued due to an abnormality in the input power supply.
(4) Connectors are attached to the input power lines and motor power lines, which makes it easier to
replace a servo amplifier with another one.
(5) The need to perform reference position return operation after servo amplifier replacement is
eliminated.

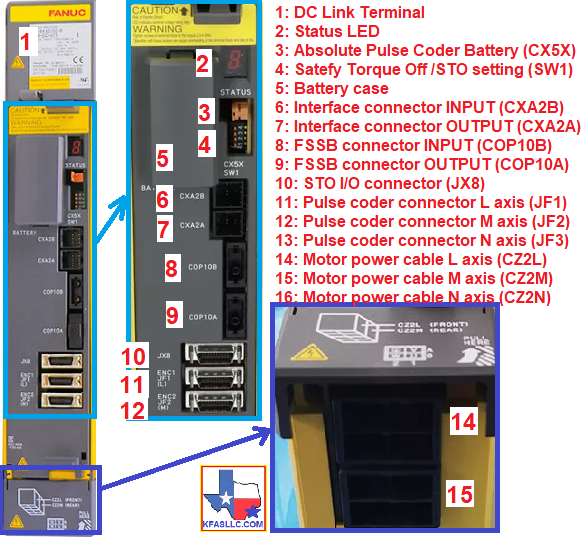

a06b-6240 aiSV-B connectors

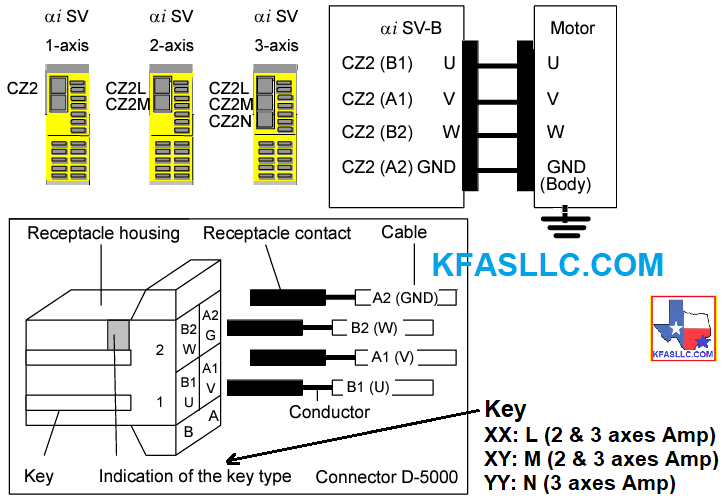

A06B-6240 CZ2 motor power connector

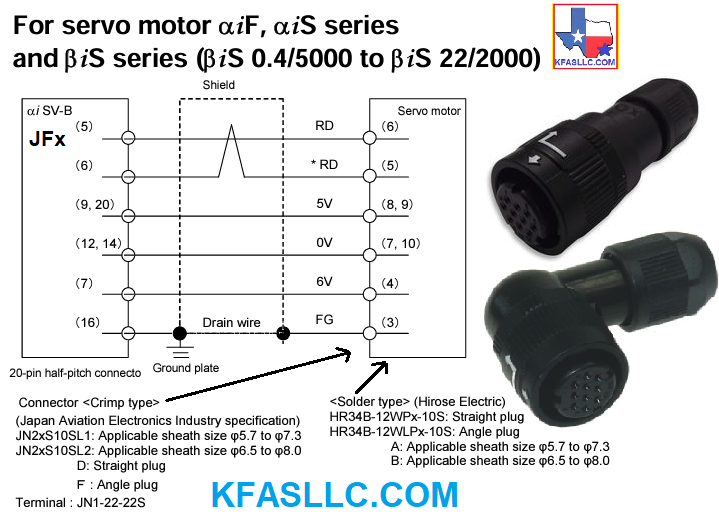

a06b-6240 JF feedback connector

A06B-6240 CXA2A CXA2B

A06B-6240 cxa2a cxa2b

a06b-6240 SW1 setting
