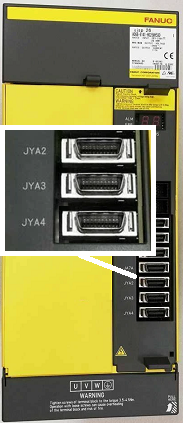

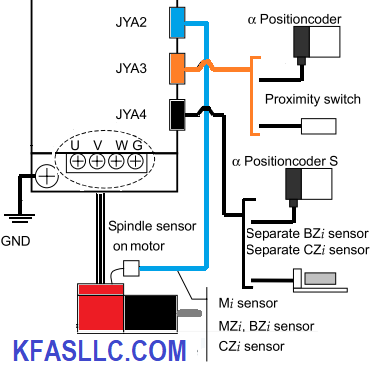

Alpha-i SPM Type B (JYA4)
A06B-6112-H002
A06B-6112-H006
A06B-6112-H011
A06B-6112-H015
A06B-6112-H022
A06B-6112-H026
A06B-6112-H030
A06B-6112-H037
A06B-6112-H045
A06B-6112-H055

Spindle amplifier module (SPM)
The spindle amplifier module (SPM) is used to drive a spindle motor.
A SPM is selected according to the spindle motor connected to the SPM.
There are three types of spindle amplifier module, as follows:
<1> Spindle amplifier module (SPM) This module drives a spindle motor of the 200-V input series.
<2> Spindle amplifier module (SPMC) This module drives the αCi series spindle motor.
<3> Spindle amplifier module (SPM-HV) This module drives a spindle motor of the 400V input series.

SPM - x HV i
(A)     (B) (C)

(A) Model name:
SPM = Spindle amplifier module
SPMC= Spindle amplifier module applied to spindle αCi series

(B) Output: Numeric value representing the 30-minutes rating of a matching standard motor (αi) in kW

(C) For an amplifier supporting 400-V input, "HV" is added.
