Fanuc does not manufacturer certain parts such as cooling fans, batteries and fuses.
In order to purchase correct replacement part, you need to identify Fanuc/GE Fanuc part number.
The following is the cross reference between the manufacturer's part number and Fanuc/GE Fanuc part number.

Cooling fans in the Fanuc controllers are generally not available to purchase locally or from 3rd party sources.
In addition to Red (+24V) and Black (0V or neutral) wires, these cooling fans have Yellow/white wire which is connected
to the internal current sensor which monitors the current drawn by the fan motor. Standard cooling fans available
at local electronics stores do not have this feature.

 Batteries

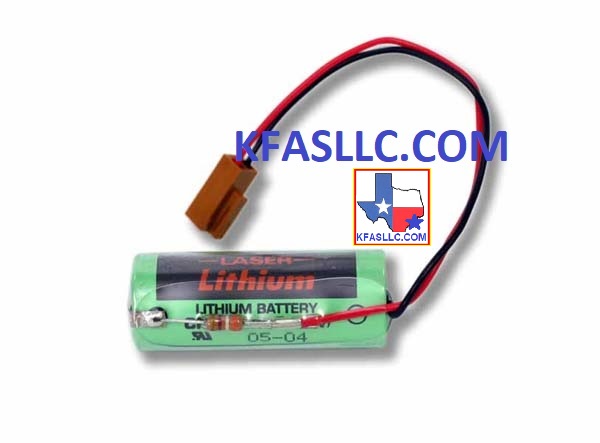

Panasonic CR17450SE-R (3 volt)
A98L-0031-0012
Used for  Memory backup 15B, 16i/18i/21i, 16B/18B

Panasonic BR-2/3AC2SP (3 volt)
A98L-0031-0006
Memory backup 16B/18B, 16A, 21A, 21B, PowerMate

Panasonic BR-C (3 volt)
A98L-0031-0007
16A/18A

Panasonic BR-CCF2TH (6 volt)
A98L-0001-0902
Absolute pulse coder alpha series

When ordering cooling fans for Fanuc Alpha series Power Supply Modules, Spindle Amp Modules and Servo Amp Modules,
be sure to check the dimensions of the fan itself and the type of connector. Consult the relevant Fanuc manual for instructions
on how to disassemble the units. Here are some helpful information relating to the cooling fans.

Alpha-i Cooling fan alarms

Alpha Cooling fan alarms

Cooling fan alarm 700, 701

Cooling Fans


NMB 3610ML-05W-B49
FBK09A24M
A90L-0001-0378
Fanuc 16/ 18 TA, MA, TB, MB, TC, MC CPU cooling fan



Panaflo FBA06T24H                         ,
NMB 2406KL-05W-B59
A90L-0001-0423
A90L-0001-0423/300 (with 300mm cable)
A90L-0001-0423/150 (with 150mm)


Panaflo FBK08T24HS
A90L-0001-0422
Internal cooling fan for Alpha series Power Supply Module (PSM)
& Alpha series Spindle Amplifier Module (SPM)

Panaflo FBK09A24MSA
A90L-0001-0378/A

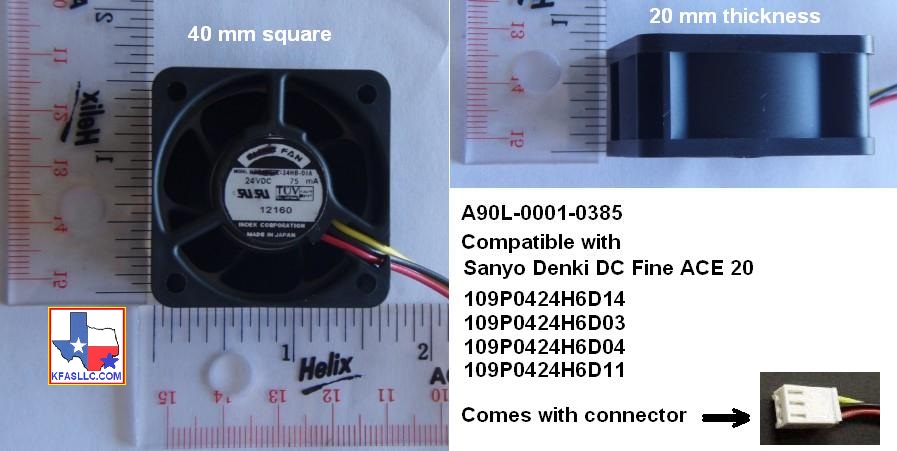

Sanyo 109P0424H6D03
A90L-0001-0385
Sanyo Denki DC Fine Ace 20 with 80mm cable

Sanyo 109P0424H6D04
A90L-0001-0385/A
Sanyo Denki DC Fine Ace 20 with 95mm cable

Sanyo 109P0424H6D11
A90L-0001-0385/B
Sanyo Denki DC Fine Ace 20 with 250mm cable

Sanyo 109P0424H6D14
A90L-0001-0385/T
Sanyo Denki DC Fine Ace 20 with 40mm cable


Sanyo 109P0424H7D08
 A90L-0001-0441
Sanyo Denki DC Fine Ace 15 with 70mm cable

Sanyo 109P0424H7D13
A90L-0001-0441/100
Sanyo Denki DC Fine Ace 15 with 100mm cable

Sanyo 109P0424H7D20
A90L-0001-0441/39
Sanyo Denki DC Fine Ace 15 with 39mm cable


Toyo UTHS457C
A90L-0001-0335/B
AC 220V

Style Electric US12D23
A90L-0001-0335/B



NMB 1608KL-05W-B39
A90L-0001-0507/B
40mm x 40mm x 20mm

NMB 1608KL-05W-B39
A90L-0001-0510
40mm x 40mm x 20mm

NMB 2406KL-05W-B39
A90L-0001-0511
60mm x 60mm x 15mm

NMB 1608KL-05W-B39
A90L-0001-0507/A
40mm x 40mm x 20mm

NMB 2410ML-05W-B39
A90L-0001-0508
60mm x 60mm x 25mm

NMB 4715KL-05W-B39
A90L-0001-0509
119mm x 119mm x 38.4mm
