KURAKI

WARNING: In general, parameter settings are unique to each machine and it is NOT recommended to use parameters from one machine for another.

Over the years from servicing various types of machine tools, we have accumulated parameter backup from these machines.

The following is the list of machines that we currently have parameter backup on file.

Fanuc parameter backup procedures

CMN-5B

H13-20R

KBM-11A with 16MB

KBM-11A with 16MC

KBM-11X with 16iMA

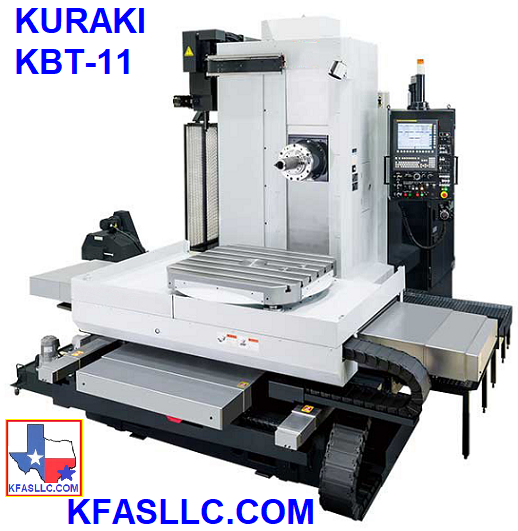

Kuraki KBT-11

KBT-11X with 16iMA
A20B-8100-0130 F16I MASTER BOARD W/O PC
A20B-8100-0261 PMC-C LANUGUAGE BOARD
A20B-2100-0290 F16I/18I BACK PANEL 3-SLOTS
A20B-8001-0920 F16I/F18I LCD 10.4" INVERTER
A20B-3300-0260 F16IS/F18IS NEW CPU CARD MMX
A17B-3300-0201 F16I 6-AXES HIGH SPEED SERVO
A20B-3300-0150 F16I/F18I GRAPHIC 10.4" LCD
A20B-3900-0052 F16I/F18I/F21I/F15I SRAM 512K
A20B-3900-0072 F16I/F18I FROM 8MB
A20B-3900-0131 SDRAM DIMM 8MB
A20B-3900-0042 F16I/18I DRAM 4MB
A16B-2202-0731 F16C OPE.PANEL DI/DO 64:32
A02B-0236-C193 PUNCH PANEL W/CABLE 5M
A02B-0236-C203 POSITION DETECT INTERFACE UNIT 4-AXES
A03B-0815-C001 I/O MODULE DI=24,DO=16
A03B-0815-C002 I/O MODULE DI=24,DO=16
A03B-0815-C003 I/O MODULE DI=24,DO=16
A860-0202-T001 M.P.G. W/O FLANGE USE A860-0203-T001
A06B-6096-H209 X & Y AXIS SERVO AMP MODULE SVM2-40L/40L
A06B-6096-H209 Z & W AXIS SERVO AMP MODULE SVM2-40L/40L
A06B-6096-H104 B AXIS SERVO AMP MODULE SVM1-40L
A06B-6096-H104 6TH AXIS SERVO AMP MODULE SVM1-40L
A06B-6102-H222 SPINDLE AMP MODULE SPM-22
A06B-6087-H130 POWER SUPPLY MODULE PSM-30
A06B-0146-B075 X AXIS AC MOTOR A22/1500 A64 PULSE
A06B-0146-B175 Y AXIS AC MOTOR A22/1500 A64 W/BRAKE STRAIGHT SHAFT
A06B-0146-B075 Z AXIS AC MOTOR A22/1500 A64 PULSE
A06B-0146-B075 W AXIS AC MOTOR A22/1500 A64 PULSE
A06B-0142-B077 B AXIS AC MOTOR A12/2000 I64 PULSE
A06B-0146-B075 6TH AXIS AC MOTOR A22/1500 A64 PULSE

KBT-13A with 16MC

KBT-15

KH-63 with 11MA

KH-80 with 15MA

KV-500

KV-700

KV-1000 with 15MA

KV-1600 with 11MA

KV-2000 with 15MA

LCN-12

LCN-15

MH-400 with 4MB

MH-630 with 11MA
