Do you have a 6TA/ 6MA
control or 6TB/ 6MB?
Fanuc

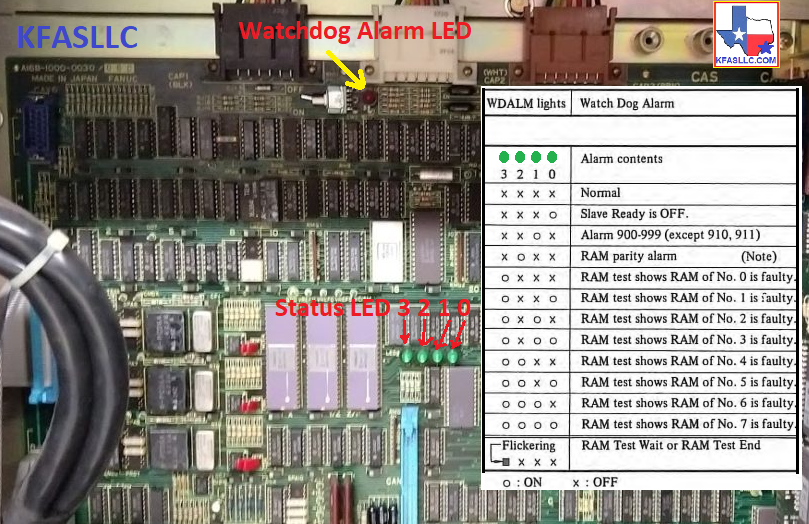

6B Master PCB LEDs
Fanuc 6 Alarms
Fanuc 6TB/ 6MB Manual B-52245E
Input Unit
A14B-0061-B101
A14B-0061-B102
A14B-0061-B103
A14B-0061-B104
Power Supply Unit
A14B-0061-B001 (Old)
A14B-0061-B002 (New)
Power Control Board
A20B-0007-0340
Power Supply Board
A20B-0007-0330
A20B-1000-0030
Tape Reader Unit
A13B-0070-B001
A860-0056-T020
Master Board
A20B-0007-0010 F6A Control
A20B-0008-0410 F6B Control
A16B-1000-0030 F6B Control Level Up
Rom Bord
A20B-0008-0480 F6B
A16B-1200-0150 F6B Control Level Up
MDI Control Board
A20B-0007-0020 F6A LED Display
A20B-0007-0030 F6A/B CRT Display
MDI Key Board
A20B-0007-0430 F6A LED Display
A20B-0007-0440 F6A CRT Display
A20B-1000-0130 F6B CRT Display
A20B-1000-0390 F6MF 14 " CRT
Connection Unit
A20B-0007-0040 (Old)
A20B-0008-0540 (New)
Puncher Interface & PC Board
A20B-0007-0060 F6A w/ PC
A20B-0007-0061 F6A w/o PC
A20B-0008-0440 F6B w/ PC-B
CRT Display Control Borad
A20B-0007-0070 F6A
A20B-1000-0430 F6B
A16B-1200-0170 F6B-Level Up
Bubble Memory
A87L-0001-0015 (A16B-2201-0136) 20M Tape Length
A87L-0001-0016 (A16B-2201-0135) 40M Tape Length
A87L-0001-0017 (A16B-2201-0134) 80M Tape Length
A87L-0001-0018 (A16B-2201-0133) 320M Tape Length
A87L-0001-0084 (A16B-2201-0132) 320M Tape Length
Feedback Control
A20B-0008-0461 Resolver/ Inductosyn Control
CRT Unit
A61L-0001-0072 9 Inch Monochrome
A61L-0001-0076 9 Inch Monochrome
A61L-0001-0074 14 Inch Color
Soft Key Board
A20B-1000-0380 14 inch color
Keys Switch
A55L-0001-0087
Key Tops are numbered with /K for
Individual Key Tops and /S for Set.
