Fanuc Series 0i Model A
Fanuc Series 0i-TA
Fanuc Series 0i-MA
Fanuc Series 0i Mate-TA
Fanuc Series 0i Mate-MA

Perform SRAM Data Backup

Fanuc 0i- Servo Alarms

Related manuals
DESCRIPTIONS: B-63832EN

CONNECTION (HARDWARE): B-63503EN

CONNECTION (FUNCTION): B-63503EN-1

USER’S MANUAL (Lathe): B-63504EN

USER’S MANUAL (Mill): B-63514EN

MAINTENANCE: B-63505EN

PARAMETER: B-63510EN

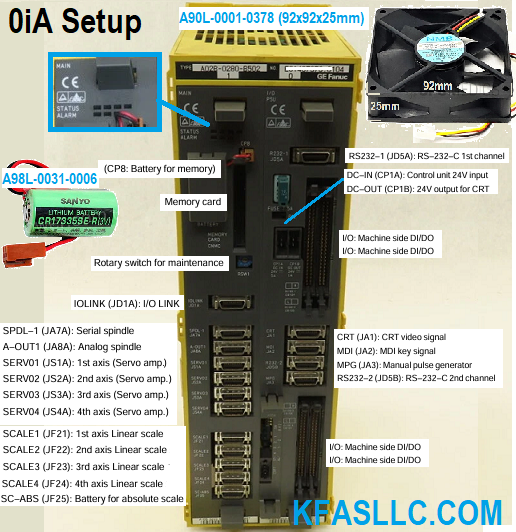

Hardware
A02B–0279–B502 (0i–TA)
A02B–0279–B503 (0i–TA)
A02B–0280–B502 (0i–MA)
A02B–0280–B503 (0i–MA)

Main printed circuit board
A16B–3200–0362

PMC control module
A20B–2900–0142 SA1, with I/O Link
A20B–2901–0660 SA3, with I/O Link

Memory and spindle module
A20B–2902–0642 SRAM: 256KB, analog spindle
A20B–2902–0643 SRAM: 256KB, serial spindle
A20B–2902–0644 SRAM: 0KB, analog spindle
A20B–2902–0645 SRAM: 0KB, serial spindle

FROM and SRAM module
A20B–2902–0341 SRAM: 256KB, FROM: 4MB
A20B–2902–0412 SRAM: 256KB, FROM: 4MB
A20B–2902–0411 SRAM: 256KB, FROM: 6MB

Servo module
A20B–2902–0290 For third/fourth axis

Graphic module
A20B–2900–0310

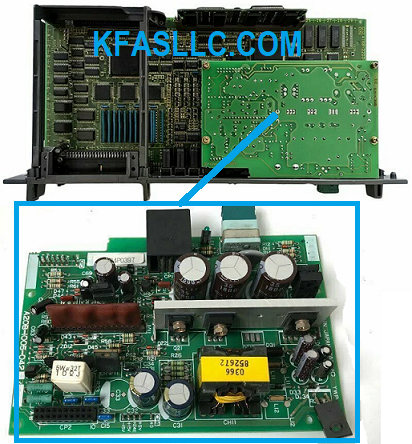

Power supply PC board
A20B–1005–0421

Bult–in I/O board E1
A16B–2203–0073

Bult–in I/O board E4
A16B–2203–0074

Back panel
A20B–2000–0880
