Fanuc A20B-8200-0843 A20B82000843

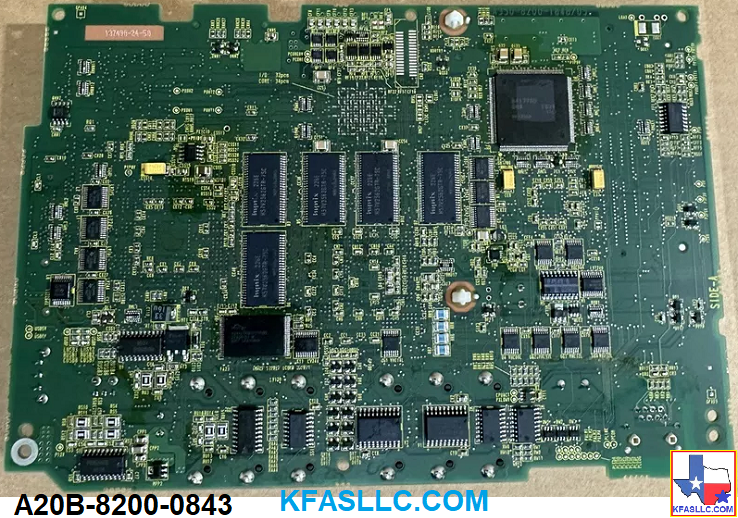

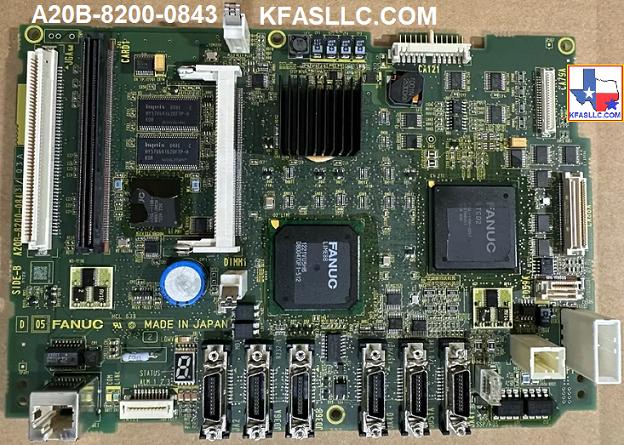

Fanuc A20B-8200-0843 is a Main board A3U for 0i-Model D (0i-TD, 0i-MD)
- 40B0 PMC
- 0043B ID
- USB capability

A20B-8200-0843 connections
COP10A: Servo amplifier (FSSB)
JA2: MDI
JD36A: RS-232-C serial port 1
JD36B: RS-232-C serial port 2
JA40: Analog spindle / high-speed DI
JD51A: I/O Link
JA41:Serial spindle / position coder

Maintenance Manual B-64305EN
