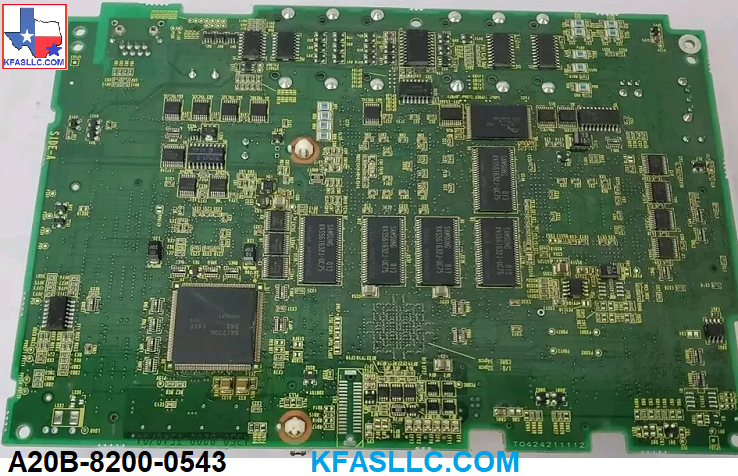

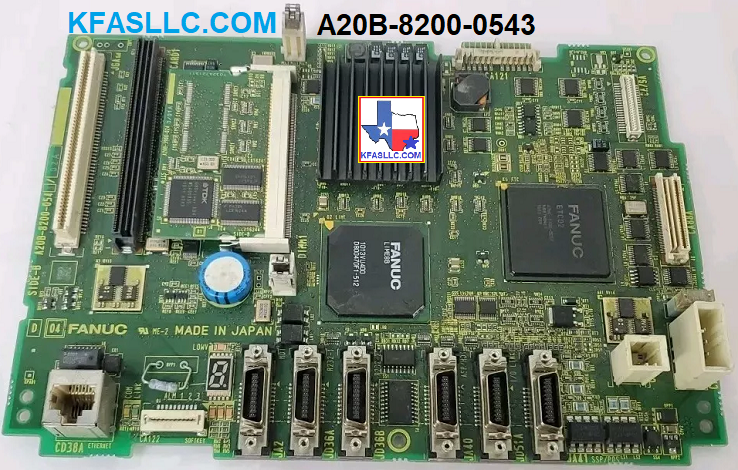

Fanuc A20B-8200-0543 A20B82000543

Fanuc A20B-8200-0543 Main Board is used in 0i-Model D (0i-TD, 0i-MD)
-ID: 0042B
-compatible with A20B-8200-0847

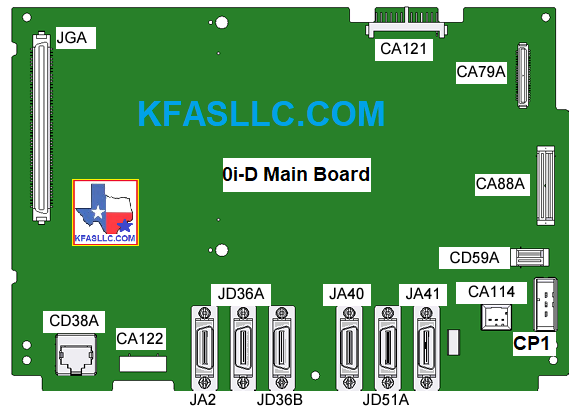

A20B-8200-0543 connectors
COP10A: Servo amplifier (FSSB)
JA2: MDI
JD36A: RS-232-C serial port 1
JD36B: RS-232-C serial port 2
JA40: Analog spindle / high-speed DI
JD51A: I/O Link
JA41:Serial spindle / position coder

Maintenance Manual B-64305EN
