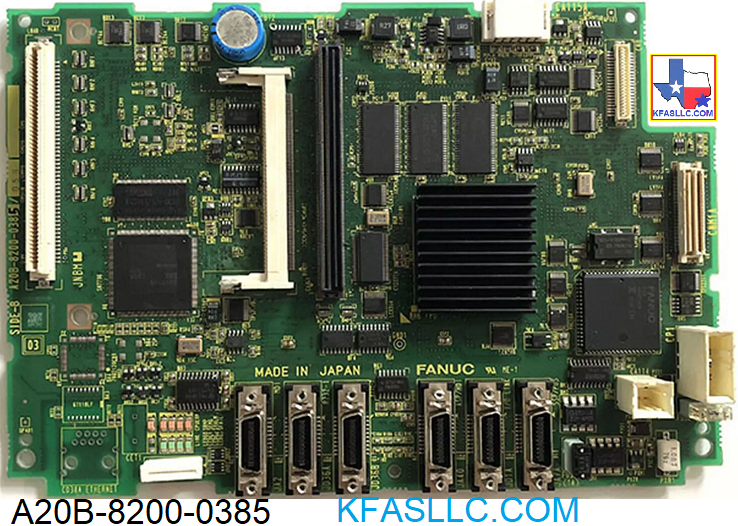

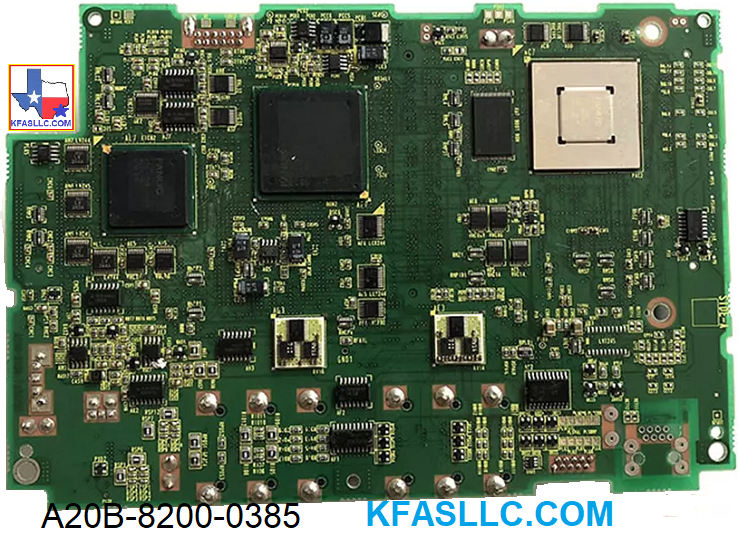

Fanuc 0i-C Main Board A20B-8200-0385

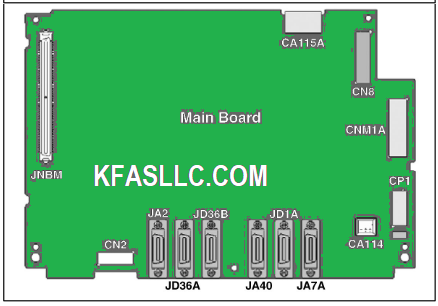

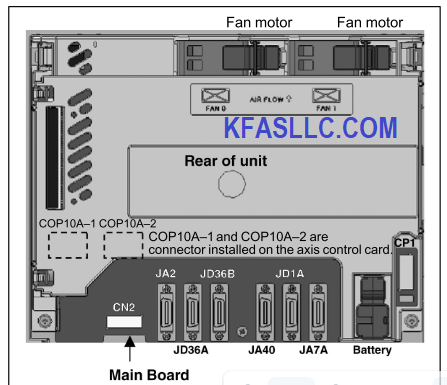

COP10A–1: Servo interface (FSSB)
COP10A–2: Servo interface (FSSB)
JA2: MDI
JD36A: RS–232C serial port
JD36B: RS–232C serial port
JA40: Analog output/high–speed DI
JD1A: I/O link
JA7A: Serial spindle/position coder
CP1: Input power supply DC24V–IN
RECONDITIONED AND TESTED
RETROFITTING/ INTEGRATION SUPPORT NOT INCLUDED WITH PURCHASE.
** Data will be lost during the replacement process and needs to be restored.
