Fanuc 0i-C A20B-8200-0380

Main Board

A20B-8200-0380

A20B-8200-0380 or A20B82000380 is commonly used in Fanuc 0iC series controls.

A20B-8200-0380

A20B-8200-0380

COP10A: Servo interface (FSSB)
JA2: MDI
JD36A: RS–232C serial port
JD36B: RS–232C serial port
JA40: Analog output/high–speed DI
JD1A: I/O link
JA7A: Serial spindle/position coder
CP1: 24VDC–IN

A20B-8200-0380

A20B-8200-0380

Fanuc 0iC MAINTENANCE: B-64115EN

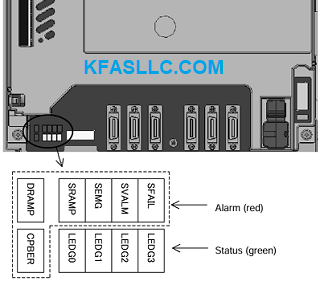

A20B-8200-0380 A20B-8200-0381 LED
A20B-8200-0390 A20B-8200-0391 A20B-8200-0395 LED

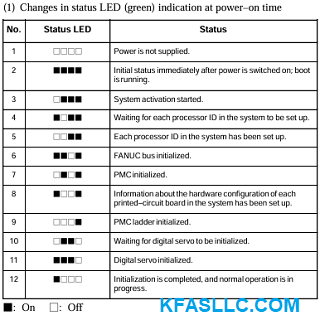

0i-C Main Board status LED

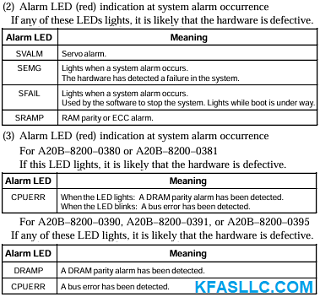

0i-C Main Board Alarm LED.png
