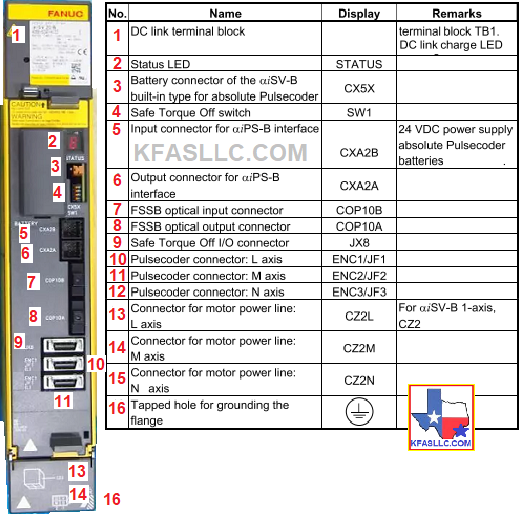

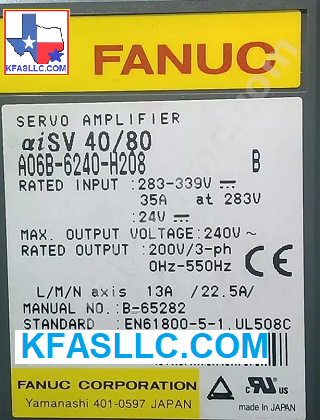

A06B-6240-H208 Alpha i SV 40/80-B
SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME
Rated Input: 283-339VDC 35A
Rated Output Current: L axis: 13A/ M axis: 22.5A
A06B6240H208 B65515EN Maintenance Manual
Understanding Cooling Fan Alarms

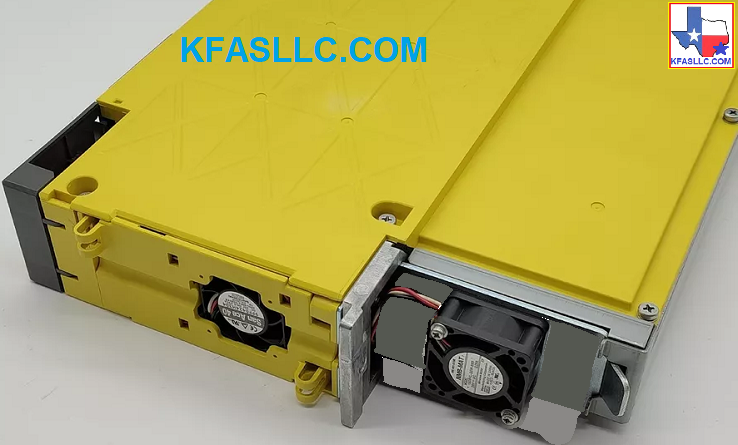

A06B-6240-H208 internal cooling fan: A90L-0001-0580#B
A06B-6240-H208 external cooling fan: A90L-0001-0575#A
A06B-6240-H208 Alarms Meaning and action to be taken
No LED: LED Status us not lit
Alarm Meaning
1
Internal Fan Failure (SV0444)
2
SV Low Volt Driver (SV0015)
3
SV CPU
Bus Failure (SV0013)
4
SV
Drive Off Circuit Failure (SV0012)
5
SV Low DC Link Voltage (SV0435)
6
SV Heat Sink Overheat (SV0602)
7
Dynamic Brake (DB) Relay Failure
(SV0654)
7(blinking) SSM (submodule SM) driving spindle synchronization Failed
(SV0659)
F
External Heat Sink Cooling Fan Stop (SV0601)
P
Amplifier Communication Error (SV604)
8
DC Link Over Current (SV0600)
9(blinking)
SV Failure Open (SV0037)
A(blinking)
Phase Open (SV0036)
b. SV
Current Detector Error (SV0016)
C. M
& N-axis over-current (SV0016)
d. L
& N-axis over-current (SV0016)
8.
L-axis SV IPM alarm (SV0449)
9.
M-axis SV IPM alarm (SV0449)
11
SVM Internal Serial Bus Failure
(SV0017)
11(blinking) SV ROM Data Failure
(SV0018)
A.
N-axis SV IPM alarm (SV0449)
b L
Axis SV Current Error (SV0438)
C M
Axis SV Current Error (SV0438)
d N
Axis SV Current Error (SV0438)
J SV
CPU Watch dog (SV0014)
L FSSB Disconnect COP10A
U FSSB Disconnect COP10B
