A06B-6240-H105 Alpha i SV 80-B
SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

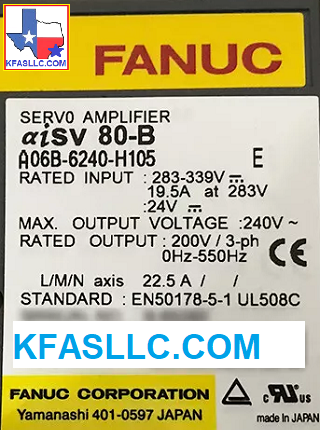

Rated Input: 283-325VDC 19.5A
Rated Output Current: L axis 22.5 A
A06B6240H105 B65515EN Maintenance Manual
Understanding Cooling Fan Alarms
A06B-6240-H105 internal cooling fan: A90L-0001-0580#A
A06B-6240-H105 Alarms Meaning and action to be taken
No LED: LED Status us not lit
Alarm Meaning
1
Internal Fan Failure (SV0444)
2
SV Low Volt Driver (SV0015)
3
SV CPU
Bus Failure (SV0013)
4
SV
Drive Off Circuit Failure (SV0012)
5
SV Low DC Link Voltage (SV0435)
6
SV Heat Sink Overheat (SV0602)
7
Dynamic Brake (DB) Relay Failure
(SV0654)
7(blinking) SSM (submodule SM) driving spindle synchronization Failed
(SV0659)
F
External Heat Sink Cooling Fan Stop (SV0601)
P
Amplifier Communication Error (SV604)
8
DC Link Over Current (SV0600)
9(blinking)
SV Failure Open (SV0037)
A(blinking)
Phase Open (SV0036)
b. SV
Current Detector Error (SV0016)
C. M
& N-axis over-current (SV0016)
d. L
& N-axis over-current (SV0016)
8.
L-axis SV IPM alarm (SV0449)
9.
M-axis SV IPM alarm (SV0449)
11
SVM Internal Serial Bus Failure
(SV0017)
11(blinking) SV ROM Data Failure
(SV0018)
A.
N-axis SV IPM alarm (SV0449)
b L
Axis SV Current Error (SV0438)
C M
Axis SV Current Error (SV0438)
d N
Axis SV Current Error (SV0438)
J SV
CPU Watch dog (SV0014)
L FSSB Disconnect COP10A
U FSSB Disconnect COP10B
Related Part NumbersKFASLLC
kfasllc.com

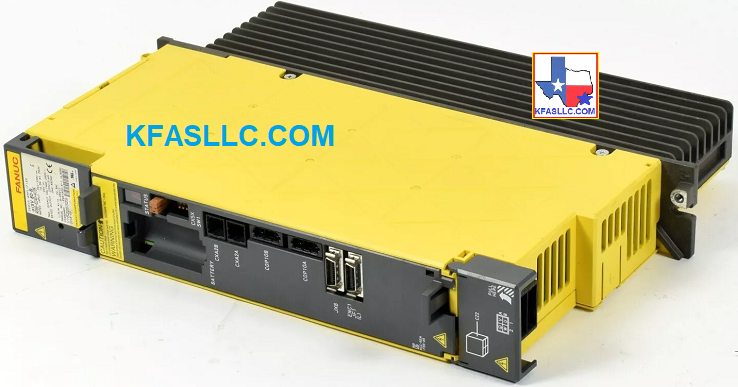

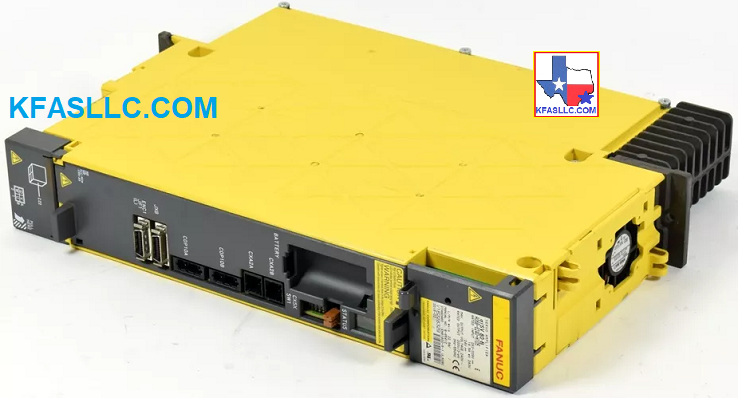

Fanuc A06B-6240-H105 Servo Amplifier Module – Alpha iSV-B Control for High-Performance CNC Applications
Unlock superior motion control and drive precision with the Fanuc A06B-6240-H105 Servo Amplifier Module. Part of the advanced Alpha iSV-B series, this high-performance servo amplifier is engineered to control multiple axes with exceptional responsiveness and stability in industrial CNC applications.
The A06B-6240-H105 provides smooth, efficient power for Fanuc servo motors, ensuring precise positioning, reduced cycle times, and improved productivity. This reliable amplifier module is compatible with a wide range of Fanuc CNC systems, making it a trusted choice for upgrading, retrofitting, or replacing existing components.
Key Features:
Model: A06B-6240-H105
Series: Alpha iSV-B (Servo Amplifier Module)
Axis Support: Typically supports multi-axis control (verify with system specs)
Cooling Type: Integrated fan cooling for thermal efficiency
Compact, Space-Saving Design: Flange-mount style
Compatibility: Fanuc 0iF plus, 30iB, and 31iB CNC controllers
Applications: CNC milling, turning centers, robotic automation, precision machining
Conditions Available: New, refurbished, and exchange-ready options
Each unit is fully tested to meet OEM specifications and is supported by our expert technical team and fast shipping services to reduce your downtime and boost operational efficiency.
Note: Verify compatibility with your CNC system and motor requirements before purchasing. Contact our experts for guidance.
