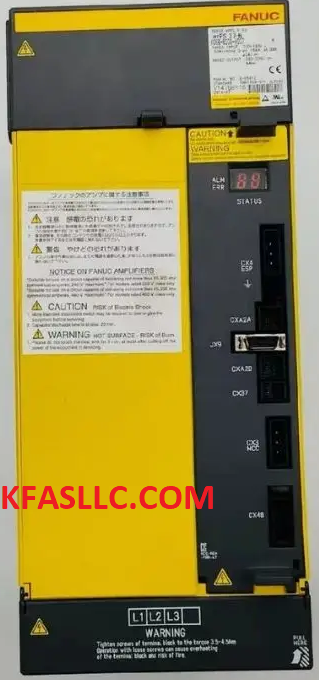

A06B-6200-H030 - AiPS-30 PSM-30i

A06B-6200-H030

Repair Fee: $1885

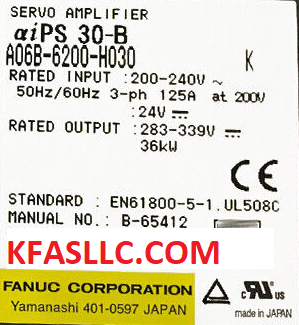

Rated INPUT: 200-240VAC  125A@200V  50Hz/60Hz  3-phase

 Rated OUTPUT: 283-339VDC  36kW

A06B6200H030 B65412E Manual

Related technical information  Connector Info

 A06B-6200-H030 αiPS 30-B Power Supply Module uses internal cooling fan A90L-0001-0581 and external cooling fan A90L-0001-0577

A06B-6200-H030 Alarms Meaning and action to be taken
No LED: LED Status us not lit
AL-A2: Communication Error

AL-01:
PS Overcurrent
AL-02:
PS internal fan failure
AL-03:
PS overload
AL-04:
PS low volt. DC link
AL-05:
PS pre-charge failure
AL-06:
PS low volt. control
AL-07:
PS over volt. DC link
AL-09:
PS ground fault
AL-10:
PS external fan failure
AL-14:
Open phase in the power supply
AL-15:
PS soft thermal
AL-24:

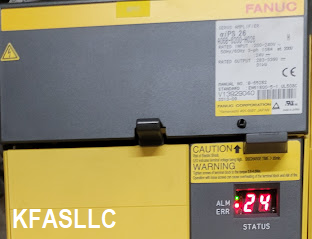

PS hardware error

AC reactor A81L-0001-0186

a06b-6200-h030

The following 24-V power supply units to supply 24 VDC power to αiPS-B are available.
A06B-6200-K502
Output voltage: 24VDC ±10%
Maximum output current: 4.6A
Input power supply voltage range 1φ 85 to 264VAC

A06B-6200-K503
Output voltage: 24VDC ±10%
Maximum output current: 11.2A
Input power supply voltage range:
1φ 85 to 132VAC or
1φ 170 to 264VAC (Selected by switch)
