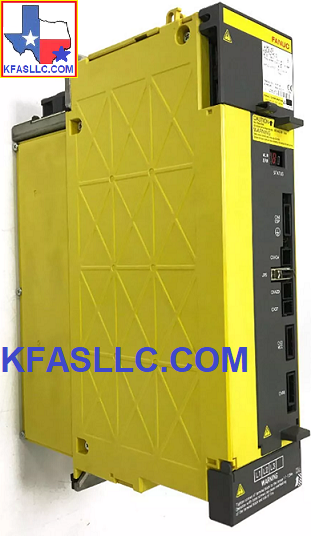

A06B-6200-H011 - AiPS 11B PSM-11i
Repair Fee: $1455

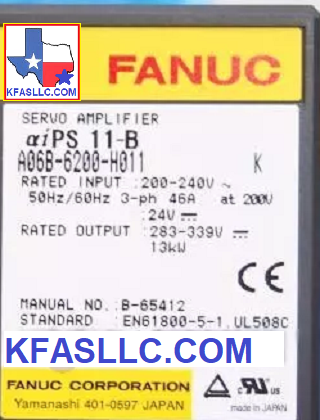

Rated INPUT: 200-240VAC 46A@200V 50Hz/60Hz 3-phase
Rated OUTPUT: 283-339VDC 13kW
A06B6200H011 B65515EN Maintenance Manual
Related technical information Connector Info
A06B-6200-H011 αiPS 11-B Power Supply Module uses internal cooling fan A90L-0001-0580#B and external cooling fan A90L-0001-0576
A06B-6200-H011 Alarms Meaning and action to be taken
No LED: LED
Status us not lit
AL-A2: Communication
Error (SV0604, SP9110)
AL-01: PS Overcurrent
(SV0437, SP9030)
AL-02:
PS internal fan failure
(SV0443, SP9059)
AL-03: PS overload
(SV0431, SP9058)
AL-04: PS low volt. DC link
(SV0433, SP9051)
AL-05: PS pre-charge failure
(SV0442, SP9033)
AL-06: PS low volt. control
(SV0432, SP9111)
AL-07: PS over volt. DC link
(SV0439, SP9011)
AL-09: PS ground fault
AL-10: PS external fan failure
(SV0606, SP9113)
AL-14: Open phase in the power supply
(SV0607, SP9004)
AL-15: PS soft thermal
(SV024, SP9204)
AL-23: PS
Illegal parameter
(SV031, SP9211)
AL-24: PS hardware error
(SV034, SP9212)
AL-25: PS
ext-comp error
(SV040, SP9213)
AL-26: PS
PFB-R error
(SV041, SP9214)
AL-27: PS
PFB-C error
(SV042, SP9215)
AL-28: PS
sub module error
(SV043, SP9216)
Recommends 55A to 75A Breaker and 75A Magnetic Contactor
The following 24-V power supply units to supply 24 VDC power to αiPS-B are available.
A06B-6200-K502
Output voltage: 24VDC ±10%
Maximum output current: 4.6A
Input power supply voltage range 1φ 85 to 264VAC
A06B-6200-K503
Output voltage: 24VDC ±10%
Maximum output current: 11.2A
Input power supply voltage range:
1φ 85 to 132VAC or
1φ 170 to 264VAC (Selected by switch)
