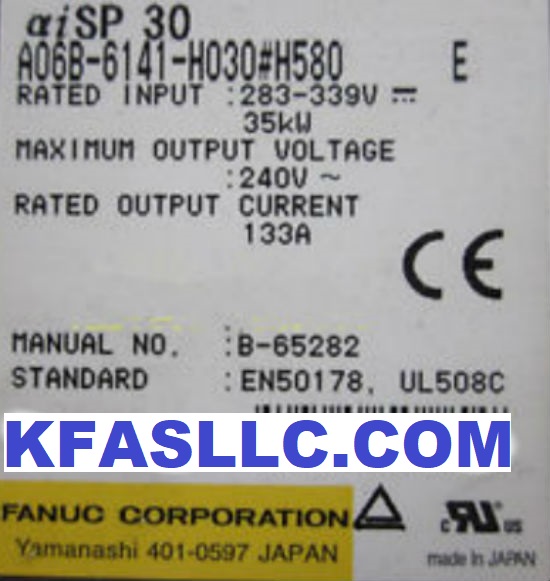

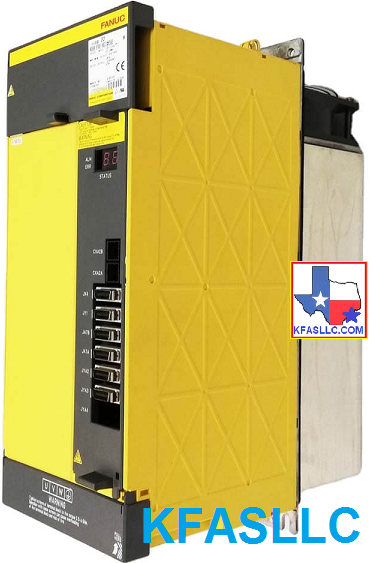

A06B-6141-H030#H580 AiSP-30
SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME
$3,125 ($800
Exchange Credit Available)
Repair Fee: $1870
Rated INPUT: 283-325VDC 35kW
Rated OUTPUT: 230VAC 133A
Related technical information Connection Diagram
A06B-6141-H030 Alpha-i Spindle Amplifier Module uses internal cooling fan A90L-0001-0511 and external cooling fan A90L-0001-0509
A06B-6141-H030 Alarms Meaning
Alarm
Description
0, 00 Amplifier
is ready (normal operating state)
1, 01 Spindle
motor over temp
2, 02 Actual
motor speed is deviated from the commanded speed.
3, 03
DC link fuse has blown
4, 04 Open
phase detected in the 3-phase input to the the PSM.
6, 06 Temperature
sensor disconnected
7, 07 Excessive
speed
9, 09 The
heat sink of the SPM overheat.
11 PSM
detected that the DC link overvoltage
12 DC
link overcurrent
15 Spindle
switching operation sequence error.
18 EPROM
checksum error.
19 U
phase current detection error.
20
V phase current detection error.
21 Position
sensor polarity setting incorrect
24 Serial
transfer data error (or The power to the CNC is turned off).
27 Position
coder signal disconnect.
29 An
excessive load
30 Overcurrent
in the PSM.
31 Motor
lock alarm.
32 Serial
communication LSI memory error.
33 The
PSM/DC Link charge error.
34 Parameter
data outof range.
36 Error
counter overflowed.
37 Speed
detector parameter error
41 Position
coder one-rotation signal detection error.
42 Position
coder one-rotation signal not detected.
46 Position
coder one-rotation signal detection error during thread cutting.
47 Position
coder signal error.
50 Excessive
speed command in spindle synchronization.
51 PSM
DC link undervoltage.
52 The
synchronization signal (ITP) error.
53 The
synchronization signal (ITP) error.
54 Current
overload alarm
55 Abnormal
spindle switching control.
56 Internal
cooling fan error.
58
PSM internal temperature high.
59 PSM
internal cooling fan stopped.
66 Communication
alarm between spindle and SPM.
73 Motor
sensor is disconnected.
74 SPM
CPU alarm
75 SPM
CPU alarm
79 Abnormal
initial start up alarm
81
Motor sensor one-rotation signal detection error.
82 Motor
sensor one-rotation signal not detected
83 Motor
sensor signal error
84 Speed
sensor disconnected.
85 Spindle
sensor one-rotation signal detection error.
86 Spindle
sensor one-rotation signal not detected.
87 Spindle
sensor signal error
88 SPM
External cooling error.
A, A1, A2 SPM
Program ROM error
b0 Communication
error between amplifier modules
C0, C1, C2 Communication
data error between the CNC and SPM.
Related Part NumbersKFASLLC kfasllc.com
A16B-2203-0872A50L-0001-0340
