A06B-6120-H0100 PSM-100HVi
$3,925 ($900
Exchange Credit Available)
Repair/ Return Option Available At $2550.
Rated INPUT: 400-480VAC 154A@400V 50Hz/60Hz 3-phase
Rated OUTPUT: 565-679VDC 82kW

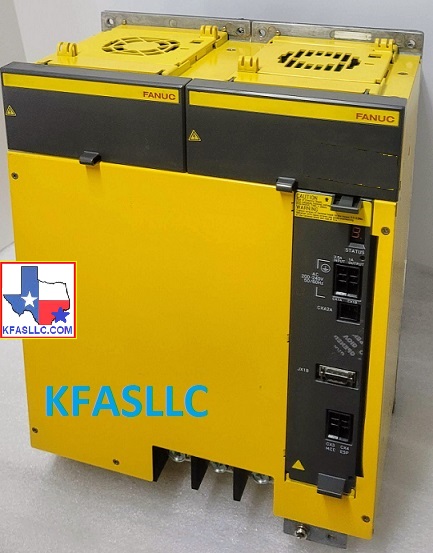

Related technical information View Picture
A06B-6120-H100 Alpha-i Power Supply Module uses internal cooling fan A90L-0001-0511 and external cooling fan A50L-0001-0509
A06B-6120-H100 Alarms Meaning and action to be taken
AL-1 : Overcurrent
in the Main Power Module.
AL-2 : Cooling Fan
Stopped.
AL-3 : The temperature
of the main circuit heat sink has risen abnormally.
AL-4 : The DC Voltage
has dropped.
AL-5 : The main
Capacitor was not recharged within the specified time.
AL-6 : The Input Power
Supply is Abnormal.
AL-7 : In the main
circuit the DC Voltage is abnormally high.
AL-A : External cooling
fan (located on heat sink) has stopped
AL-E : The Input Power
Supply is Abnormal (open phase)
Related Part NumbersKFASLLC kfasllc.com
The Fanuc A06B-6120-H100 Power Supply Module is a robust, high-capacity power solution engineered for industrial CNC systems requiring superior reliability and energy efficiency. As part of Fanuc’s powerful Alpha Power Supply Module series, this unit provides stable and continuous power to spindle and servo drives, even under high-load conditions.
Ideal for large CNC machines and automation systems, the A06B-6120-H100 ensures minimal downtime and smooth operation in production-critical environments. Its compact design and fan-cooled enclosure make it an excellent choice for installations with limited space.
Key Features:
Model: A06B-6120-H100
Series: Fanuc Alpha Power Supply Module
Voltage Class: 400V
High-Capacity Output: Designed for large-scale CNC systems
Cooling Type: Integrated fan for efficient thermal management
Mounting: Compact flange-mount design for space-saving installation
Compatibility: Works seamlessly with Fanuc spindle and servo amplifier modules
Applications: CNC machining centers, lathes, robotics, and automated production lines
Condition Options: Available in new, refurbished, and exchange-ready units
Each unit is rigorously tested and includes technical support to ensure compatibility and performance. Fast shipping is available to minimize downtime and keep your production running smoothly.
Note: Please verify compatibility with your specific CNC system before purchase. Contact our support team for expert guidance.
Competitive pricing
Fast, reliable delivery
12 Month Warranty included
Trusted source for authentic FANUC parts
Expert support from experienced CNC technicians
