A06B-6120-H075 PSM-i 75HV
SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME
$3,625 ($900
Exchange Credit Available)
Repair/ Return Option Available At $2125.

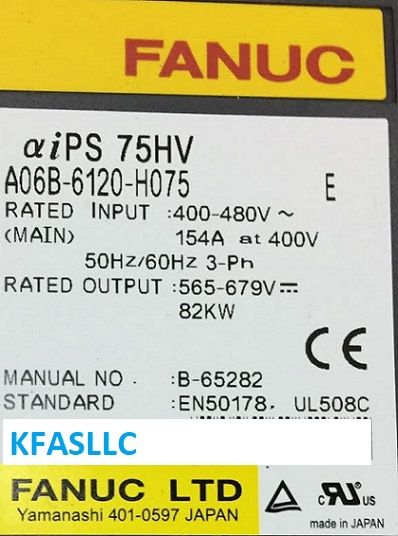

Rated INPUT: 400-480VAC 154A@400V 50Hz/60Hz 3-phase
Rated OUTPUT: 565-679VDC 82kW
Related technical information View Picture

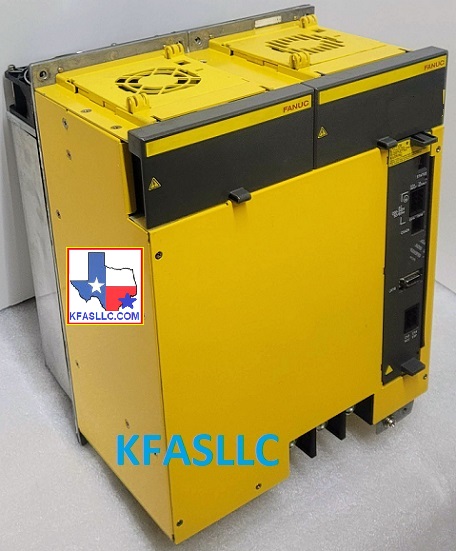

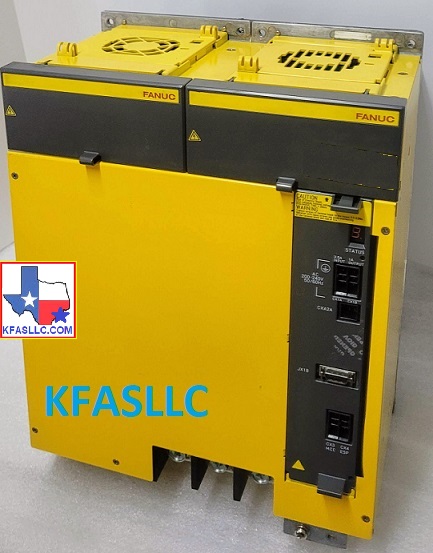

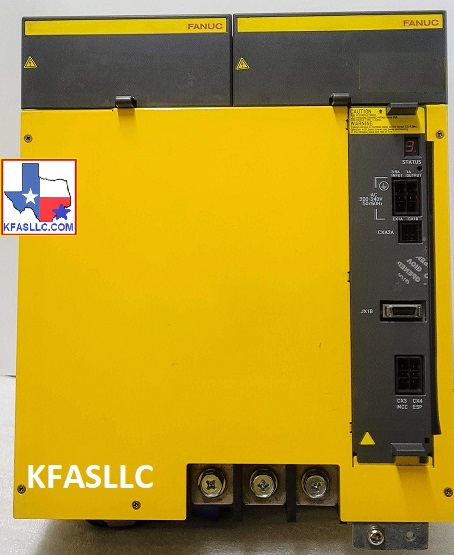

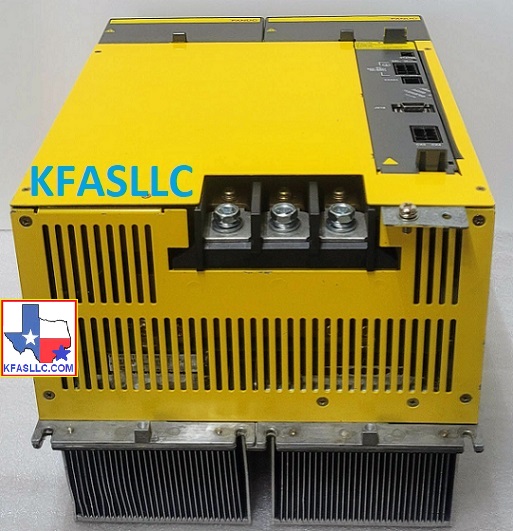

A06B-6120-H075 Alpha-i Power Supply Module uses internal cooling fan A90L-0001-0511 and external cooling fan A50L-0001-0509
Competitive pricing
Fast, reliable delivery
12 Month Warranty included
Trusted source for authentic FANUC parts
Expert support from experienced CNC technicians
A06B-6120-H075 Alarms Meaning and action to be taken
AL-1 : Overcurrent
in the Main Power Module.
AL-2 : Cooling Fan
Stopped.
AL-3 : The temperature
of the main circuit heat sink has risen abnormally.
AL-4 : The DC Voltage
has dropped.
AL-5 : The main
Capacitor was not recharged within the specified time.
AL-6 : The Input Power
Supply is Abnormal.
AL-7 : In the main
circuit the DC Voltage is abnormally high.
AL-A : External cooling
fan (located on heat sink) has stopped
AL-E : The Input Power
Supply is Abnormal (open phase)
