Repair/ Return Option Available At $1265

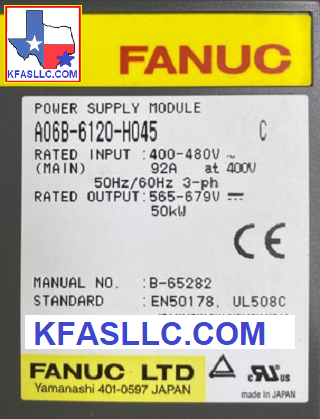

Rated INPUT: 400-480VAC 92A@400V 50Hz/60Hz 3-phase
Rated OUTPUT: 565-679VDC 50kW
Related technical information Connector Info

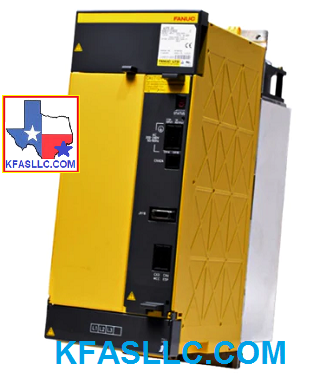

A06B-6120-H045 Alpha-i Power Supply Module uses
internal
cooling fan A90L-0001-0441#39 and
external cooling fan
A90L-0001-0509
A06B-6120-H045 Alarms Meaning and action to be taken
AL-1 : Overcurrent
in the Main Power Module.
AL-2 : Cooling Fan
Stopped.
AL-3 : The temperature
of the main circuit heat sink has risen abnormally.
AL-4 : The DC Voltage
has dropped.
AL-5 : The main
Capacitor was not recharged within the specified time.
AL-6 : The Input Power
Supply is Abnormal.
AL-7 : In the main
circuit the DC Voltage is abnormally high.
AL-A : External cooling
fan (located on heat sink) has stopped
AL-E : The Input Power
Supply is Abnormal (open phase)
Related Part NumbersKFASLLC kfasllc.com
A20B-2100-0761A06B-6120-H045 is part of Fanuc Alpha-i Series family with advanced features including
・Utilizes Power source regeneration technology to return regeneration energy of the motor to a power source. Compared with the resistor regeneration, power consumption is greatly reduced.
・Compact, reduced Wiring utilizing fiber optics communications and easy maintenance features such as ability to replace cooling fans without disassembling the unit.
