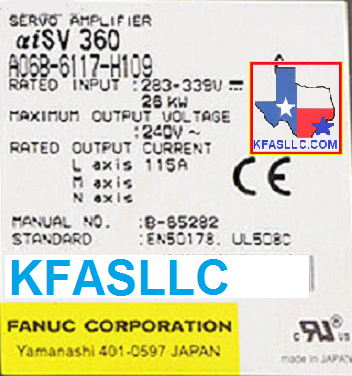

A06B-6117-H109 SVM-i 1-360i

a06b-6117-h109

Rated Input: 283-325VDC 26 kW

Rated Output Current: L axis   115 A

A06B6117H109 B65282E Manual

Related technical information

Understanding Cooling Fan Alarms

A06B-6117-H109 Alarms Meaning and action to be taken

Alarm     Meaning
1              Internal Fan Stopped (FAL)
2              Low control power voltage (LV5V)
5              Low DC link voltage (LVDC)
6              Inverter Overheat          Alarm "6" or "b"
F              External Cooling Fan Stop
P              Communication Error
8              L-axis over-current (HCL)
9              M-axis over-current (HCM)
A              N-axis over-current (HCN)
b             L & M-axis over-current     Alarm "6" or "b"
C             M & N-axis over-current
d             L & N-axis over-current
E              L, M, N -axis over-current
8.             L-axis IPM alarm (IPML)
9.             M-axis IPM alarm (IPMM)
A.             N-axis IPM alarm (IPMN)
b.            L & M-axis IPM alarm
C.            M & N-axis IPM alarm
d.            L & N-axis IPM alarm
E.             L, M, N-axis IPM alarm
L            FSSB Disconnect COP10A
U            FSSB Disconnect COP10B

A06B-6117-H109

Related Part Numbers
A20B-2100-0830
A16B-2203-0625
A20B-2101-0070
A16B-2203-0875

A90L-0001-0511
A90L-0001-0509

A06B-6117-H109 is used with αiS 50/3000, αiS 50/3000 FAN, αiS 100/2500, αiS 100/2500 FAN, αiS 200/2500, αiS 200/2500 FAN, αiS 300/2000 ,αiS 500/2000

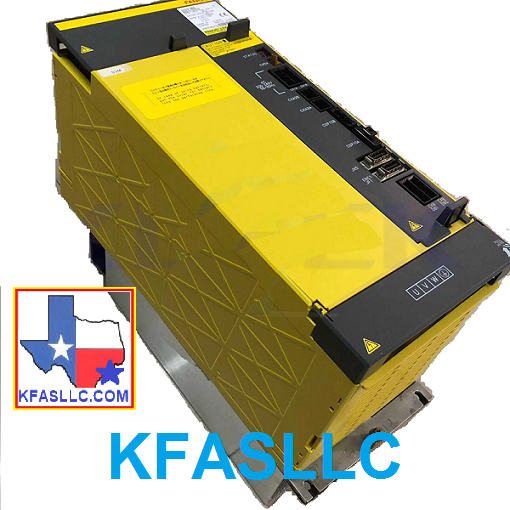

Fanuc A06B-6117-H109 Servo Amplifier Module – Alpha i SVM CNC Servo Drive for Multi-Axis Precision

The Fanuc A06B-6117-H109 Servo Amplifier Module is a high-performance solution engineered for precision motion control in advanced CNC systems. Part of the Alpha i SVM (Servo Power Module) series, this servo drive is ideal for powering multiple axes with reliable and responsive servo motor control, helping you achieve superior machining accuracy and efficiency.

Whether you're upgrading a CNC system or replacing a failed unit, the A06B-6117-H109 ensures seamless integration with a wide range of Fanuc controllers and machines, delivering high-speed feedback and consistent torque for demanding industrial applications.

Key Features:

All units are fully tested for functionality and reliability. Backed by expert support and fast shipping to minimize your machine downtime.
