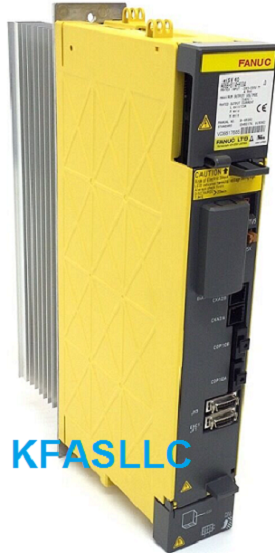

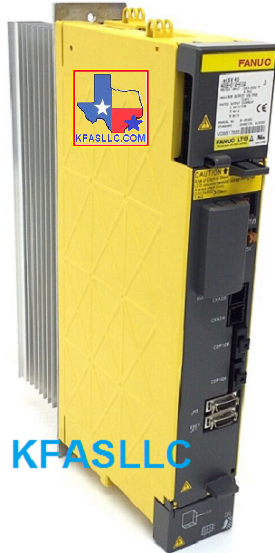

A06B-6117-H105 αiSV 80i

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

$1,400 ($300 Exchange Credit Available)

Select Shipping Option
Your UPS Account#

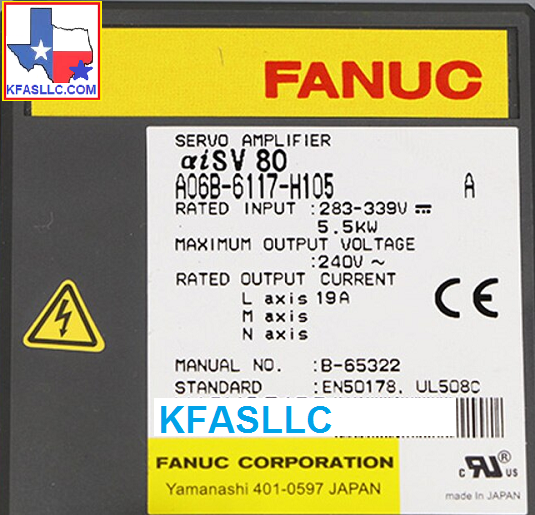

Rated Input: 283-325VDC 5.5 kW

Rated Output Current: L axis    19 A

A06B6117H105 B65282E Manual

Related technical information

Understanding Cooling Fan Alarms

A06B-6117-H105 Alarms Meaning and action to be taken

Alarm     Meaning
1              Internal Fan Stopped (FAL)
2              Low control power voltage (LV5V)
5              Low DC link voltage (LVDC)
6              Inverter Overheat          Alarm "6" or "b"
F              External Cooling Fan Stop
P              Communication Error
8              L-axis over-current (HCL)
9              M-axis over-current (HCM)
A              N-axis over-current (HCN)
b             L & M-axis over-current     Alarm "6" or "b"
C             M & N-axis over-current
d             L & N-axis over-current
E              L, M, N -axis over-current
8.             L-axis IPM alarm (IPML)
9.             M-axis IPM alarm (IPMM)
A.             N-axis IPM alarm (IPMN)
b.            L & M-axis IPM alarm
C.            M & N-axis IPM alarm
d.            L & N-axis IPM alarm
E.             L, M, N-axis IPM alarm
L            FSSB Disconnect COP10A
U            FSSB Disconnect COP10B

Related Part NumbersKFASLLC kfasllc.com
A16B-2203-0661
A20B-2100-0830
A20B-2201-0040

A06B-6117-H105 is used with αiS 8/4000, αiS 8/6000, αiS12/4000, αiF12 /3000 αiF22 /3000

Fanuc A06B-6117-H105 Servo Amplifier Module – Alpha i SVM CNC Servo Drive for Multi-Axis Precision

The Fanuc A06B-6117-H105 Servo Amplifier Module is a high-performance solution engineered for precision motion control in advanced CNC systems. Part of the Alpha i SVM (Servo Power Module) series, this servo drive is ideal for powering multiple axes with reliable and responsive servo motor control, helping you achieve superior machining accuracy and efficiency.

Whether you're upgrading a CNC system or replacing a failed unit, the A06B-6117-H105 ensures seamless integration with a wide range of Fanuc controllers and machines, delivering high-speed feedback and consistent torque for demanding industrial applications.

Key Features:

All units are fully tested for functionality and reliability. Backed by expert support and fast shipping to minimize your machine downtime.
