A06B-6117-H103 SVM-i 1-20i

Repair/ Return Option Available At $750.

Rated Input: 283-325VDC 2.5 kW

Rated Output Current: L axis    6.5 A

A06B6117H103 B65282E Manual

Related technical information

Understanding Cooling Fan Alarms

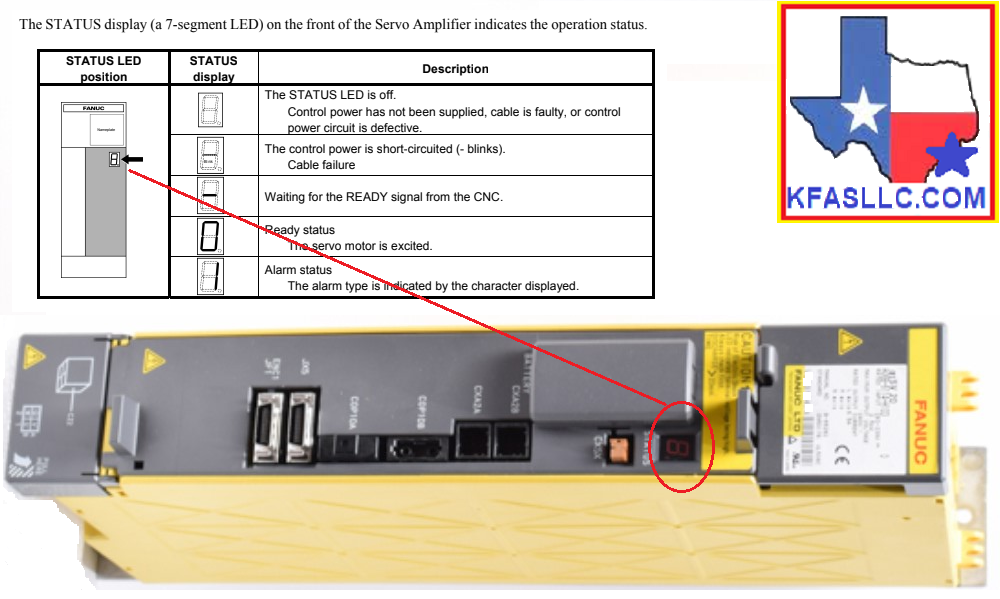

A06B-6117-H103 Alarms Meaning and action to be taken

Alarm     Meaning
1              Internal Fan Stopped (FAL)
2              Low control power voltage (LV5V)
5              Low DC link voltage (LVDC)
6              Inverter Overheat          Alarm "6" or "b"
F              External Cooling Fan Stop
P              Communication Error
8              L-axis over-current (HCL)
9              M-axis over-current (HCM)
A              N-axis over-current (HCN)
b             L & M-axis over-current     Alarm "6" or "b"
C             M & N-axis over-current
d             L & N-axis over-current
E              L, M, N -axis over-current
8.             L-axis IPM alarm (IPML)
9.             M-axis IPM alarm (IPMM)
A.             N-axis IPM alarm (IPMN)
b.            L & M-axis IPM alarm
C.            M & N-axis IPM alarm
d.            L & N-axis IPM alarm
E.             L, M, N-axis IPM alarm
L            FSSB Disconnect COP10A
U            FSSB Disconnect COP10B

Related Part NumbersKFASLLC kfasllc.com
A16B-2203-0691
A20B-2100-0830
A20B-2201-0040

A06B-6117-H103 is used with αiS 2/5000, αiS 2/6000, αiS 4/5000, αiF 1/5000, αiF 2/5000 βiS 0.4/5000, βiS 0.5/6000, βiS 1/6000, βiS 2/4000, βiS 4/4000, βiS 8/3000, βiS 12/2000

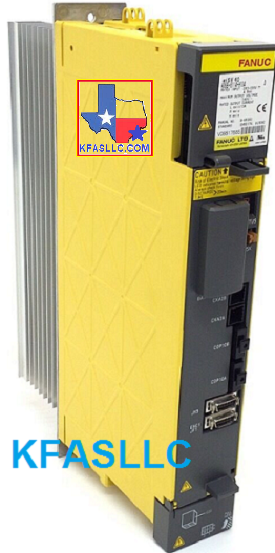

Fanuc A06B-6117-H103 Servo Amplifier Module – Alpha i SVM CNC Servo Drive for Multi-Axis Precision

The Fanuc A06B-6117-H103 Servo Amplifier Module is a high-performance solution engineered for precision motion control in advanced CNC systems. Part of the Alpha i SVM (Servo Power Module) series, this servo drive is ideal for powering multiple axes with reliable and responsive servo motor control, helping you achieve superior machining accuracy and efficiency.

Whether you're upgrading a CNC system or replacing a failed unit, the A06B-6117-H103 ensures seamless integration with a wide range of Fanuc controllers and machines, delivering high-speed feedback and consistent torque for demanding industrial applications.

Key Features:

All units are fully tested for functionality and reliability. Backed by expert support and fast shipping to minimize your machine downtime.

Note: Confirm system compatibility before ordering. Contact our technical team for assistance.
