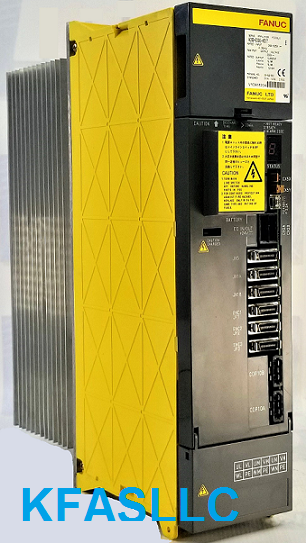

A06B-6096-H305  SVM3-12/12/40

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

Repair/ Return Option Also Available At $1400.

E-mail:  service@kfasllc.com

A06B-6096-H305

$2,450 ($750 Exchange Credit Available)

Select Desire Shipping Option
Your UPS Account# FOR COLLECT

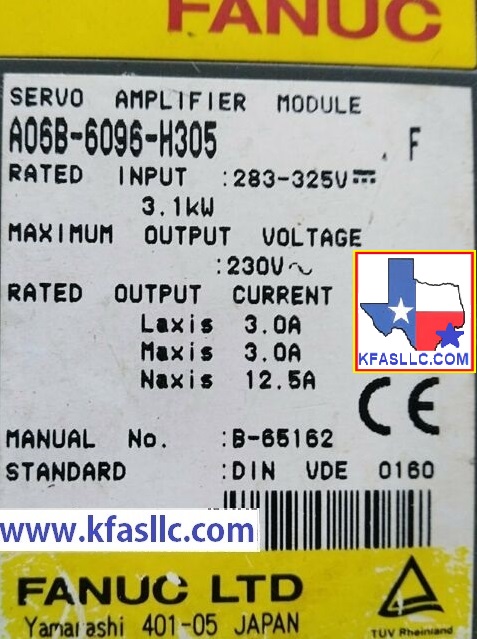

Dimensions (H 380 x W 90 x D 307 mm)

Rated Input: 283-325VDC 3.7 kW

Rated Output Current: L axis 3.0A, M axis 3.0A, N axis 12.5A

A06B6096H305 B65165E Manual

Related technical information

Alarm 368 369 Note    Alarm 466 Note

A06B-6096-H305 Alarms Meaning and action to be taken

Alarm     Meaning
1              Internal Fan Stopped (FAL)
2              Low control power voltage (LV5V)
5              Low DC link voltage (LVDC)
8              L-axis over-current (HCL)
9              M-axis over-current (HCM)
A              N-axis over-current (HCN)
b             L & M-axis over-current
C             M & N-axis over-current
d             L & N-axis over-current
E              L, M, N -axis over-current
8.             L-axis IPM alarm (IPML)
9.             M-axis IPM alarm (IPMM)
A.             N-axis IPM alarm (IPMN)
b.            L & M-axis IPM alarm
C.            M & N-axis IPM alarm
d.            L & N-axis IPM alarm
E.             L, M, N-axis IPM alarm
L            FSSB Disconnect COP10A
U            FSSB Disconnect COP10B

a06b-6096-h305

Fanuc Alpha Servo A06B-6096-H305 features
high power and high acceleration due to optimum winding design and effective cooling structure.
Increased torque at low speed range
High precision and high resolution pulse coder feedback (1000000 pulses/revolution)
Available with both 200V input and 400V input
Compact size with latest intelligent Power Module (IPM) technology.
Utilize power source regeneration technology to return regeneration energy of the motor to a power source.
Compared with the resistor regeneration, power consumption is largely reduced.

The FANUC A06B-6096-H305 is a high-performance 3-axis servo amplifier module designed for FANUC CNC systems. Engineered for accuracy and durability, this original FANUC component delivers precise motion control and consistent operation in demanding industrial environments. Whether you're replacing a failed unit or upgrading your equipment, the A06B-6096-H305 ensures minimal downtime and optimized machine performance.

✅ Genuine FANUC OEM part – Model A06B-6096-H305
✅ Supports 3-axis servo control for  CNC machines
✅ Fully tested and inspected for quality assurance
✅ Ideal for maintenance, repair, and retrofit projects
✅ Fast shipping and technical support available

A trusted solution for manufacturers, CNC technicians, and repair professionals looking to keep their automation systems running efficiently.
