KFAS: Fanuc Parts & Repair

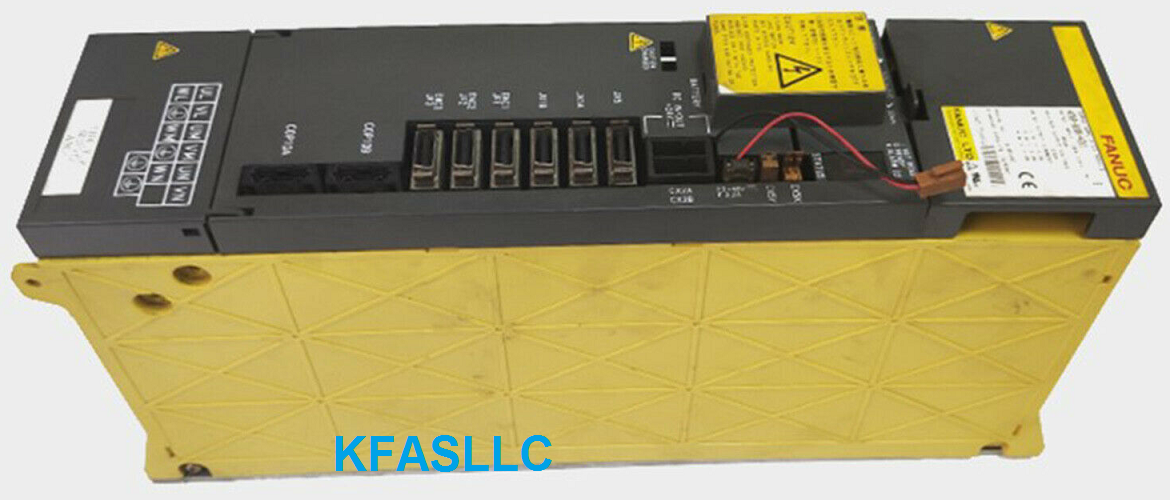

A06B-6096-H304  SVM3-20/20/20

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

Repair/ Return Option Also Available At $1400.

E-mail:  service@kfasllc.com

A06B-6096-H304

$2,450 ($750 Exchange Credit Available)

Select Desire Shipping Option
Your UPS Account# FOR COLLECT

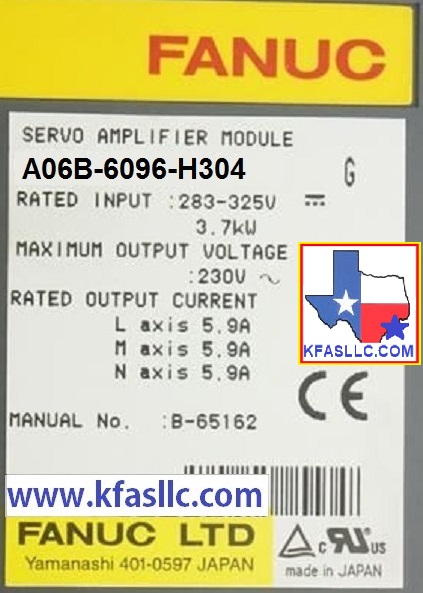

Dimensions (H 380 x W 90 x D 307 mm)

Rated Input: 283-325VDC 3.7 kW

Rated Output Current: L axis 5.9A, M axis 5.9A, N axis 5.9A

A06B6096H304 B65165E Manual

Related technical information

Alarm 368 369 Note    Alarm 466 Note

A06B-6096-H304 Alarms Meaning and action to be taken

Alarm     Meaning
1              Internal Fan Stopped (FAL)
2              Low control power voltage (LV5V)
5              Low DC link voltage (LVDC)
8              L-axis over-current (HCL)
9              M-axis over-current (HCM)
A              N-axis over-current (HCN)
b             L & M-axis over-current
C             M & N-axis over-current
d             L & N-axis over-current
E              L, M, N -axis over-current
8.             L-axis IPM alarm (IPML)
9.             M-axis IPM alarm (IPMM)
A.             N-axis IPM alarm (IPMN)
b.            L & M-axis IPM alarm
C.            M & N-axis IPM alarm
d.            L & N-axis IPM alarm
E.             L, M, N-axis IPM alarm
L            FSSB Disconnect COP10A
U            FSSB Disconnect COP10B

a06b-6096-h304

A06B-6096-H304 is typically used with Fanuc 16iTA, 16iMA, 18iTA, 18iMA, 21iTA, and 21iMA controls. Typically found on machines such as Mori Seiki MV-40E

Fanuc Alpha Servo A06B-6096-H305 features
high power and high acceleration due to optimum winding design and effective cooling structure.
Increased torque at low speed range
High precision and high resolution pulse coder feedback (1000000 pulses/revolution)
Available with both 200V input and 400V input
Compact size with latest intelligent Power Module (IPM) technology.
Utilize power source regeneration technology to return regeneration energy of the motor to a power source.
Compared with the resistor regeneration, power consumption is largely reduced.

Related Part NumbersKFASLLC kfasllc.com

A50L-0001-0304 and A50L-0001-0273/A

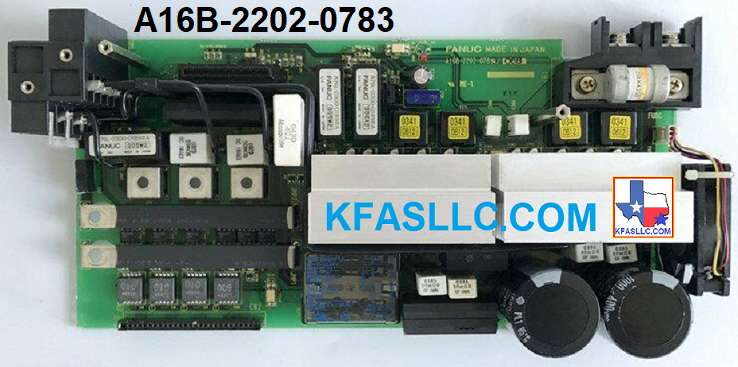

A20B-2100-0260A16B-2202-0783
A90L-0001-0385
