Repair/ Return Option Also Available At $900.
E-mail: service@kfasllc.com
$1,700 ($600
Exchange Credit Available)
Dimensions (H 380 x W 90 x D 307 mm)

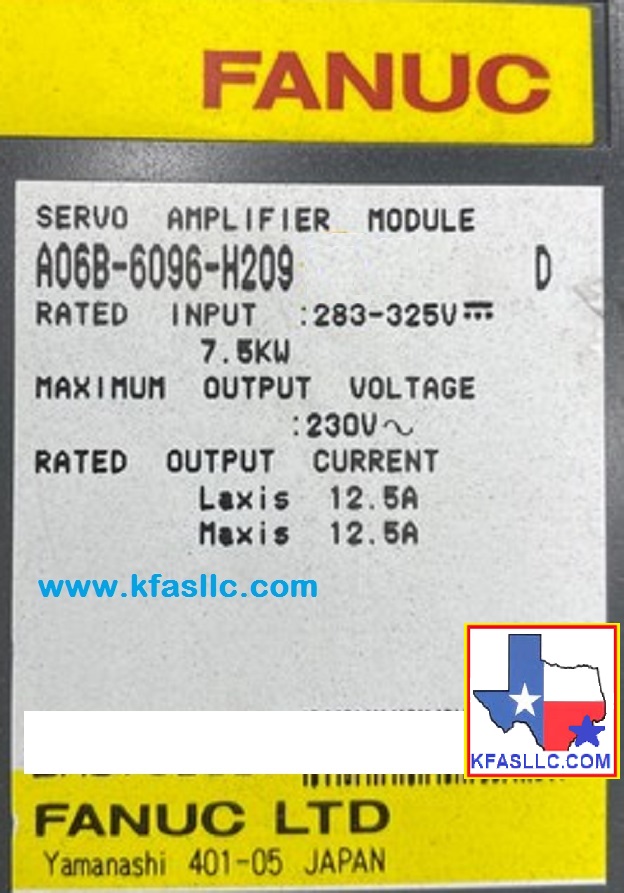

Rated Input: 283-325VDC 7.5 kW
Rated Output Current: L axis 12.5A, M axis 12.5A
Alarm 368 369 Note Alarm 466 Note
A06B-6096-H209 Alarms Meaning and action to be taken
Alarm Meaning
1
Internal Fan Stopped (FAL)
2
Low control power voltage (LV5V)
5
Low DC link voltage (LVDC)
8
L-axis over-current (HCL)
9
M-axis over-current (HCM)
A
N-axis over-current (HCN)
b L
& M-axis over-current
C M
& N-axis over-current
d L
& N-axis over-current
E
L, M, N -axis over-current
8.
L-axis IPM alarm (IPML)
9.
M-axis IPM alarm (IPMM)
A.
N-axis IPM alarm (IPMN)
b. L
& M-axis IPM alarm
C. M
& N-axis IPM alarm
d. L
& N-axis IPM alarm
E.
L, M, N-axis IPM alarm
L FSSB
Disconnect COP10A
U FSSB
Disconnect COP10B
A06B-6096-H209 is typically used with Fanuc 16iTA, 16iMA, 18iTA, 18iMA,
21iTA, and 21iMA controls.
Typically found on machines such as Mori Seiki ZL-200,
Kuraki KBM-11X

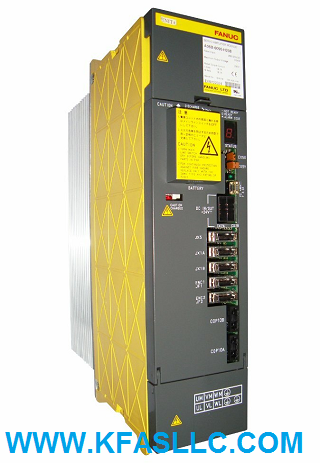

Fanuc Alpha Servo A06B-6096-H209 features
・high power and high acceleration due to optimum winding design and effective cooling structure.
・Increased torque at low speed range
・High precision and high resolution pulse coder feedback (1000000 pulses/revolution)
・Available with both 200V input and 400V input
・Compact size with latest intelligent Power Module
(IPM) technology.
・Utilize power source regeneration technology to return regeneration energy of the motor to a power source.
Compared with the resistor regeneration, power consumption is largely reduced.
Related Part NumbersKFASLLC kfasllc.com
A50L-0001-0304
A230-0526-X001/B
A230-0527-X001/A
A230-0527-X002
A20B-2100-0253 or A20B-2100-0543
A16B-2202-0775
A16B-2203-0595
A90L-0001-0385
©
Copyright 2024 KFASLLC Houston, Texas, USA
