SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME
Repair/ Return Option Also Available At $700.
E-mail: service@kfasllc.com
$1,400 ($400
Exchange Credit Available)

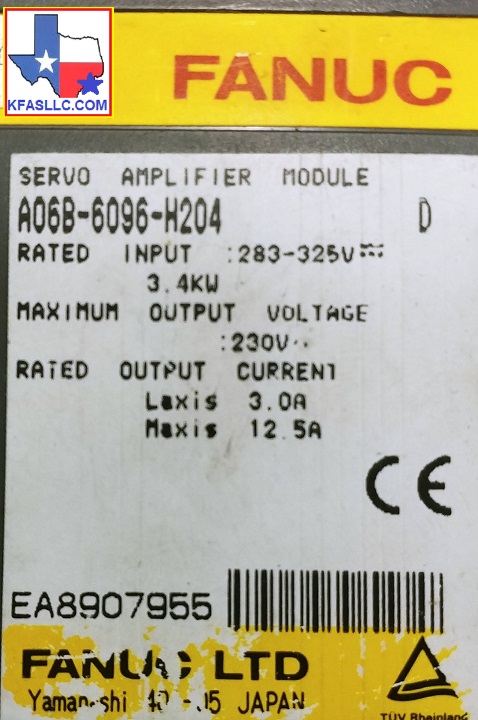

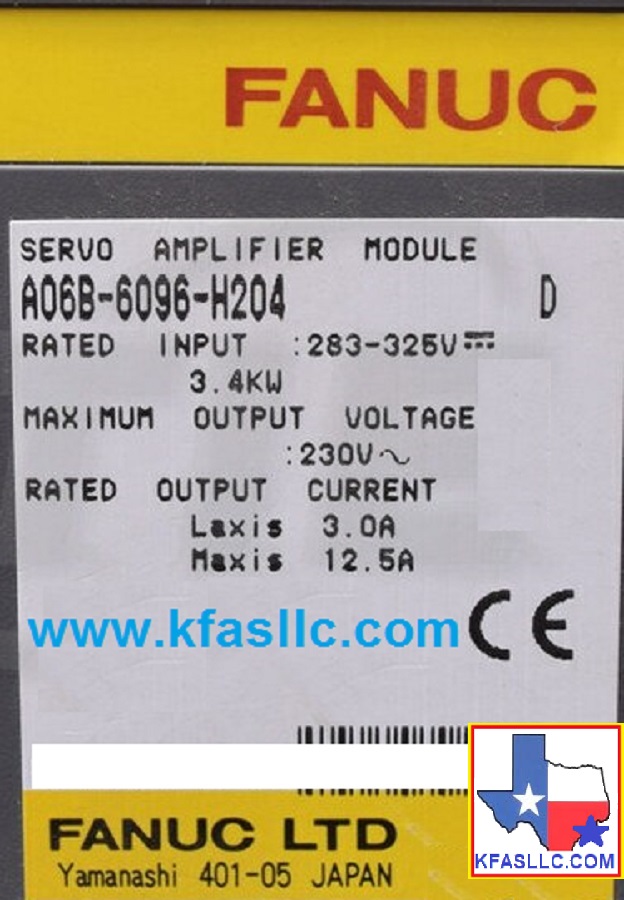

Dimensions (H 380 x W 60 x D 307 mm)
Rated Input: 283-325VDC 3.4 kW
Rated Output Current: L axis 3.0A, M axis 12.5A
Alarm 368 369 Note Alarm 466 Note
A06B-6096-H204 Alarms Meaning and action to be taken
Alarm Meaning
1
Internal Fan Stopped (FAL)
2
Low control power voltage (LV5V)
5
Low DC link voltage (LVDC)
8
L-axis over-current (HCL)
9
M-axis over-current (HCM)
A
N-axis over-current (HCN)
b L
& M-axis over-current
C M
& N-axis over-current
d L
& N-axis over-current
E
L, M, N -axis over-current
8.
L-axis IPM alarm (IPML)
9.
M-axis IPM alarm (IPMM)
A.
N-axis IPM alarm (IPMN)
b. L
& M-axis IPM alarm
C. M
& N-axis IPM alarm
d. L
& N-axis IPM alarm
E.
L, M, N-axis IPM alarm
L FSSB
Disconnect COP10A
U FSSB
Disconnect COP10B

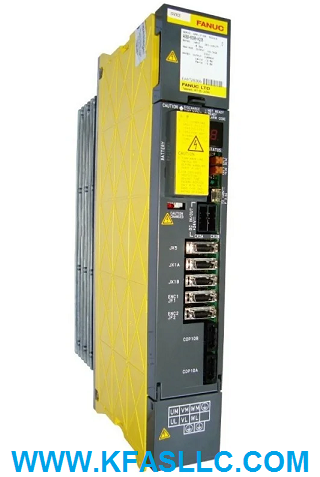

Fanuc Alpha Servo A06B-6096-H204 features
・high power and high acceleration due to optimum winding design and effective cooling structure.
・Increased torque at low speed range
・High precision and high resolution pulse coder feedback (1000000 pulses/revolution)
・Available with both 200V input and 400V input
・Compact size with latest intelligent Power Module
(IPM) technology.
・Utilize power source regeneration technology to return regeneration energy of the motor to a power source.
Compared with the resistor regeneration, power consumption is largely reduced.
The FANUC A06B-6096-H204 is a dependable and high-performance dual-axis Alpha Series servo amplifier designed to deliver precise, responsive motion control in a wide range of CNC machines. Ideal for automation and machine tool environments, this module ensures smooth operation, energy efficiency, and easy integration with FANUC CNC systems.
Fully tested and ready to ship, the A06B-6096-H204 is a reliable choice for maintenance, repair, or upgrade projects. It comes backed by a warranty and expert technical support to keep your production running at peak performance.
Key Features:
Model: A06B-6096-H204
- Dual-axis servo amplifier (Alpha Series)
- Fully tested and certified for performance
- Compact and robust design for easy installation
- Seamless compatibility with FANUC CNC systems
- Available new or refurbished (ask for details)
Typical Applications:
- CNC machining centers
- Lathes and milling machines
- Automated manufacturing systems
- FANUC drive replacement or retrofit projects
Why Choose Us?
- In-stock and ready for immediate shipment
- Competitive prices and quantity discounts
- All units tested and carries 12-month warranty
- Fast shipping
- Trusted supplier of genuine FANUC parts and support
Related Part NumbersKFASLLC kfasllc.com
A50L-0001-0304
A230-0526-X001/B
A230-0527-X001/A
A230-0527-X002
A20B-2100-0251 or A20B-2100-0541
A16B-2202-0770 or A16B-2203-0590
A90L-0001-0385
©
