SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME
$2,400 ($500
Exchange Credit Available)
Repair/ Return Option Available At $1180.

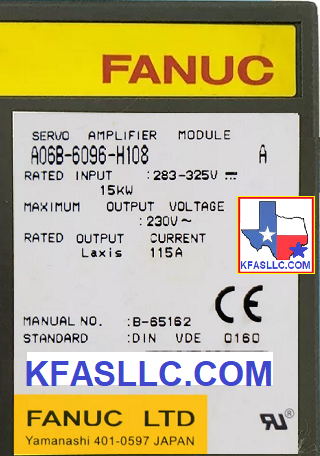

Dimension: (W x H x D): 150mm x 380mm x 307mm
Rated Input: 283-325VDC 15 kW
Rated Output Current: L axis 115 A

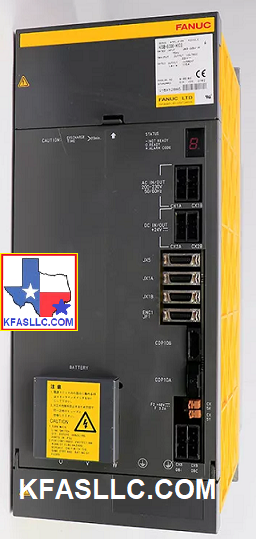

A06B-6096-H108 Alpha Series Spindle Amplifier Module is equipped with External cooling fan A90L-0001-0335/B and Internal cooling fan A90L-0001-0422
Fanuc A06B-6096-H108 is typically used with Fanuc motor a100/2000, a150/2000
Alarm 368 369 Note Alarm 466 Note
A06B-6096-H106 Alarms Meaning and action to be taken
Alarm Meaning
1
Internal Fan Stopped (FAL)
2
Low control power voltage (LV5V)
5
Low DC link voltage (LVDC)
8
L-axis over-current (HCL)
9
M-axis over-current (HCM)
A
N-axis over-current (HCN)
b L
& M-axis over-current
C M
& N-axis over-current
d L
& N-axis over-current
E
L, M, N -axis over-current
8.
L-axis IPM alarm (IPML)
9.
M-axis IPM alarm (IPMM)
A.
N-axis IPM alarm (IPMN)
b. L
& M-axis IPM alarm
C. M
& N-axis IPM alarm
d. L
& N-axis IPM alarm
E.
L, M, N-axis IPM alarm
L FSSB
Disconnect COP10A
U FSSB
Disconnect COP10B
A06B-6096-H108 is typically used with Fanuc 16iTA, 16iMA, 18iTA, 18iMA, 21iTA, and 21iMA controls. Typically found on machines such as Mori Seiki ZL-200
Fanuc Alpha Servo A06B-6096-H108 features
・high power and high acceleration due to optimum winding design and effective cooling structure.
・Increased torque at low speed range
・High precision and high resolution pulse coder feedback (1000000 pulses/revolution)
・Available with both 200V input and 400V input
・Compact size with latest intelligent Power Module
(IPM) technology.
・Utilize power source regeneration technology to return regeneration energy of the motor to a power source.
Compared with the resistor regeneration, power consumption is largely reduced.
