KFAS: Fanuc Parts & Repair

Repair/ Return Option Also Available At $950.

A06B-6096-H107  SVM1-240

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

$1,575 ($350 Exchange Credit Available)

Select Desire Shipping Option

UPS GND (INCLUDED) UPS COLLECT (Next Day Air) UPS COLLECT (2nd Day Air)

Your UPS Account# IF COLLECT

Dimensions (H 380 x W 150 x D 307 mm)

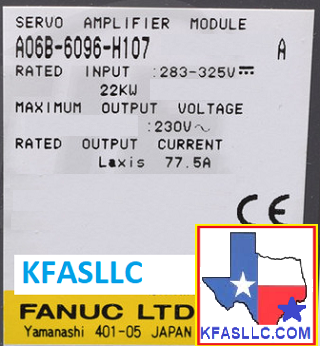

Rated Input: 283-325VDC 22 kW

Rated Output Current: L axis    77.5 A

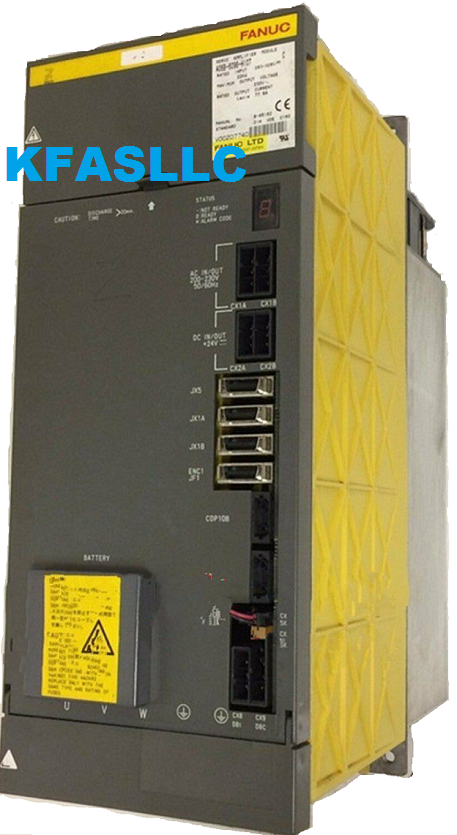

Fanuc A06B-6096-H107

A06B6096H107 B65165E Manual

Related technical information

Alarm 368 369 Note    Alarm 466 Note

A06B-6096-H107 Alarms Meaning and action to be taken

Alarm     Meaning
1             Internal Fan Stopped (FAL)
2             Low control power voltage (LV5V)
5             Low DC link voltage (LVDC)
8             L-axis over-current (HCL)
9             M-axis over-current (HCM)
A             N-axis over-current (HCN)
b             L & M-axis over-current
C             M & N-axis over-current
d             L & N-axis over-current
E             L, M, N -axis over-current
8.            L-axis IPM alarm (IPML)
9.            M-axis IPM alarm (IPMM)
A.            N-axis IPM alarm (IPMN)
b.            L & M-axis IPM alarm
C.            M & N-axis IPM alarm
d.            L & N-axis IPM alarm
E.             L, M, N-axis IPM alarm
L            FSSB Disconnect COP10A
U            FSSB Disconnect COP10B
