Repair/ Return Option Also Available At $700.



A06B-6096-H104  SVM1-40L

a06b-6096-h104

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

$1,200 ($450 Exchange Credit Available)

Select Desire Shipping Option
Your UPS Account#

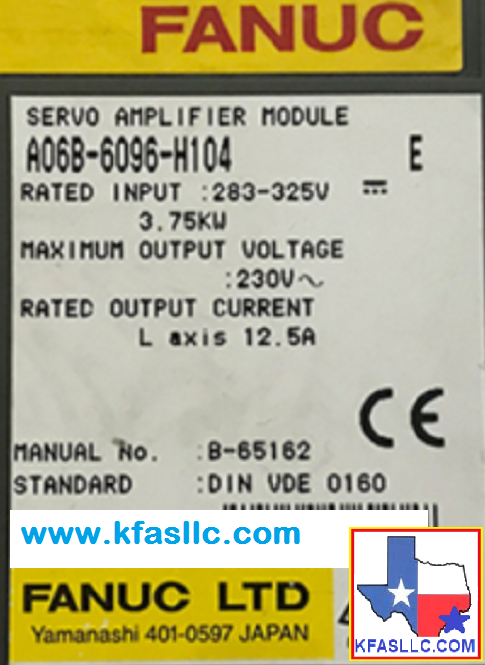

Dimensions (H 380 x W 60 x D 307 mm)

Rated Input: 283-325VDC 3.75 kW

Rated Output Current: L axis    12.5 A

Fanuc A06B-6096-H104 is typically used with Fanuc motor a12/2000, aC22/1500, a22/1500

A06B6096H104 B65165E Manual

Related technical information    Video

Alarm 368 369 Note    Alarm 466 Note

A06B-6096-H104 Alarms Meaning and action to be taken

Alarm     Meaning
1              Internal Fan Stopped (FAL)
2              Low control power voltage (LV5V)
5              Low DC link voltage (LVDC)
8              L-axis over-current (HCL)
9              M-axis over-current (HCM)
A              N-axis over-current (HCN)
b             L & M-axis over-current
C             M & N-axis over-current
d             L & N-axis over-current
E              L, M, N -axis over-current
8.             L-axis IPM alarm (IPML)
9.             M-axis IPM alarm (IPMM)
A.             N-axis IPM alarm (IPMN)
b.            L & M-axis IPM alarm
C.            M & N-axis IPM alarm
d.            L & N-axis IPM alarm
E.             L, M, N-axis IPM alarm
L            FSSB Disconnect COP10A
U            FSSB Disconnect COP10B

a06b-6079-h104

A06B-6096-H104 is typically used with Fanuc 16iTA, 16iMA, 18iTA, 18iMA, 21iTA, and 21iMA controls.
Typically found on machines such as Kuraki KBM-11X, Mori Seiki SL-250B

Fanuc Alpha Servo A06B-6096-H104 features
high power and high acceleration due to optimum winding design and effective cooling structure.
Increased torque at low speed range
High precision and high resolution pulse coder feedback (1000000 pulses/revolution)
Available with both 200V input and 400V input
Compact size with latest intelligent Power Module (IPM) technology.
Utilize power source regeneration technology to return regeneration energy of the motor to a power source.
Compared with the resistor regeneration, power consumption is largely reduced.

A06B-6096-H104 EA8421767
A06B-6096-H104 V00923400
