KFAS: Fanuc Parts & Repair

Repair/ Return Option Also Available At $700.

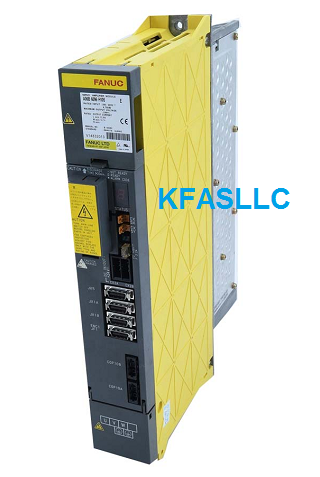

A06B-6096-H103  SVM1-40S

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

$1,200 ($450 Exchange Credit Available)

Select Desire Shipping Option

UPS GND (INCLUDED) UPS Collect (Next Day Air) UPS Collect (2nd Day Air)

Your UPS Account#

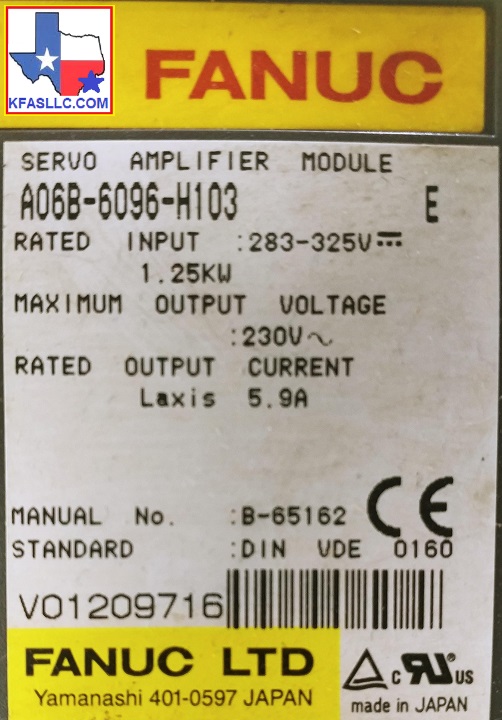

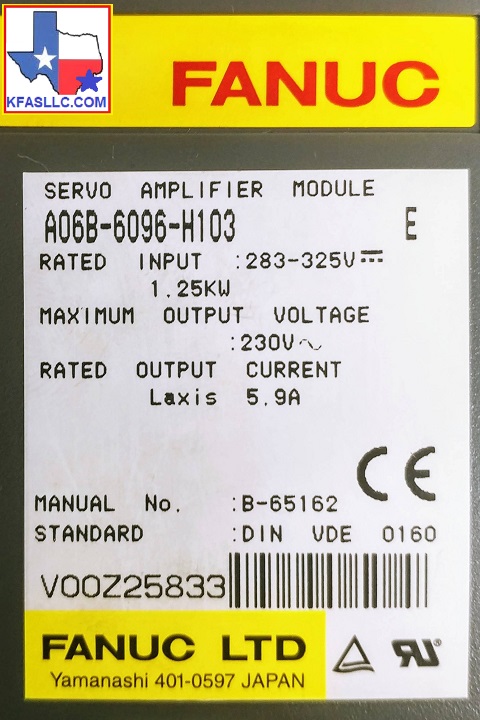

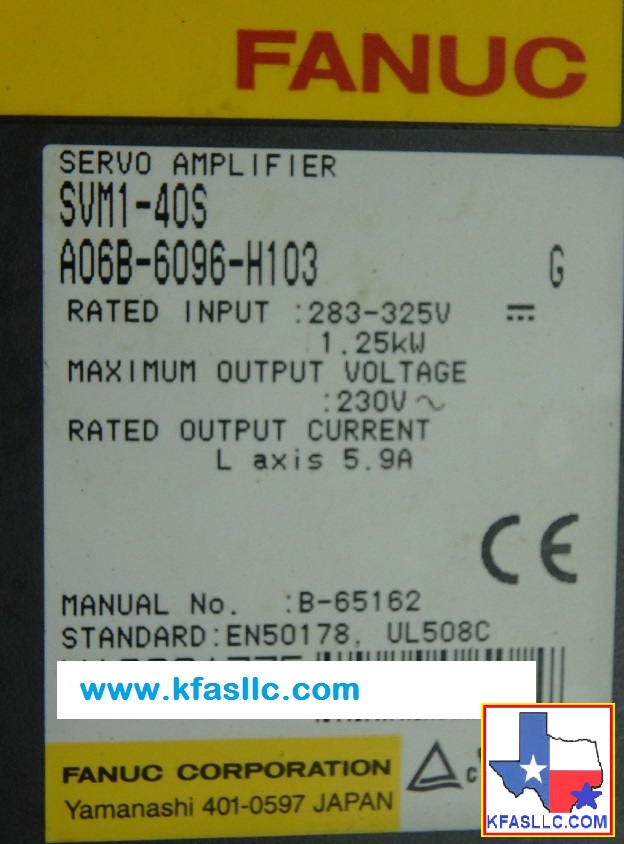

Dimensions (H 380 x W 60 x D 307 mm)

Rated Input: 283-325VDC 1.25 kW

Rated Output Current: L axis    5.9 A

Fanuc A06B-6096-H103 is typically used with Fanuc motor a3/3000, a6/2000, a22/1500

A06B6096H103 B65165E Manual

Related technical information    Video

Alarm 368 369 Note    Alarm 466 Note

A06B-6096-H103 Alarms Meaning and action to be taken

Alarm     Meaning
1              Internal Fan Stopped (FAL)
2              Low control power voltage (LV5V)
5              Low DC link voltage (LVDC)
8              L-axis over-current (HCL)
9              M-axis over-current (HCM)
A              N-axis over-current (HCN)
b             L & M-axis over-current
C             M & N-axis over-current
d             L & N-axis over-current
E              L, M, N -axis over-current
8.             L-axis IPM alarm (IPML)
9.             M-axis IPM alarm (IPMM)
A.             N-axis IPM alarm (IPMN)
b.            L & M-axis IPM alarm
C.            M & N-axis IPM alarm
d.            L & N-axis IPM alarm
E.             L, M, N-axis IPM alarm
L            FSSB Disconnect COP10A
U            FSSB Disconnect COP10B
