Fanuc A06B-6090-H006 replaces A06B-6066-H006

A06B-6090-H006 SVUC 1-80

A06B6066H006

$1,250 (Exchange Credit Available)

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

Select Desire Shipping Option
Your UPS Account# & Method

* $250 Credit available for the 6090 repair exchange. NO CREDIT for 6066 units.

Repair/ Return Option  for 6090-H006 Also Available At $950.

Rated Input: 200~230 VAC 15A at 200V

Rated Output Current: L axis    20 A

A06B6090H006 B65192E Manual

Related technical information

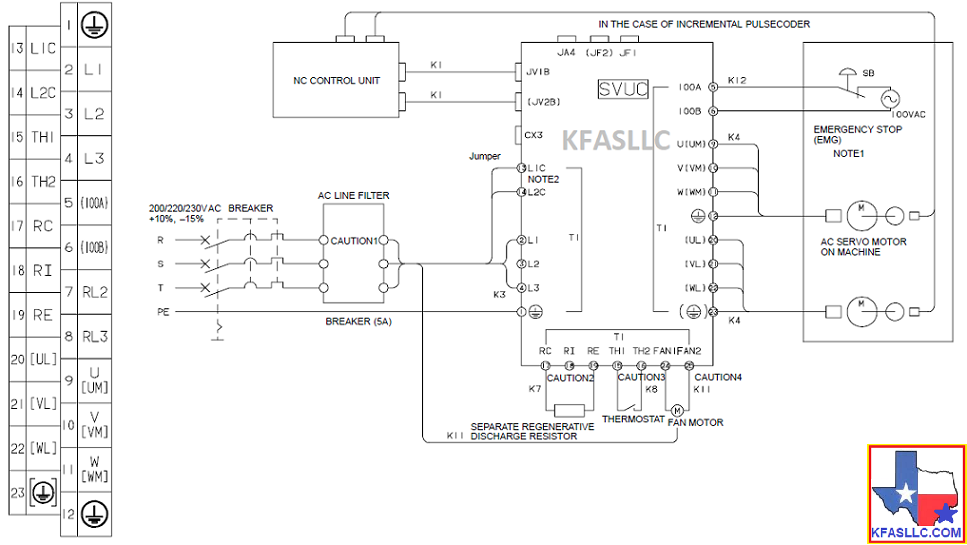

Installation Guide    Video-1    Video-2

a06b-6090-h006

a06b-6090-h006

a06b-6066-h006

A06b-6066-h006

A06B-6090-H006 Alarms Meaning and action to be taken

Alarm     Meaning
1            Over Voltage Alarm (HV)
2            Low Control Voltage Alarm (LV)
3            Low DC Link Voltage Alarm (LVDC)
4            Regenerative Control Circuit Alarm (DCSW)
5            Over Regenerative Discharge Alarm (DCOH)
7            Dynamic brake Circuit Failure Alarm (DBRLY)
8            L-Axis Over current Alarm (HCL)
9            M-Axis Over current Alarm (HCM)
8.           L-Axis IPM Alarm (IPML)
9.           M-Axis IPM Alarm (IPMM)
b            L & M Axes Over Current
b.           L & M Axes IPM Alarm

a06b-6096-h006

AL-2 or Alarm 2 Troubleshooting Steps for A06B-6066-H006
If the Alarm 2 occurs at power on (as opposed to while the machine is in operation) and the alarm can be reset after warm-up, the problem is most likely the servo amplifier.

Related Part NumbersKFASLLC kfasllc.com
A50L-0001-0267/N
A20B-2002-0031
A20B-2002-0047
A230-0450-T102
