KFAS: Fanuc Parts & Repair

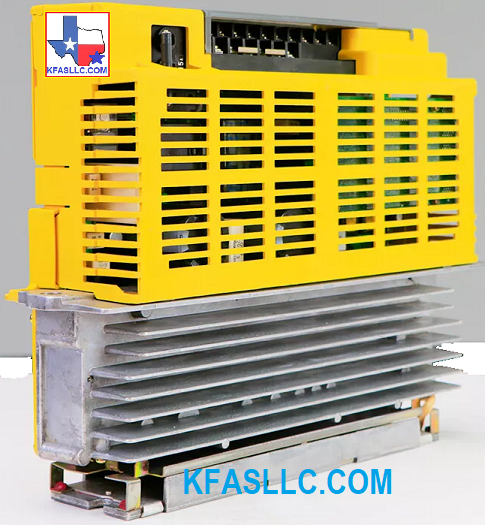

A06B-6089-H105 SVUC 1-80, 80A

Repair/ Return Option Available At $700.

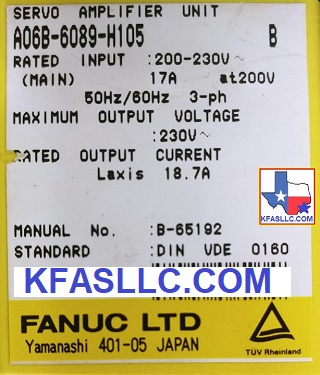

Rated Input: 200~230 VAC 17.4A at 200V

Rated Output Current: L axis    18.7 A

A06B6089H105 B65192E Manual

Related technical information

Installation Guide

A06B-6089-H105 Alarms Meaning and action to be taken

Alarm     Meaning
1            Over Voltage Alarm (HV)
2            Low Control Voltage Alarm (LV)
3            Low DC Link Voltage Alarm (LVDC)
4            Regenerative Control Circuit Alarm (DCSW)
5            Over Regenerative Discharge Alarm (DCOH)
7            Dynamic brake Circuit Failure Alarm (DBRLY)
8            L-Axis Over current Alarm (HCL)
9            M-Axis Over current Alarm (HCM)
8.           L-Axis IPM Alarm (IPML)
9.           M-Axis IPM Alarm (IPMM)
b            L & M Axes Over Current
b.           L & M Axes IPM Alarm

div class="image-slideshow">

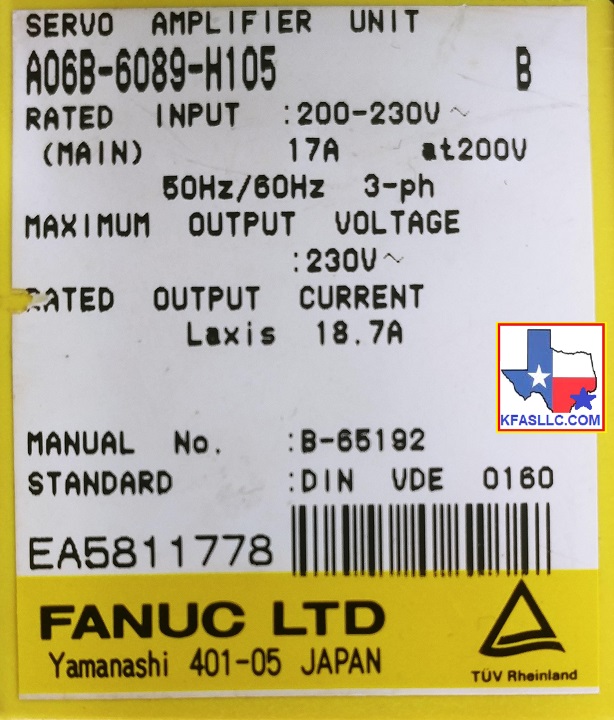

A06B-6089-H105 EA5811778

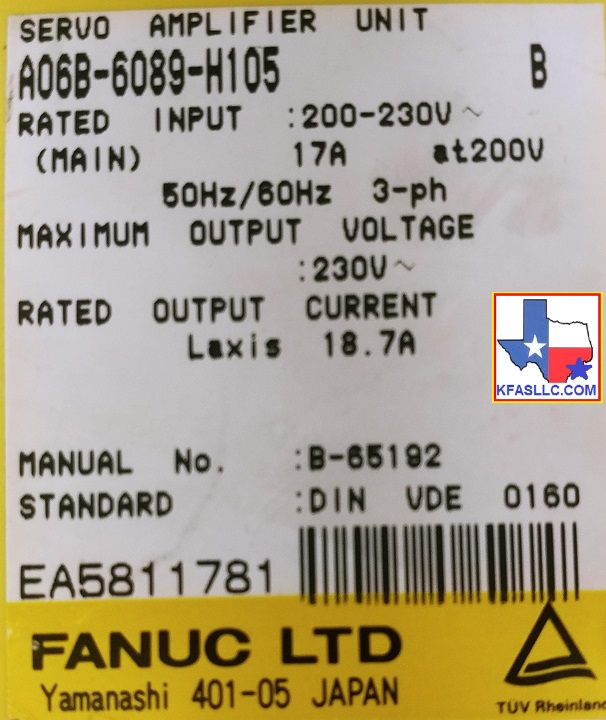

A06B-6089-H105 EA5811781

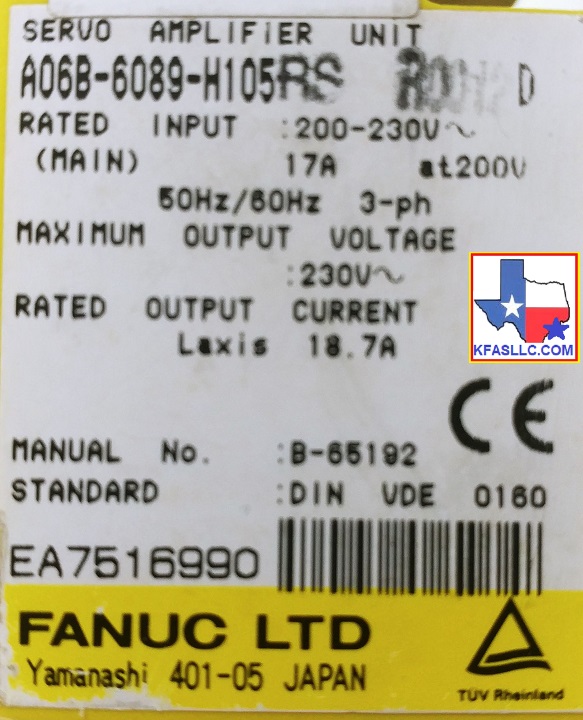

A06B-6089-H105 EA7516990

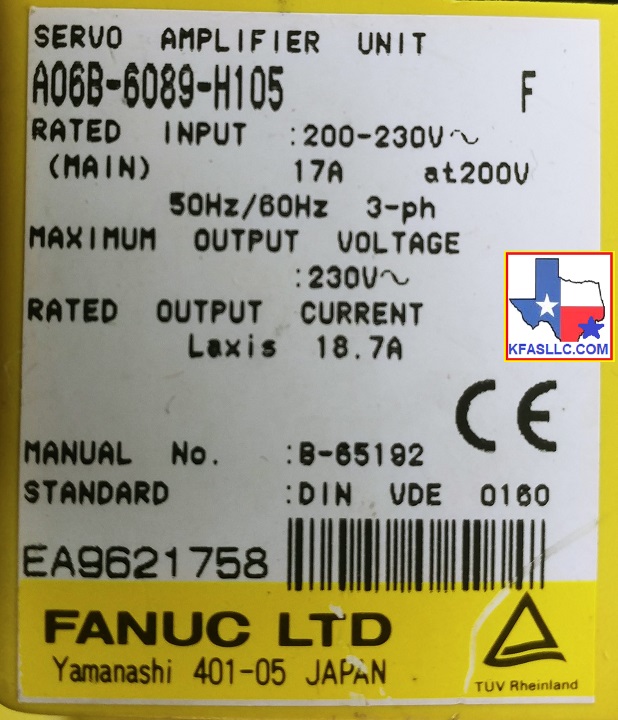

A06B-6089-H105 EA9621758
