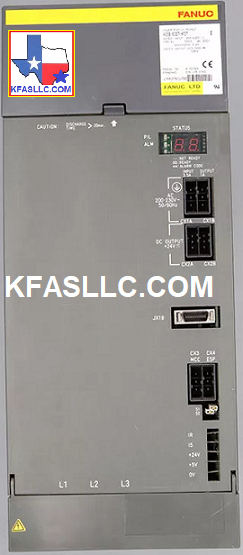

A06B-6087-H126  PSM-26

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

$1,525 ($400 Exchange Credit Available)

Select Desire Shipping Option
Your UPS Account#

Rated INPUT: 200-230VAC  106A@200V  50Hz/60Hz  3-phase

 Rated OUTPUT: 283-325VDC  29.8kW

Weight 10.7kg

Dimension: (W x H x D): 150mm x 380mm x 307mm

A06B6087H126 B65162E Manual

Related technical information  View Picture

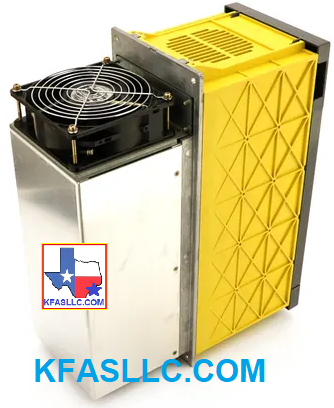

 A06B-6087-H126 Alpha Series Power Supply Module is equipped with External cooling fan A90L-0001-0335/B and Internal cooling fan A90L-0001-0422

A06B-6087-H126 Alarms Meaning and action to be taken
AL-01 : Overcurrent in the Main Power Module.
AL-02 : Cooling Fan Stopped.
AL-03 : The temperature of the main circuit heat sink has risen abnormally.

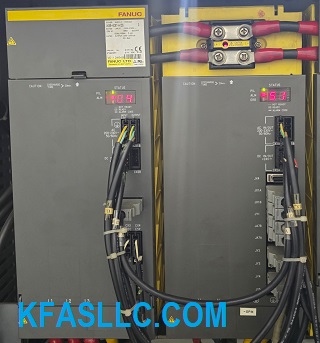

AL-04 : The DC Voltage has dropped.
AL-05 : The main Capacitor was not recharged within the specified time.
AL-06 : The Input Power Supply is Abnormal.
AL-07 : In the main circuit the DC Voltage is abnormally high.

A06B-6087-H126 is typically used with Fanuc 16MC, 16MA, 18TA, 18MC, 21TB, 16TB, 18TB, and 21MB controls.
Typically found on machines such as Dainichi F25M

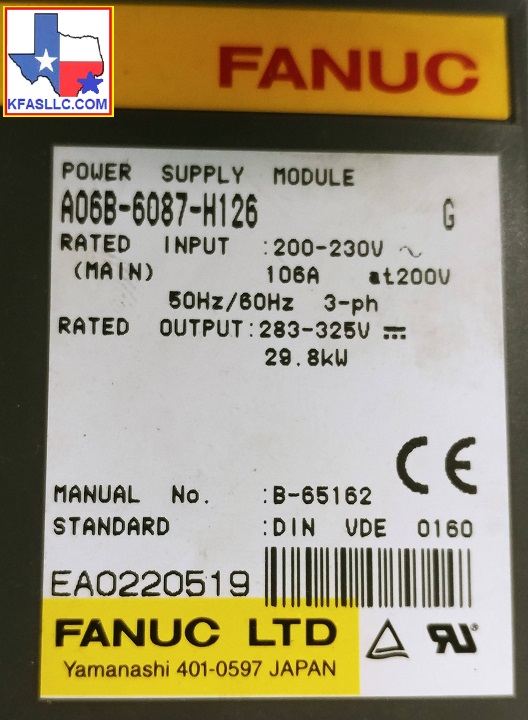

A06B-6087-H126 EA0220519

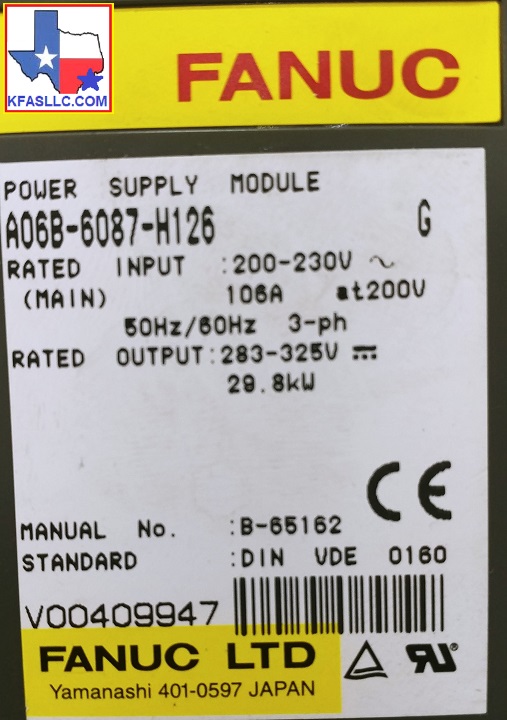

A06B-6087-H126 V00409947

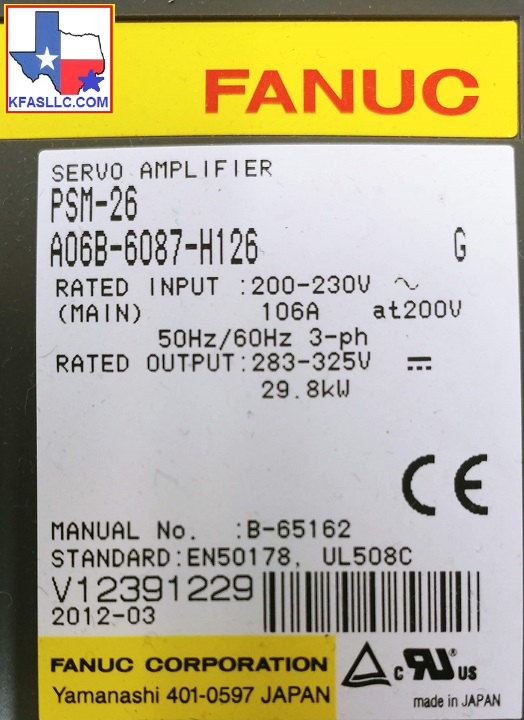

A06B-6087-H126 V12391229

Related Part NumbersKFASLLC kfasllc.com

A16B-2202-0421

A20B-1006-0471

Recommended AC Reactor for A06B-6087-H126 is A81L-0001-0120

A06B-6087-H126 is also compatible with A06B-6087-H126#EM and A06B-6087-H126#RS
