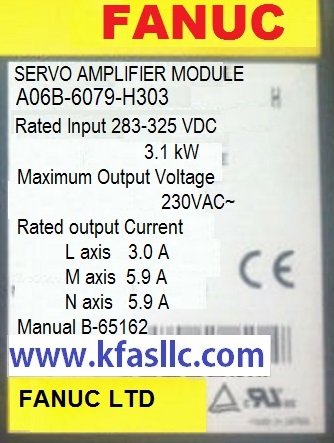

A06B-6079-H303  SVM3-12/20/20

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

$2,100 ($450 Exchange Credit Available)

Repair/ Return Option Also Available At $1500.

Dimensions (H 380 x W 90 x D 307 mm)

Rated Input: 283-325VDC 3.1 kW

Rated Output Current: L axis 3.0A, M axis 5.9A, N axis 5.9A

A06B6079H303 B65165E Manual

Related technical information

A06B-6079-H303 Alarms Meaning and action to be taken

Alarm     Meaning
1              Internal Fan Stopped (FAL)
2              Low control power voltage (LV5V)
5              Low DC link voltage (LVDC)
8              L-axis over-current (HCL)
9              M-axis over-current (HCM)
A              N-axis over-current (HCN)
b             L & M-axis over-current
C             M & N-axis over-current
d             L & N-axis over-current
E              L, M, N -axis over-current
8.             L-axis IPM alarm (IPML)
9.             M-axis IPM alarm (IPMM)
A.             N-axis IPM alarm (IPMN)
b.            L & M-axis IPM alarm
C.            M & N-axis IPM alarm
d.            L & N-axis IPM alarm
E.             L, M, N-axis IPM alarm

Related Part NumbersKFASLLC kfasllc.com

A50L-0001-0304 and A50L-0001-0273/A
A20B-2001-0940A16B-2202-0782
A90L-0001-0385
