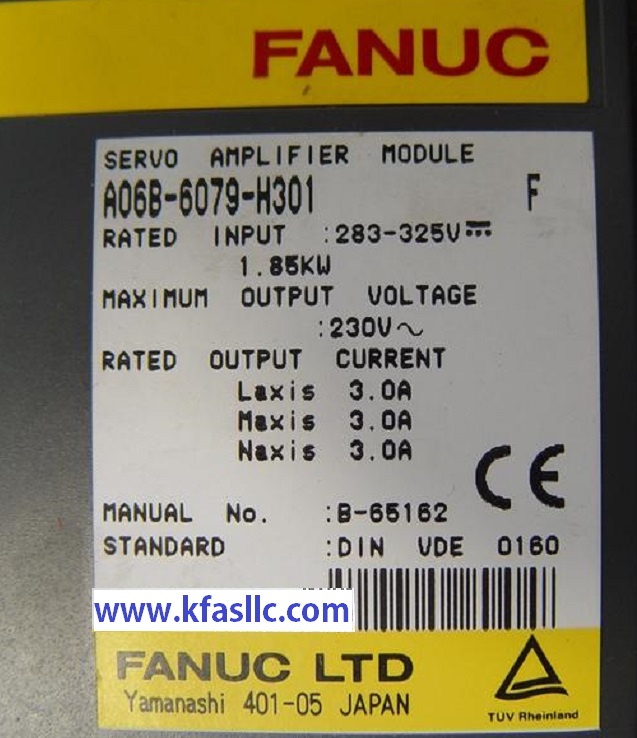

Dimensions (H 380 x W 90 x D 307 mm)
Rated Input: 283-325VDC 1.85 kW
Rated Output Current: L axis 3.0A, M axis 3.0A, N axis 3.0A
A06B-6079-H301 Alarms Meaning and action to be taken
Alarm Meaning
1
Internal Fan Stopped (FAL)
2
Low control power voltage (LV5V)
5
Low DC link voltage (LVDC)
8
L-axis over-current (HCL)
9
M-axis over-current (HCM)
A
N-axis over-current (HCN)
b L
& M-axis over-current
C M
& N-axis over-current
d L
& N-axis over-current
E
L, M, N -axis over-current
8.
L-axis IPM alarm (IPML)
9.
M-axis IPM alarm (IPMM)
A.
N-axis IPM alarm (IPMN)
b. L
& M-axis IPM alarm
C. M
& N-axis IPM alarm
d. L
& N-axis IPM alarm
E.
L, M, N-axis IPM alarm
Fanuc Servo Amplifier A06B-6079-H301 Alarm 8, Alarm 9, or Alarm A indicates high current or short circuit in the servo amplifier or motor.
Troubleshooting Steps for Alarm-8, Alarm-9, or
Alarm-A
(1) Power off the machine. Remove the power line wires from the servo amplifier
terminals, and be sure to place them so that there is no chance or shorting out
something in the electrical cabinet. Power ON the machine/ control and release
an emergency stop. If an abnormal current alarm occurs, go to (3). If not, go to
(2).
(2) Check for insulation between PE and each of the removed power wires U, V,
and W. Good/ acceptable insulation is in the order of several HUNDRED MEGA
OHMS or higher.
If not, disconnect the power wires from the motor. Then check for
insulation again between PE and each of the U, V, and W terminals on the motor
itself. If there is a short circuit between PE and U, V, or W of the
motor, replace the motor. If motor insulation is tested good, replace the motor
power wires.
Related Part NumbersKFASLLC kfasllc.com
A50L-0001-0304
A20B-2001-0940A16B-2202-0780
A90L-0001-0423
©
