KFAS: Fanuc Parts & Repair

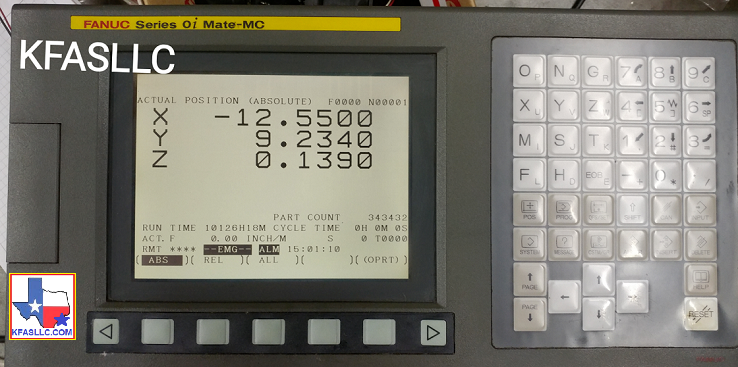

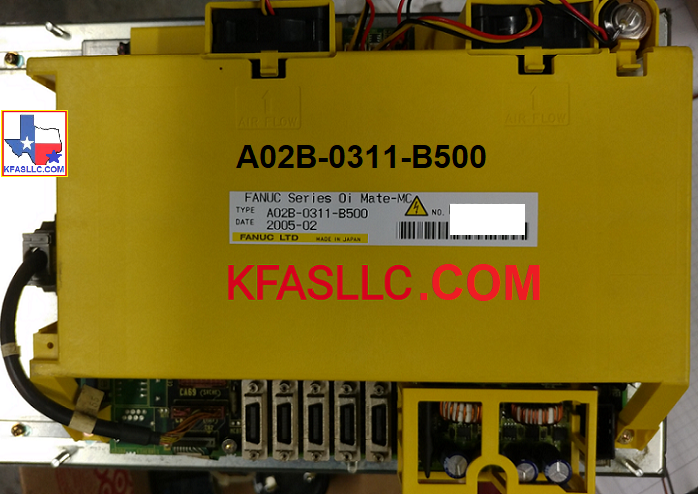

Fanuc 0i Mate-MC Control Package A02B-0311-B500

The Fanuc 0i control is a Mid 2000 era successor to the popular Fanuc 0 series. It is compatible with Fanuc Alpha-i and Beta-i series drives. The 0i control offers a number of notable features, including:

• Up to 4 programmable axes and 2 spindles
• A 32-bit main processor for fast performance
• Easy data backup and restore via PCMCIA memory card
• A wide variety of displays available, from 7.2-inch monochrome LCD to 10.4-inch color LCD

The Fanuc 0i control is a versatile and powerful option for a wide range of CNC applications. It is ideal for high-speed machining, complex 3D contouring, and demanding production environments.

This control package consists
A20B-8101-0285
A20B-3300-0291
A20B-3300-0283
A20B-3900-0163
A20B-3300-0392
A20B-8101-0180

RECONDITIONED AND TESTED
$2,775 (UPS GND Shipping Included)

Fanuc CNC controls are custom configured by each machine tool builder to suit their particular needs. Therefore, you can not order a surplus control and simply "drop in" to replace your non-functioning control no matter how they may look similar. KFASLLC can assist you with troubleshooting, repairing, and replacing necessary parts on your control.

Ideal purchase for this control package will be for your mission critical machine.

0iC Manuals
0i–C/0i Mate–C DESCRIPTIONS B–64112EN

0i–C/0i Mate–C CONNECTION (HARDWARE) B–64113EN

0i–C/0i Mate–C CONNECTION (FUNCTION) B–64113EN–1

0i–TC OPERATOR’S MANUAL B–64114EN

0i–MC OPERATOR’S MANUAL B–64124EN

0i Mate–TC OPERATOR’S MANUAL B–64134EN

0i Mate–MC OPERATOR’S MANUAL B–64144EN

0i–C/0i Mate–C MAINTENANCE B–64115EN

0i–C/0i Mate–C PARAMETER MANUAL B–64120EN
