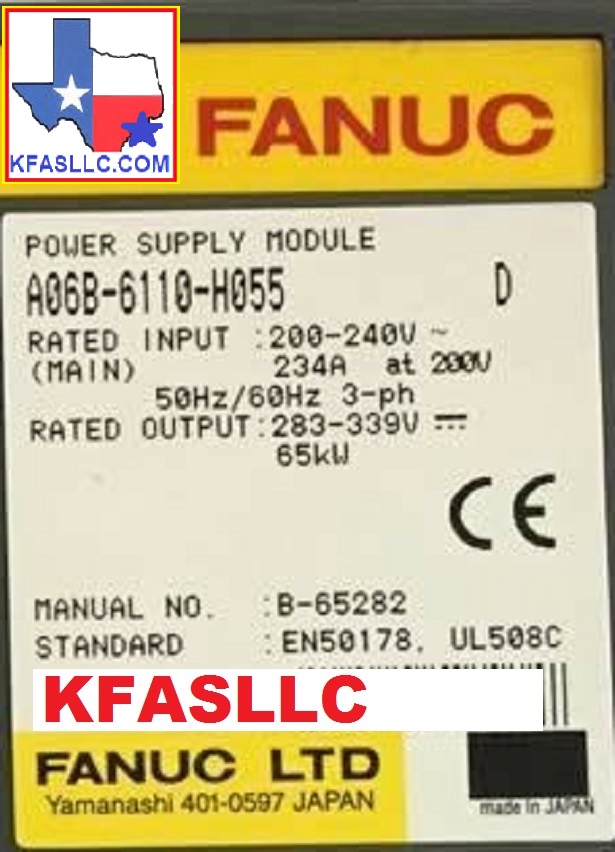

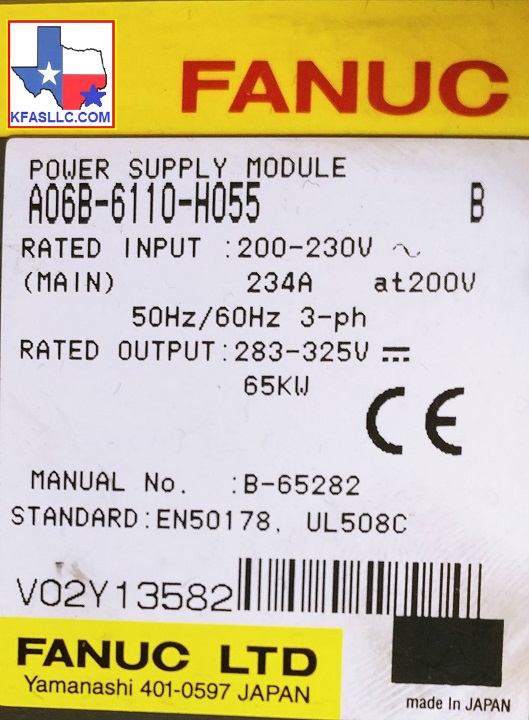

A06B-6110-H055  PSM-55i

Rated INPUT: 200-230VAC  150A@200V  50Hz/60Hz  3-phase

 Rated OUTPUT: 283-325VDC  43kW

A06B6110H055 B65282E Manual

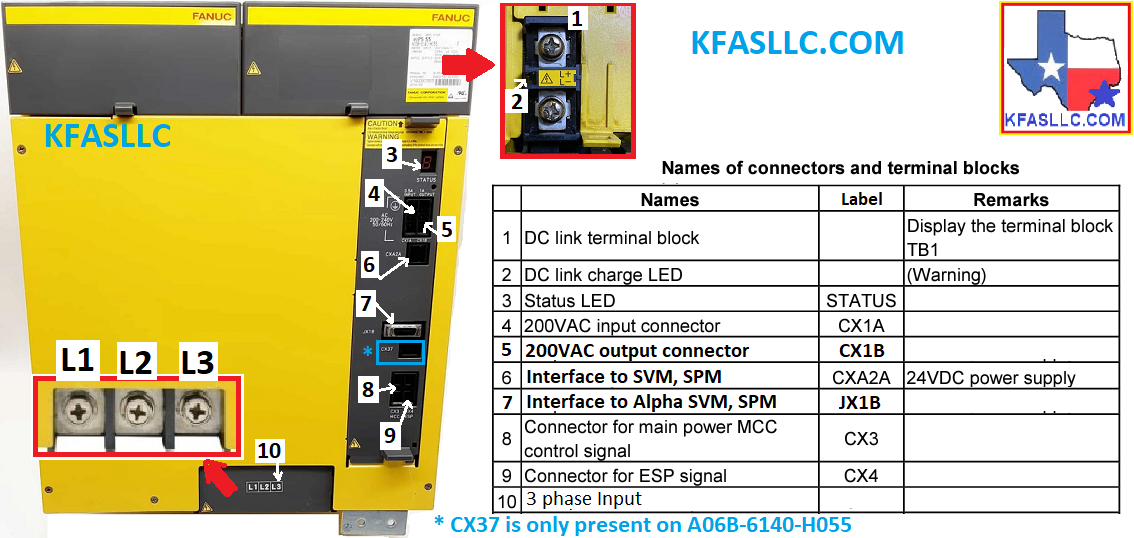

Related technical information  View Picture

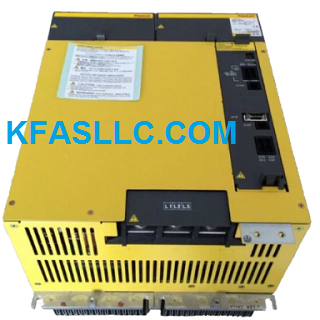

 A06B-6110-H055 Alpha-i Power Supply Module uses internal cooling fan A90L-0001-0441#39 and external cooling fan A50L-0001-0509

A06B-6110-H055 Alarms Meaning and action to be taken
AL-01 : Overcurrent in the Main Power Module.
AL-02 : Cooling Fan Stopped.
AL-03 : The temperature of the main circuit heat sink has risen abnormally.
AL-04 : The DC Voltage has dropped.
AL-05 : The main Capacitor was not recharged within the specified time.
AL-06 : The Input Power Supply is Abnormal.
AL-07 : In the main circuit the DC Voltage is abnormally high.
AL-A : External cooling fan (located on heat sink) has stopped
AL-E : The Input Power Supply is Abnormal (open phase)
