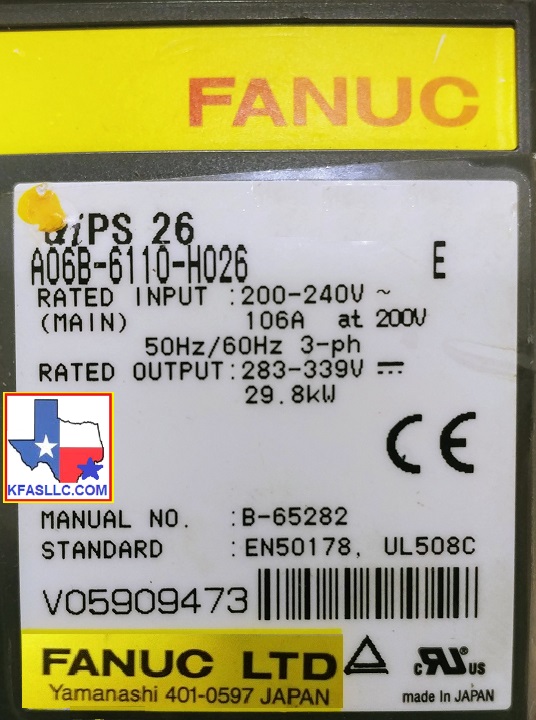

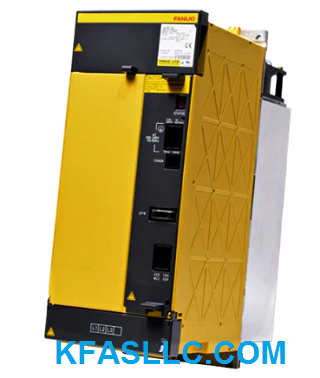

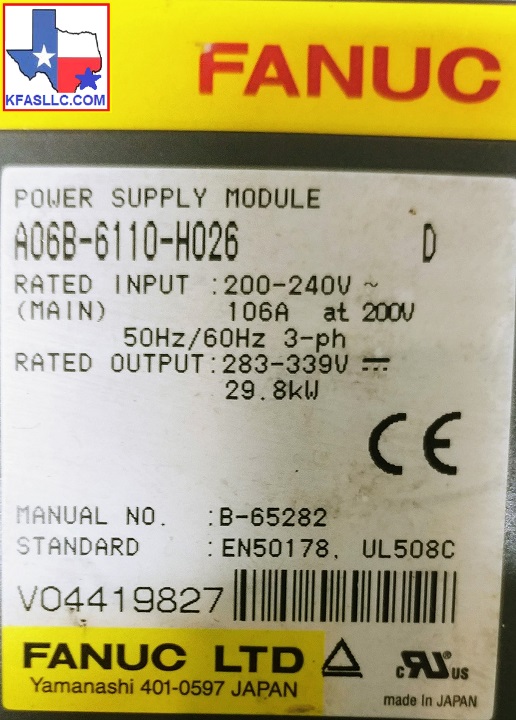

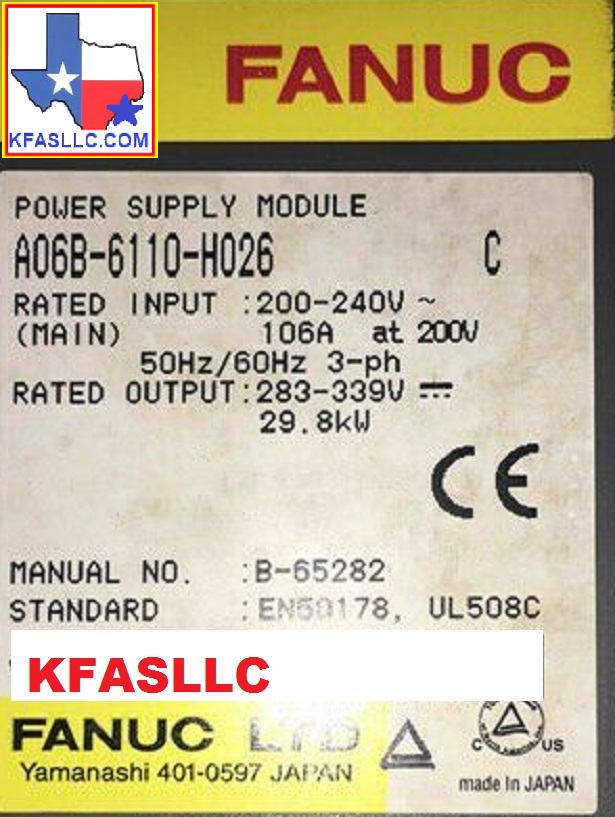

A06B-6110-H026  PSM-26i

Rated INPUT: 200-230VAC  106A@200V  50Hz/60Hz  3-phase

 Rated OUTPUT: 283-325VDC  29.8kW

A06B6110H026 B65282E Manual

Related technical information  View Picture

 A06B-6110-H026 Alpha-i Power Supply Module uses internal cooling fan A90L-0001-0441#39 and external cooling fan A50L-0001-0509

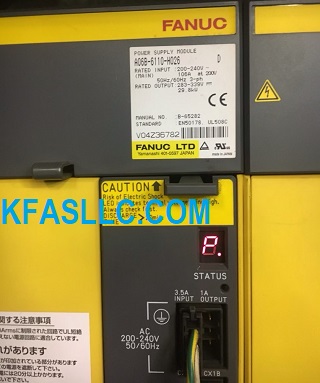

A06B-6110-H026 Alarms Meaning and action to be taken
AL-01 : Overcurrent in the Main Power Module.
AL-02 : Cooling Fan Stopped.
AL-03 : The temperature of the main circuit heat sink has risen abnormally.

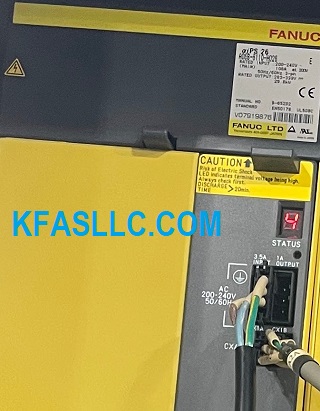

AL-04 : The DC Voltage has dropped.
AL-05 : The main Capacitor was not recharged within the specified time.
AL-06 : The Input Power Supply is Abnormal.
AL-07 : In the main circuit the DC Voltage is abnormally high.
AL-A : External cooling fan (located on heat sink) has stopped
AL-E : The Input Power Supply is Abnormal (open phase)

Related Part NumbersKFASLLC kfasllc.com

A20B-2100-0761

A20B-2100-0762

A20B-2100-0391

A50L-0001-0342

A16B-2203-0630

A50L-5000-0063
