A06B-6102-H222  SPM-22
A06B-6102-H222#H520

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

$1,750 ($500 Exchange Credit Available)

Select Desire Shipping Option
Your UPS Account# IF COLLECT

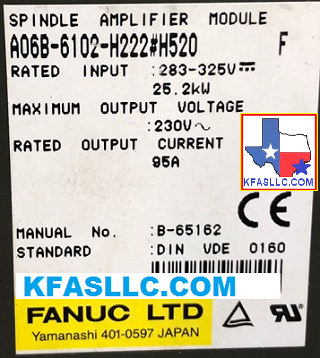

Rated INPUT: 283-325VDC  25.2kW

Maximum OUTPUT: 230VAC  95A

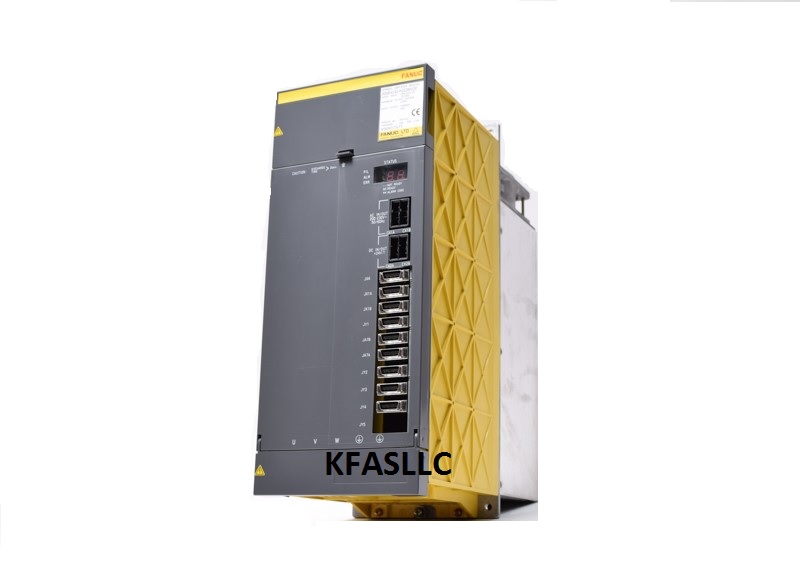

Spindle Amplifier Module A06B-6102-H222#H520 is used with spindle motor Alpha15, Alpha18, AlphaP22 and AlphaP30

Type-4 Alpha Sensor Cs Contour Control

Dimension: (W x H x D): 150mm x 380mm x 307mm

A06B6102H222 B65162E Manual

Related technical information  View Picture

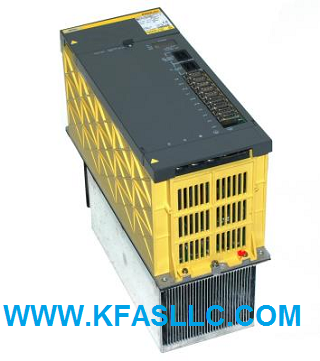

A06B-6102-H222 Alpha Series Spindle Amplifier Module is equipped with External cooling fan A90L-0001-0335/B and Internal cooling fan A90L-0001-0422

A06B-6102-H222 Alarms Meaning and action to be taken
Alarm Fault
–
Not Ready(Not an alarm)
0
Control Ready(Not an alarm)
1
Motor overheat
2
Excessive Speed Error
3
Fuse on DC Link Blown(SPM is faulty)
4
Input Fuse/Power Fault(PSM is faulty)
5
Power Supply Fuse Blown
7
Overspeed
8
High Voltage Power Input
9
Overheat Main CIrcuit(SPM is faulty)
10
Low Voltage Input Power(Check input power)
11
Overvoltage in Power Circuit(PSM is faulty)
12         Overcurrent in Power Circuit
13         Data Memory Fault CPU(SPM is faulty)
15         SP Switch Control Alarm
16         RAM Fault(SPM is faulty)
18         Sumcheck Error PGM Data
19         EX Offset Current U
20         EX Offset Current V
24
Serial Transfer Error(normal if CNC is OFF)
25
Serial Transfer Stop
26
Disconnect C Velocity Detect
27
Pulsecoder Disconnected
28
Disconnect C-Pos Detect
29
Short time overload
30
Overcurrent(PSM is faulty)
31
Motor Lock or V-Sig Lost
32
Ram Fault Serial LSI
33
Shortage Power Charge(PSM is faulty)
34
Parameter Setting Error
35
Ex Setting Gear Ratio
36
Overflow Error Counter
37
Speed Detect Par. Error
39
1-Rot Cs Signal Detect
40
No 1 Rot Cs Signal Detect
41
1-Rot Position Coder Error
42
No 1 Rot. Position Coder Detect
43
Disconnect PC for Dif SP Mod
44
Control Circuit (AD) Error
46
Screw 1-Rot Position Coder Alarm
47
Position Coder Signal Abnormal
49
High Conv. Diff. Speed
50
Spindle Control Over Speed
51
Low Voltage DC Link(PSM is faulty)
52
ITP Signal Abnormal 1
53
ITP Signal Abnormal 2
56
Inner Cooling Fan Stop
57
Ex Deceleration Power
58
Overload in PSM(PSM is faulty)
59
Cooling Fan Stopped in PSM(PSM is faulty)
66
Communication Alarm between Spindle and Amplifier
69
Safety Speed Exceeded
70
Abnormal Axis Data
71
Abnormal Safety Parameter
72
Motor Speed Mismatch
73
Motor Sensor Disconnected
74
CPU Test Alarm
75
CRC Test Alarm
76
Safety Function Not Executed
77
Axis Number Mismatch
78
Safety Parameter Mismatch
79
Abnormal Initial Test Operation
81
Motor Sensor one-rotation signal detection error
82
Motor Sensor one-rotation signal not detected
83
Motor Sensor Signal Error
84
Spindle Sensor Disconnected
85
Spindle Sensor one-rotation signal detection error
86
Spindle Sensor one-rotation signal not detected
87
Spindle Sensor Signal Error
88
Cooling Fan on the radiator stopped(SPM is faulty)

a06b6102h222h520

A06B-6102-H222#H520 is typically used with Fanuc 16iTA, 16iMA, 18iTA, 18iMA, 21iTA, and 21iMA controls.
Typically found on machines such as Kuraki KBM-11X, Ikegai Genesis 1210

A06B-6102-H222 Alarm 12 and Alarm 03 Troubleshooting Steps
(1) Power off the machine. Remove the power line wires from the spindle amplifier terminals, and be sure to place them so that there is no chance or shorting out something in the electrical cabinet. Power ON the machine/ control and command the spindle.
If Alarm 12 occurs, go to (3). If not, go to (2).

(2) Check for insulation between PE and each of the removed power wires U, V, and W.  Good/ acceptable insulation is in the order of several HUNDRED MEGA OHMS or higher.
If not, disconnect the power wires from the motor.  Then check for insulation again between PE and each of the U, V, and W terminals on the motor itself. If there is a short circuit between PE and  U, V, or W of the motor, replace the motor.
If motor insulation is tested good, replace the motor power wires.

Related Part NumbersKFASLLC kfasllc.com

A20B-1006-0487
A20B-1006-0481
A20B-2902-0390
A16B-2203-0502
