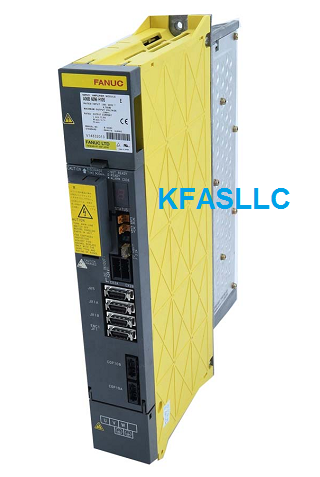

A06B-6096-H105  SVM1-80

Dimensions (H 380 x W 60 x D 307 mm)

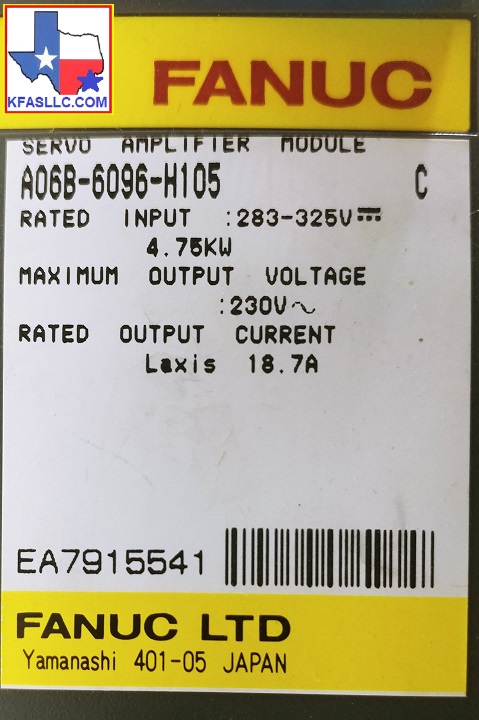

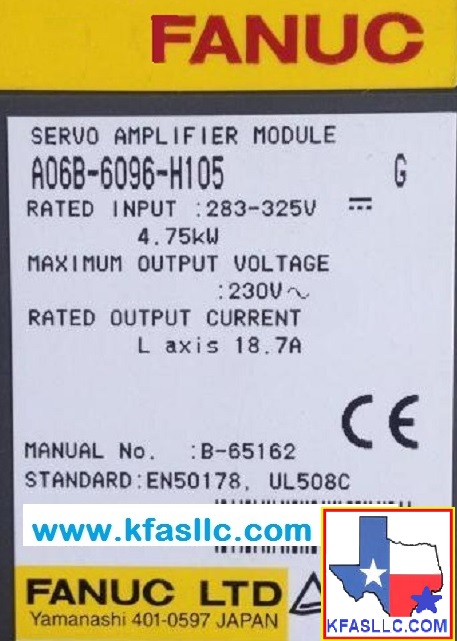

Rated Input: 283-325VDC 4.75 kW

Rated Output Current: L axis    18.7 A

Fanuc A06B-6096-H105 is typically used with Fanuc motor a6/3000, a22/2000, aL9/3000, a30/1200

A06B6096H105 B65165E Manual

Related technical information

A06B-6096-H105 Alarms Meaning and action to be taken

Alarm     Meaning
1              Internal Fan Stopped (FAL)
2              Low control power voltage (LV5V)
5              Low DC link voltage (LVDC)
8              L-axis over-current (HCL)
9              M-axis over-current (HCM)
A              N-axis over-current (HCN)
b             L & M-axis over-current
C             M & N-axis over-current
d             L & N-axis over-current
E              L, M, N -axis over-current
8.             L-axis IPM alarm (IPML)
9.             M-axis IPM alarm (IPMM)
A.             N-axis IPM alarm (IPMN)
b.            L & M-axis IPM alarm
C.            M & N-axis IPM alarm
d.            L & N-axis IPM alarm
E.             L, M, N-axis IPM alarm
L            FSSB Disconnect COP10A
U            FSSB Disconnect COP10B

Related Part NumbersKFASLLC kfasllc.com
A50L-0001-0305
A230-0526-X001/B
A230-0527-X001/A
A230-0527-X002
A20B-2100-0250 or A20B-2100-0540
A16B-2202-0762 or A16B-2203-0452
A90L-0001-0385
